Sida 1/1
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
5. AC input (100~240V/AC, 50~60Hz), for a max. power consumption of 400W.

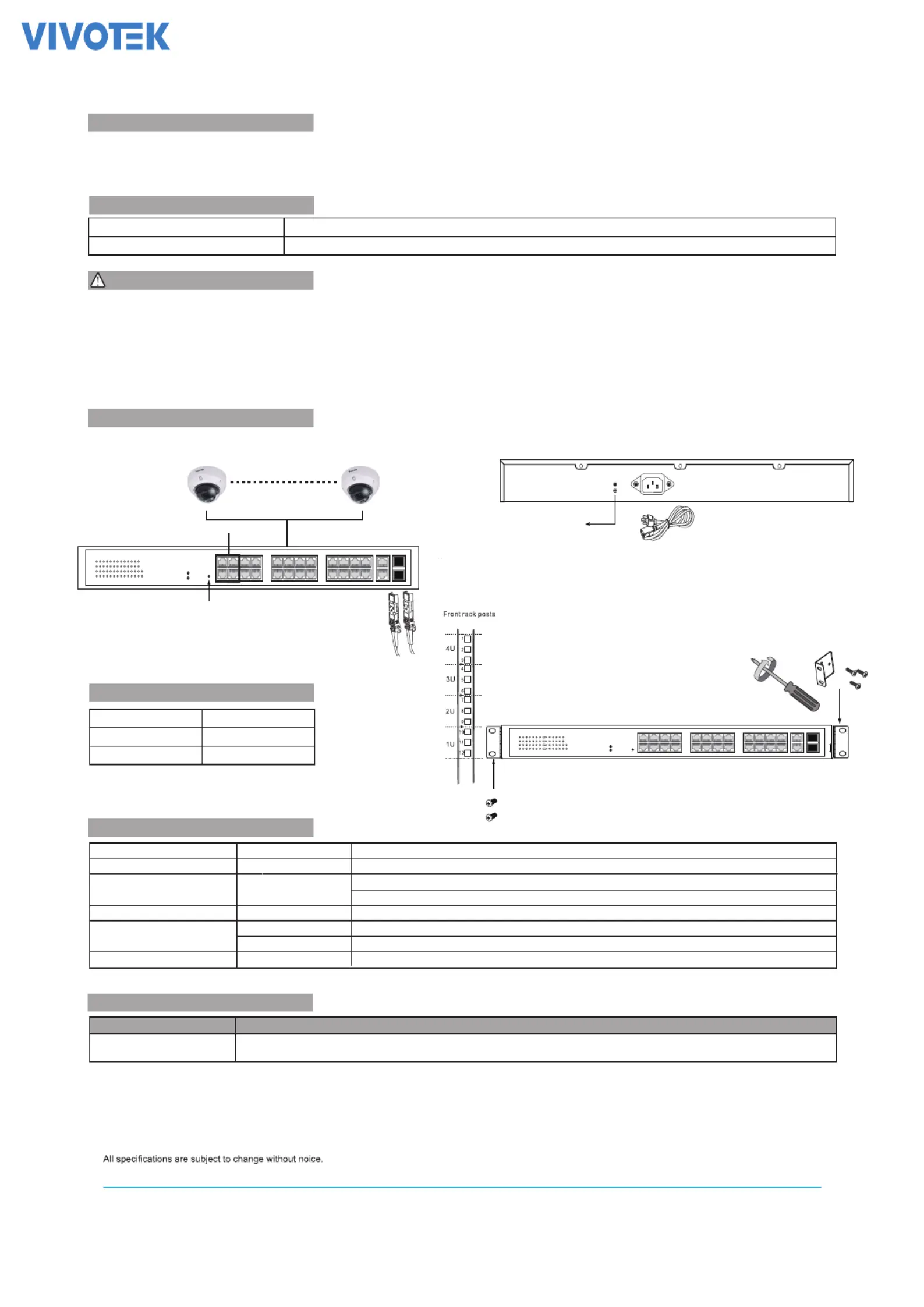

AW-GE Lite Managed PoE Switch L-285A-380
Quick Installation Guide
The AW-GEL-285A-380 is a 24 port 10/100/1000BaseT PoE switch capable of feeding 802.3bt 90W (port 1-4) lite managed
and 15.4W/30W (port 5-24) to Power over Ethernet (PoE) devices. It comes with 2x GbE UTP ports + 2x GbE SFP ports.
The switch is capable of a total of 380W power budget.
IMPORTANT:
INTRODUCTION
LED DEFINITIONS
CONNECTION
* 1x PoE switch * 1x Quick Installation Guide
* 1x rack mount bracket kit * 1x power cord (type by the shipped-to area)
PACKAGE CONTENTS
Front Panel Rear Panel
Copyright © 2023 VIVOTEK INC. All rights reserved.
IP Address DHCP client
User Name admin
Password admin
DEFAULTS
Reset Button
PWD Green ON Power is on and normal
Green ON The switch is working properly
Link/Act Green ON Fast Blink: port is connected with data transmission
PoE ports Amber ON The PoE port is connected with a PD and providing PoE power
RJ45 uplink ports 25, 26 Green ON Port is enabled and link established with a device at the 1000Mbps speed
100M Green ON Port is transmitting and receiving data at the 100Mbps speed
Green ON Port is enabled and link established with a device at the 1000Mbps speed
Task Procedure
Press and hold the reset button10 ~ 15 seconds till all LEDs are off then releaseRestore factory defaults
SYS
Slow Blink: port is connected without data transmission
SFP uplink ports 27, 28
Reset Button
VIVOTEK INC.
6 No 9 L en Rd Chung-Ho, New Taipei ity, 23 Taiwan, R. C.F, .1 2, ien-Ch g ., C 5, O.
| | +886-2-82455282 F +886-2- 5 32824 55 |E sales@ vivot ek. co m
VIVOT USA NC.EK , I
20 Ringwood enue, San Jose C 513150 Av , A 9
|T: 408- 3-868677 |F: 408- 3-8298 77 | salesusa@vivotek m.co
VIVOT EuropeEK
Zandstee 1 2 2 Hoofddorp elta Electronicsn 5, 13 MZ D
T: 1 (0)20 0 8 saleseurope@vivotek.com+3 8 0 3 17 E:
::E:T:
* Please visit VIVOTEK website to download the search tool Shepherd
to find the switch
802.3 bt 90W
4. Make sure to use Cat. 6 AWG 23 or better UTP/STP cable when it’s longer than 100m.
Low quality cables will seriously limit the cabling distance.
The switch already comes with lightning protection mechanism.
You can also ground the switch through the PE (Protecting
Earth) cable of
AC cord or with Ground Cable.
Grounding Column
