LC
VDC: 50V ~ 56V
AC-to-DC power
100~240 VAC IN
(DO NOT connect external power
supply to V2!)
POWER Green ON Power is on and normal.
Fiber Link/
Act
Green ON Fiber is attached.
Green Flashing Data is being transmitted / received.
LAN port
Green
Green ON TX link is detected.
Green Flashing Data is being transmitted or received.
PoE port
Amber
Amber ON PSE is activated and PD is detected.
Amber Flasing PSE data is being transmitted or received.
1. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the converter are not blocked.
3. Use ber optic cables and transceiver compliant with the following: Multi-mode: 50/125um, 62.5/125um, 850/1310nm;
Single-mode: 9/125um ,1310/1550nm.
4. DC input: 50V~56VDC. Follow the printed polarity for V+, V-, and Ground.
5. Please DO NOT connect power to the V2 pins.

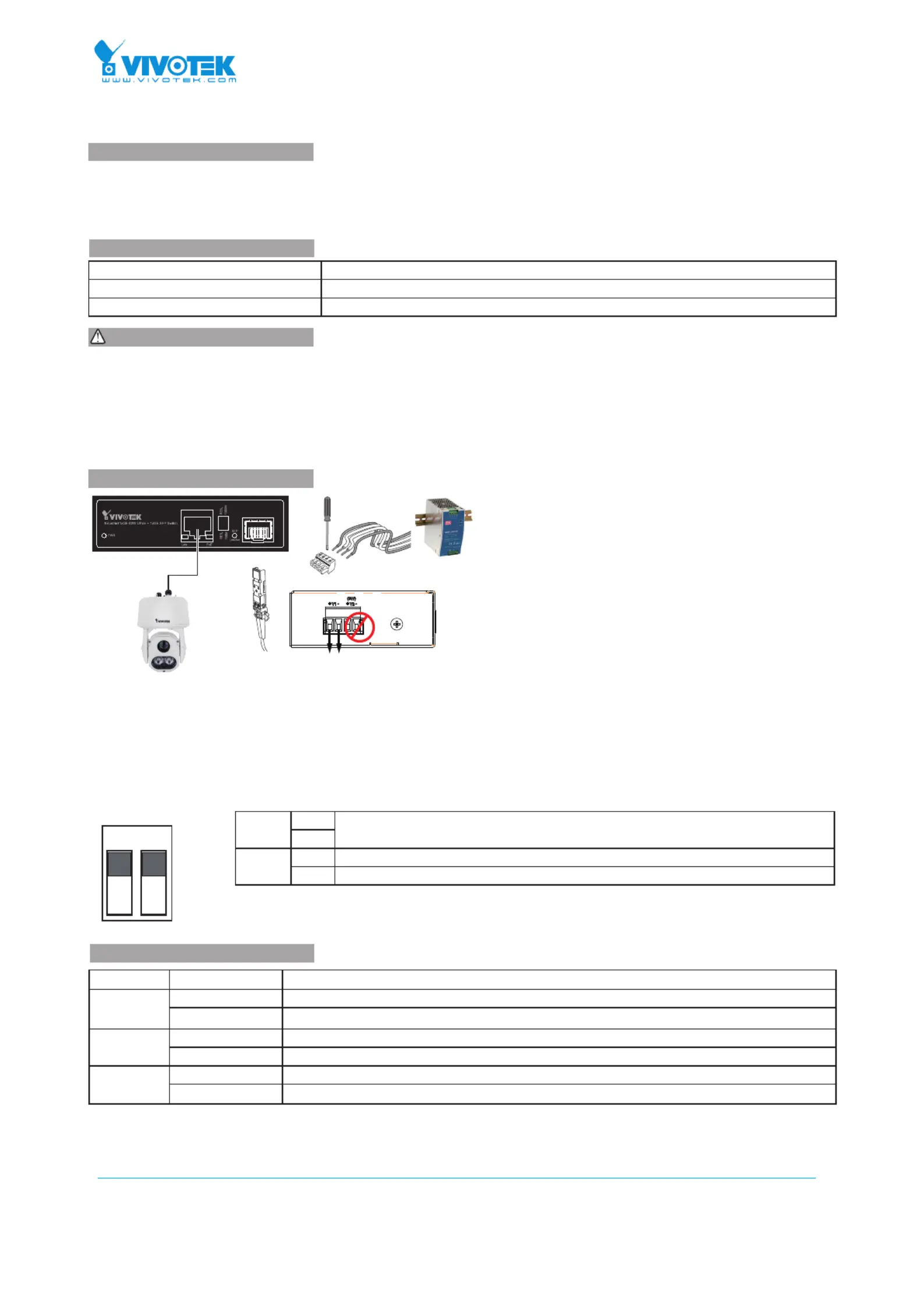

AW-IHH-0200 Industrial 95W PoH/PoE Switch
Quick Installation Guide
The AW-IHH-0200 is a rugged Gigabit switch designed for critical and space-limited outdoor applications. Designed for IP
surveillance, trafc monitoring, and security applications in critical environments, the converter can deliver a 95W output
on Ethernet port, featuring an operating temperature ranging from -40°C to 75°C.
IMPORTANT:
INTRODUCTION
LED DEFINITIONS
CONNECTION
* 1x PoE switch * 1x Quick Installation Guide
* 2x wall mount brackets * 1x DIN rail bracket
* 1x 4-pin terminal block
PACKAGE CONTENTS
1. Pull out the 4-pin terminal block.
2. V1(power input): Connect positive wire of external
power supply to V1 +, negative wire to V1 -, and
neutral wires to the ground screw.
3. V2(relay output): Connect the 24VDC@1A pins
to external devices, When 2 power pins are
connected, the relay is shorted. When any of them is
disconnected, the relay connection is open.
4. Connect an SFP transceiver to the ber port.
5. install the 4-pin terminal block. You can connect
redundant power line pairs for fault tolerance.
ON
OFF
21
DIP 1 OFF no use, reserved.
ON
DIP 2 OFF 1000Mbps speed for SFP port (default)
ON 100Mbps speed for SFP port
VIVOTEK INC.
6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
| | |T: +886- 2-82455282 F: +886-2-82455532 E: sales@vivotek.com
VIVOTEK USA, INC.
2050 Ringwood Avenue, San Jose, CA 95131
| | |T: 408-773-8686 F: 408-773-8298 E: salesusa@vivotek.com
VIVOTEK Europe
Randstad 22-133, 1316BW Almere, The Netherlands
T E: +31(0)36-5298-434 : sa leseurope@vivot ek.com
All specications are subject to change without noice.
Copyright © 2016 VIVOTEK INC. All rights reserved.
Solid or stranded (AWG): 12-24/14-22.
Wire strip length: 7-8mm
Torque: 5lb-In/0.5Nm/0.56Nm.
WARNING - Always ground the power source to maintain a clean power input.
