Pulsar Plus Socket – Online Installation Guide
support.wallbox.com/en/knowledge-base/pulsar-plus-socket-online-installation-guide
1. Technical Specifications
You can consult the complete Datasheet here.
1.1 General Specifications
Charging Mode
(IEC 61851-1)
Mode 3
Connector Type Type 2 socket outlet (shutter)
Dimensions 204.3 x 131 x 142.5 mm
Weight 2.5 kg
Operating
Temperature
-30 ºC to 40 ºC
Storage
Temperature
-40 ºC to 70 ºC
Protecting Ratings IP55, IK10 (High resistance)
Installation location Indoor and outdoor use
Mounting Method Stationary equipment is mounted on the wall. Floor mounting with
appropriate Wallbox accessories.
Intended for use Equipment intended for use by ordinary persons.
Location accesses Equipment for locations with non-restricted access and restricted
access.
Standards RED Directive 2014/53/EU and RoHS Directive 2011/65/EU
Compliant with IEC 62196-2 and NFC 15-100 for France.
1.2 Electrical Specifications
[1]
[1]
2/15
Charging Power 7,4 kW (1P) 1 11 kW (3P) 2 22 kW (3P)
Rated Voltage AC ± 10% 230 V 400 V 400 V
Rated Current 32A 32A 32A
Pulsar Plus Socket can be installed in a single phase installation (see installation guide)
22kW version is limited to 11kW during installation.
Configurable Current From 6A to rated current
Rated Frequency 50 Hz / 60 Hz
Protection rating IP55 / IK10
Overvoltage Category CAT III
Residual Current Protection AC 30mA / DC 6mA
External RCD required for local regulations Type A or Type B
Protection against electric shock CLASS I
Input Cable Section Up to 5×10 mm²
Rated diversity factor (RDF) 1
Rated insulation voltage 1430 Vrms
Rated impulse withstand voltage 2500 V

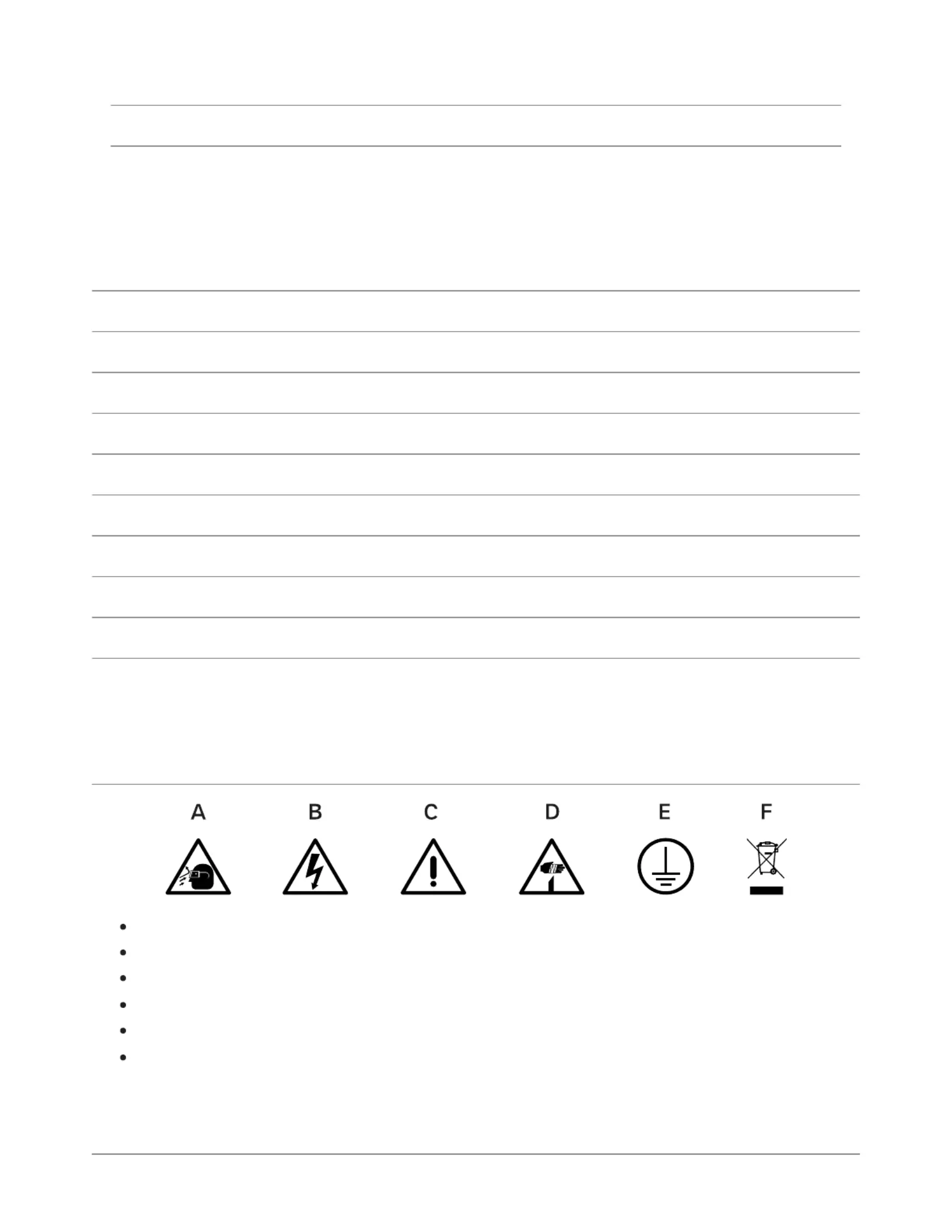

2. Safety Warnings
A. Flying debris, risk of eye injury
B. Risk of electric shock. Disconnect and wait 10 mins.
C. Caution
D. Sharp element, risk of dangerous cuts
E. Ground earth connection required
F. Special waste treatment
3. Safety Instructions
[1]
[2]
3/15
You can consult the Safety Instructions here.

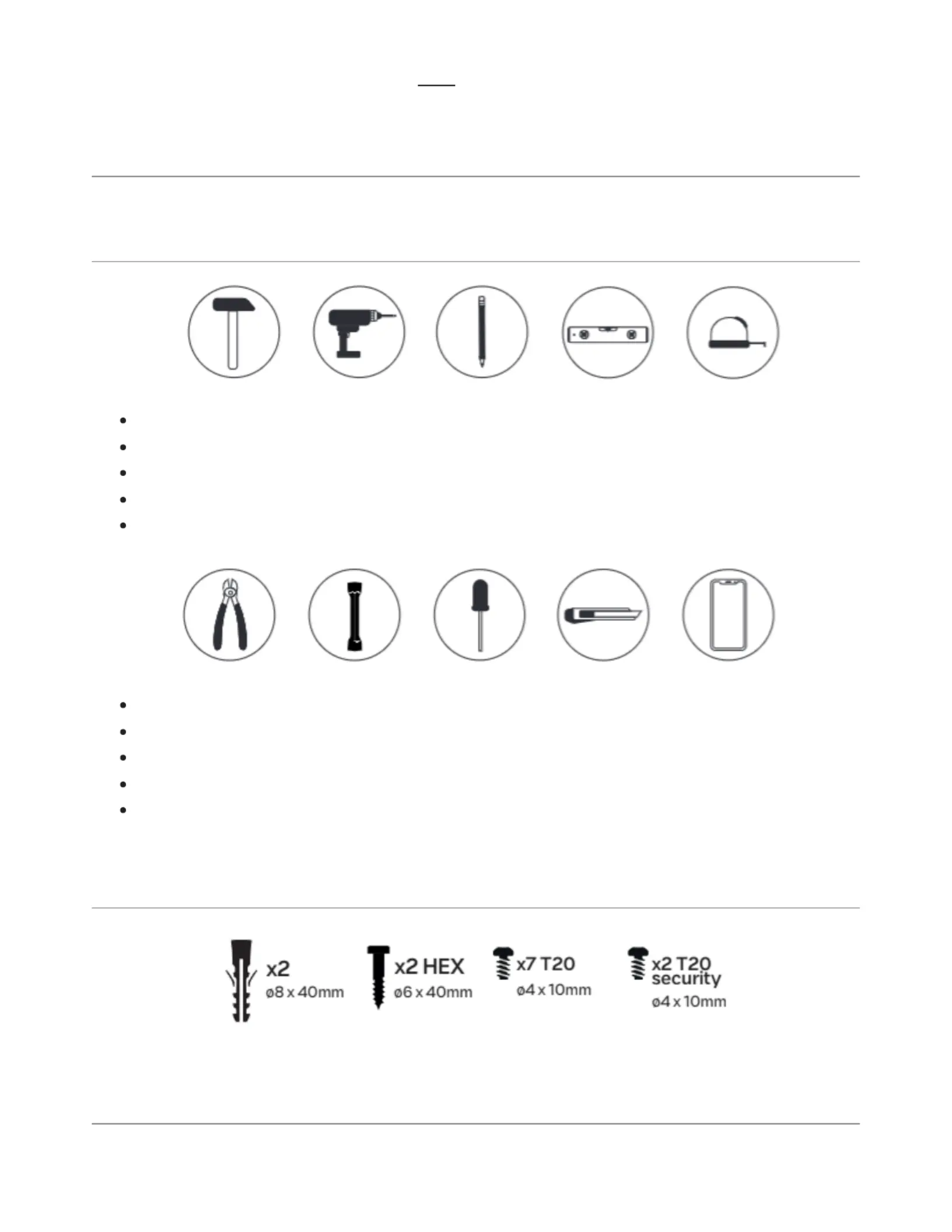

4. Tools and Mounting Parts
Required tools
Hammer
Step drill bit 8mm
Pencil
Sprit Level
Measuring Tape
Cutting Pliers
HEX tube key 6⌀
Security Torx T20
Utility knife
Mobile Phone
Included Parts
5. Installing the Wallplate
