Sida 1/12

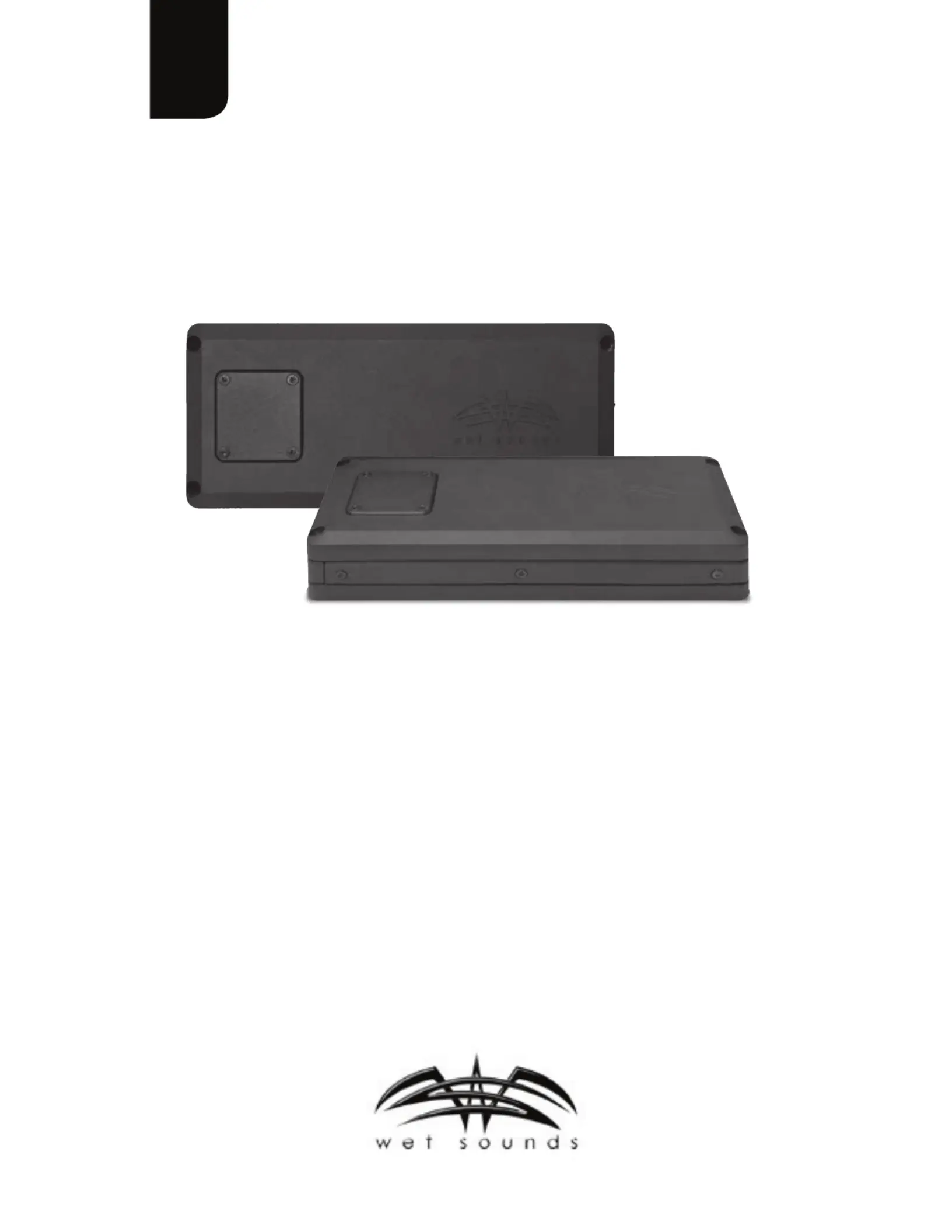

STX MICRO-1 STX MICRO-4/
O W N E R ' S M A N U A L
HIGH PERFORMANCE AUDIO
wetsounds.com
STX MICRO AMPS
:HW6RXQGV67;0,&526HULHV$PSOL¿HUVOperations / Installation Manual
1ABOUT
STX MICRO-1 STX MICRO-4/
COMPACT CHASSIS CLASS-D AMPLIFIERS
STX MICRO Series Specifications
STX MICRO-1 STX MICRO-4
Power Output 600W x 1 @ 1 Ohm 80W x 4 @ 4 Ohms
420W x 1 @ 2 Ohms 130W x 4 @ 2 Ohms
250W x 1 @ 4 Ohms 280W x 2 @ 4 Ohms
S/N Ratio @ 1 Watt > 95dBA > 95dBa
Frequency Response 10Hz – 250Hz 10 Hz – 40 kHz
Total Harmonic Distortion 0.19% 0.05%
Input Sensitivity Range 150mV – 7V 150mV – 7V
Dimensions 9.25” L x 4” W x 1.5” H
(235mm L x 101.6mm W x 38mm H)
:HW6RXQGV67;0,&526HULHV$PSOL¿HUVOperations / Installation Manual
THANK YOU FOR PURCHASING WET SOUNDS! 2
CONGRATULATIONS!
Thank You for purchasing the Wet Sounds STX MICRO amplifier.
Wet Sounds professional marine audio products represent the ultimate
in high performance marine audio. Wet Sounds products are specifically
engineered to withstand the rigorous marine environment.
The STX MICRO amplifiers are state of the art Class D amplifiers designed
to provide great amplification in a small space for your marine or off-road
audio system. The STX MICRO-4 is a 4 channel full range amplifier with
fully variable high pass and low pass crossovers enabling it to drive a wide
variety of either full range speakers or subwoofers. The STX MICRO-1 is a
Mono-Block Class D amplifier that is designed to drive subwoofers. Both
amplifiers are equipped with 3.5mm inputs and have wide enough gain
range to accept a direct input from a smartphone or other portable device.
The STX MICRO-4 also has a pass through output that enables connection to
either the STX-MICRO-1 or a Wet Sounds ST-AS10/AS6 amplified subwoofers.
The die cast aluminum chassis on the STX MICRO amplifiers are sealed to
withstand use in extreme environments.
Please take a moment to read the instruction manual before starting your
installation. If you have any questions or concerns, please contact your
certified Wet Sounds dealer or Wet Sounds:
877-WET-SPKR (1-877-938-7757)
www.wetsounds.com
