Congratulations! Thank You for purchasing the Wet Sounds WS 420-SQ.
Wet Sounds professional marine audio products represent the ultimate in
high performance marine audio. Wet Sounds products are specifically
engineered to withstand the rigorous marine environment.
The WS 420-SQ Equalizer is a state of the art equalizer designed to provide
amazing control and flexibility of your marine audio system. The WS 420-SQ
gives you independent control of your tower speakers as well as indepen-
dent control of your in boat speakers and subwoofer(s). The Wet Sounds
talk back microphone allows the boat driver to communicate with the rider
or other boats in the area. By pushing the button on the microphone, the
system will automatically mute the music playing from the tower speakers
and allow you to use your tower speakers as a PA system. Once the button
is released, the tower speakers will begin to play again at the level they
were at. Additionally, the WS 420-SQ includes Wet Sounds exclusive Boat
Link™. Boat Link gives you the ability to link up with other WS 420-SQ
equipped boats for the ultimate party cove experience.
Please take a moment to read the instruction manual before starting your
installation. If you have any questions or concerns, please contact you
certified Wet Sounds dealer or Wet Sounds at 877-Wet-Spkr.
(1-877-938-7757)
WS 420-SQ Specifications
Bass Equalizer Frequency 100Hz
Mid Bass Equalizer Frequency 300 Hz
Mid Equalizer Frequency 2 KHz
Hi Equalizer Frequency 15 KHz
Parametric Equalizer Range + 12dB
S/N Ratio 80 dB REF 1V Input
Frequency Response 10 Hz-40KHz, -3dB
Maximum Output Voltage 5V RMS
T.H.D. 0.05%
Input Impedance 20K Ohms
Stereo Separation 80 dB/1 KHz
Operational Voltage 11-15V DC, Negative Ground
WETSOUNDS.COM
420 ABOUT 1
WS 420 4 Band Parametric Equalizer with 3 Zone Operation
& Talk Back Microphone
The WS 420-SQ is 3 Zone equalizer/controller with 2 separate equaliz-
ers in one half din chassis using our exclusive design which allows you to
independently control the volume of tower speakers, in boat speakers
and subwoofers all independently and have EQ adjustments of both in
boat and tower speakers independently. The WS-420-SQ is the world’s
only true marine audio zone controller/equalizer. The WS-420SQ gives
you ultimate control over your system. The WS-420-SQ allows you to
have any combination you wish. In boat speakers and subwoofer playing
with no tower speakers, tower speakers and subwoofer playing with no in
boats, all speakers playing, max volume from the tower and subwoofer
with half volume from the in boats and many other configurations. The
WS420-SQ includes a talk back microphone for rider communication.
The level of the talk back microphone is independent from your music
level allowing you to adjust the volume for the PA function. The micro-
phone feature only plays through the tower speakers. When the micro-
phone is keyed up, the music is muted for announcements. After the
key is released, the music will resume at previous level. The WS-420-SQ
has a large knob master volume control giving you quick control for the
overall system. You are able to set the other zones to whichever volume
level you desire and have one knob for quick overall volume adjustment.
There are two separate 4 band equalizers. The outer ring makes
adjustments for the tower speakers and inner knob makes adjustments
for the in boat speakers.

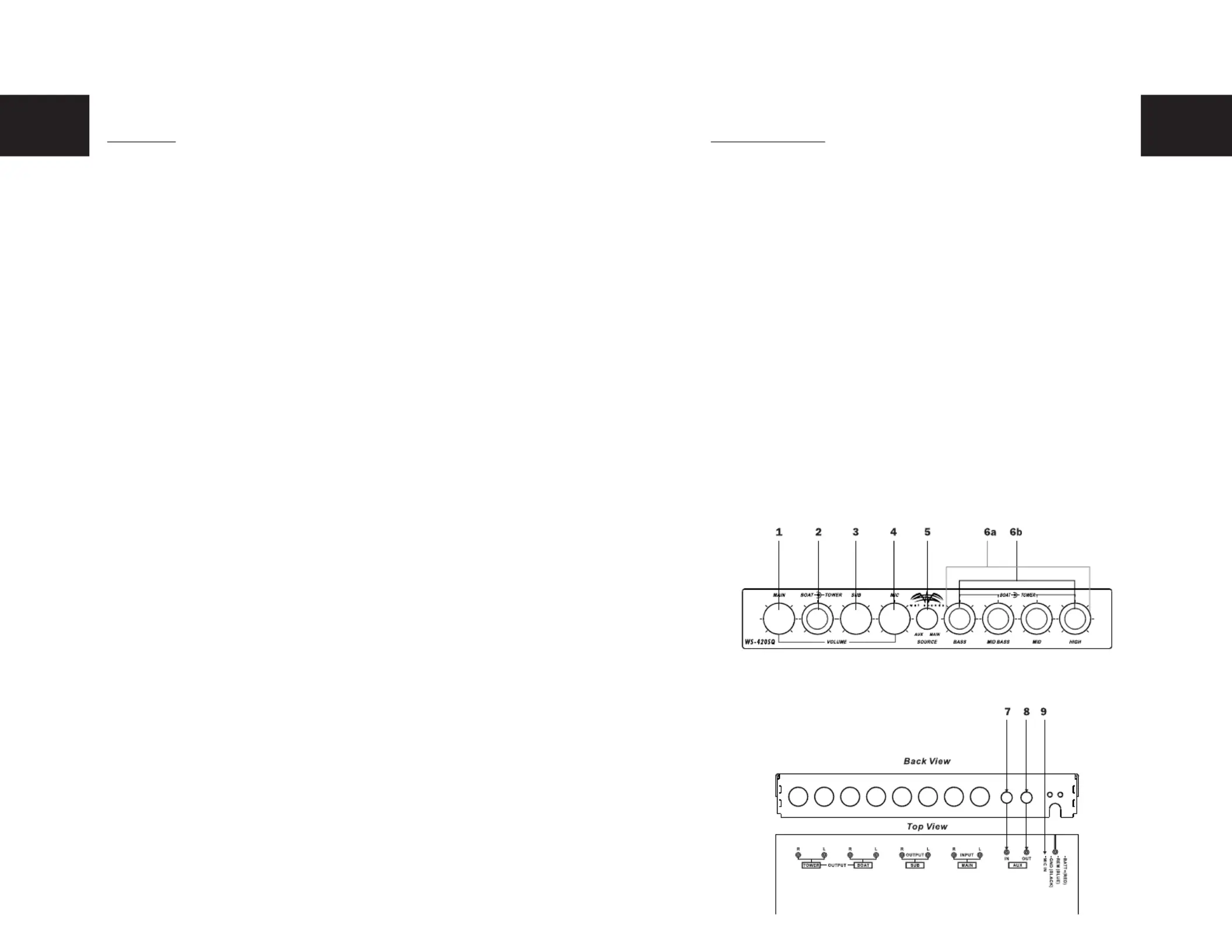

1.. Main Volume. This is the Master Volume that controls the overall
volume of all zones.
2. In Boat and Tower Zone Volume. Adjusts the volume of the tower
speakers (outside ring) and the volume of the in boat speakers (inside
knob) You can set these levels to whichever volume you prefer and use the
master volume for overall control.
3. Subwoofer Volume. Independent Subwoofer volume control.
4. Microphone. Independent Talk Back Microphone volume control.
5. Aux/Main Switch. Auxiliary input or main input selection switch.
6. Equalizer Adjustments. These 4 controls adjust the four separate
frequencies (bass, mid bass, mid, high) Offering 12 dB of cut/boost. The
outside ring adjusts the frequencies for the tower speakers (6a) while the
inside ring adjusts the frequencies for the in boat speakers (6b).
2 3FEATURES FEATURES CONT.
7. Auxiliary Input. 3.5 mm aux input jack for MP3 player or
additional source.
8. Boat Link™ 3.5 mm aux output jack. For linking with other WS
420 equipped boats.
9. Microphone Input. Microphone input for Wet Sounds talk back
microphone.

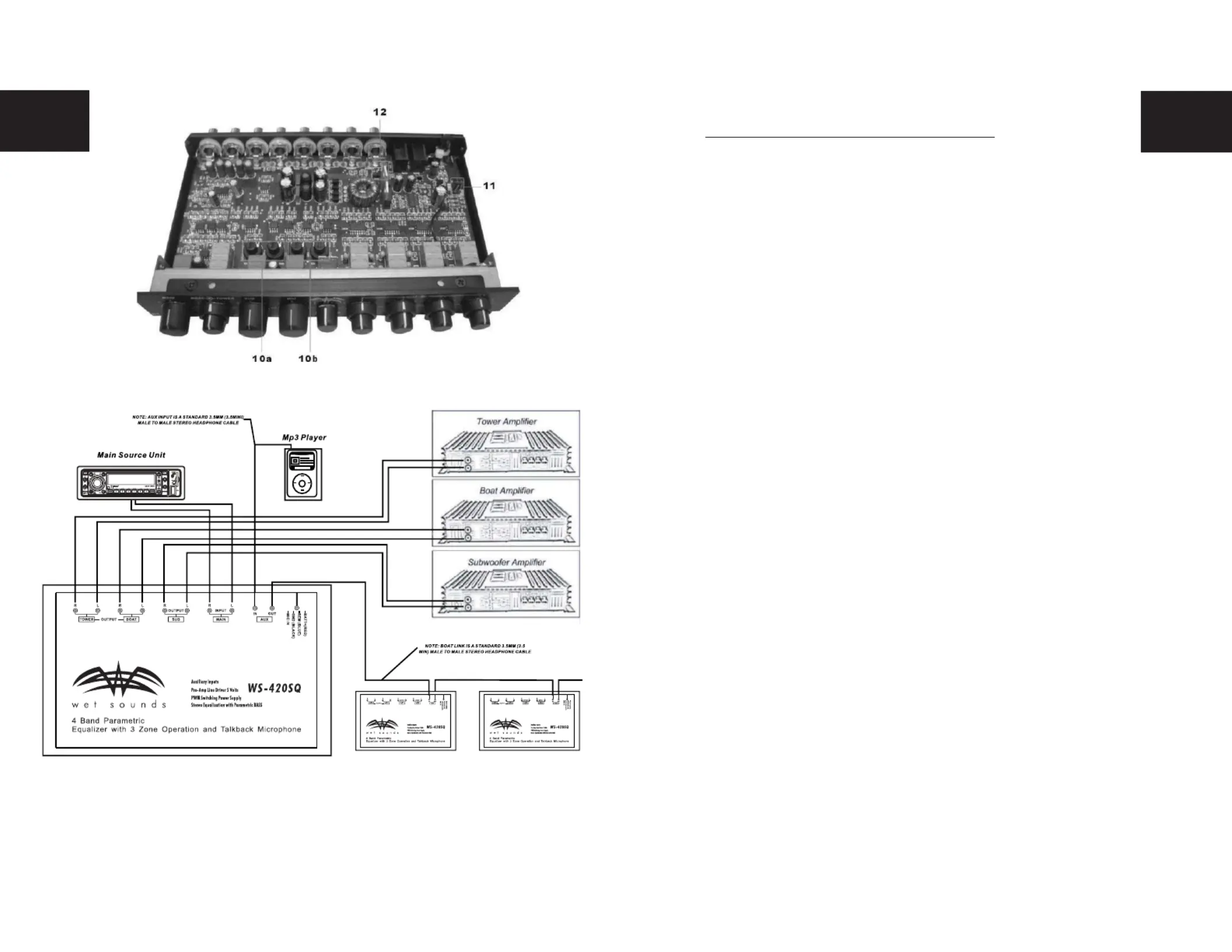

10: Input Gain.
10(a) Main Input Sensitivity Gain adjustment.
10(b) Auxiliary Input Sensitivity Gain adjustment. NOTE: If you are
not an experienced audio installer, it is recommend to leave these
adjustments in the pre set factory position.
11: Illumination. WS-420-SQ illumination comes pre set in blue
illumination If you would like to change to red. Remove jumper
and position to red.
12: Ground Isolation. Occasionally alternator whine may appear
in your system if you source unit and amplifiers may have different
grounds. You may use the isolation jumper to eliminate the noise.
Please make sure unit is off when adjusting the jumper.
SETTING UP A SYSTEM USING THE WS 42045
1. Unplug all the RCA’s from your amps. Turn all the amp gains down.
2. Turn the radio up to find the maximum volume. Set the system with the
head unit volume at 85% of max. This is the loudest the radio should ever
go. Radios will create distortion the higher the volume is turned up. Which
will create distortion on the output signal before reaching the amps. So find
a safe easy to remember volume. If the head unit is 35. Max should be 30.
If the head unit is 40. Maximum should be 30 to 35 and so on.
3. Once you have found the maximum volume set point. Turn the radio back
down. Use a test CD that you are familiar with for tuning. Something that
has highs and lows and vocals.
4. Make sure the settings on the radio are flat. You should not tune a
system with the treble or bass up.
5. Make sure all the eq adjustments are flat. Right in the middle. Plug in all
the rcas from the eq to the amps.
6. Plug in just the RCA’s for the in boat speakers amp. Set the high pass
crossover at around 80HZ to 100HZ.
7. Turn the radio up to the max safe level found in step 2. Turn the eq up to
about ¾ of max volume.
8) Slowly turn the gain up until you hear the speakers distort. Slowly back
off the gain from that point a small amount until you hear the speakers play
as loud as they can with no distortion.
9. Unplug the RCA’s from that amp and plug the RCA’s into the amp running
the tower speakers. Set the high pass crossover on the amp for the
towerspeakers at 80HZ to 100HZ.
10. Slowly turn the gain up until you hear the speakers distort. Slowly back
off the gain from that point a small amount until you hear the speakers play
as loud as they can with no distortion.
