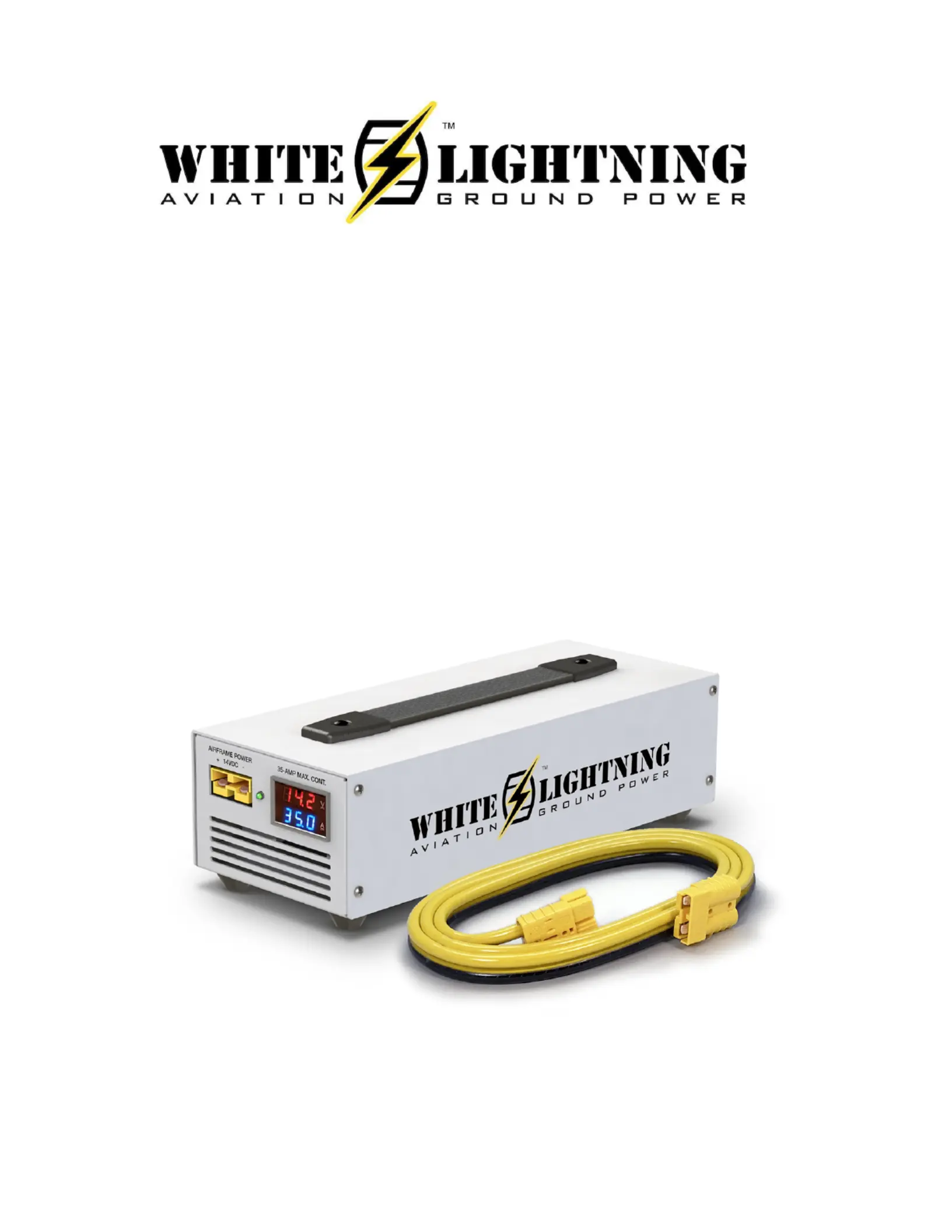

M-Series Operator’s Manual

Mini-GPU for Experimental/Amateur-Built Aircraft

Model M1435-EXP 14-Volt 35-Amp Maximum Continuous

IMPORTANT DISCLAIMERS & LIABILITY LIMITATIONS

As a condition for use, Audio Authority Corp. authorizes this device for use ONLY by aviation

professionals, such as licensed pilots and maintenance technicians, knowledgeable about the

aircraft’s electrical system and batteries. Experimental/Amateur-Built aircraft electrical systems not

only vary widely; they are unique. Many aircraft electrical systems also become altered from the

original builder’s conﬁguration and these changes are often poorly documented in the aircraft records.

The concepts, recommendations, and instructions in this manual are necessarily general and make

assumptions that do not apply to every aircraft and may not be correct for your particular aircraft.

Incorrect use of this device has the potential to damage the GPU and/or aircraft components. This

product also requires installation of electrical wiring to the airframe to function.

It is the operator’s sole responsibility to read completely and fully understand this manual, plus all

available documentation on their aircraft’s electrical system design, to properly determine the

appropriate use of this, or any, external power source. If you cannot do this, do not use this

product. Instead, consult a qualiﬁed technician familiar with your speciﬁc aircraft type and

conﬁguration before connecting the GPU to your aircraft, or return it to the seller before using.

Model M1435-EXP Manual P/N 752-790, Rev 20211201

General Description and Application

The Model M1435-EXP Mini-GPU is a specialized switching-mode power supply designed to provide

pilots and aviation maintenance professionals with a portable, aﬀordable source of stable, high-current,

noise-free DC power that replicates the in-ﬂight electrical environment. Its rated output is 14 Volts DC up

to 35 amps maximum continuous current. It is designed speciﬁcally for the owner/operator/maintainer of

Experimental/Amateur-Built (E/AB) aircraft. The GPU’s intended purpose is to energize aircraft’s main

electrical bus without using the battery or engine. It will safely provide continuous power for the most

delicate electronics and airframe systems up to its full rated output.

Typical Uses

●power avionics for ﬂight planning, familiarization, and training

●update ﬂight deck database and software

●troubleshooting and maintenance

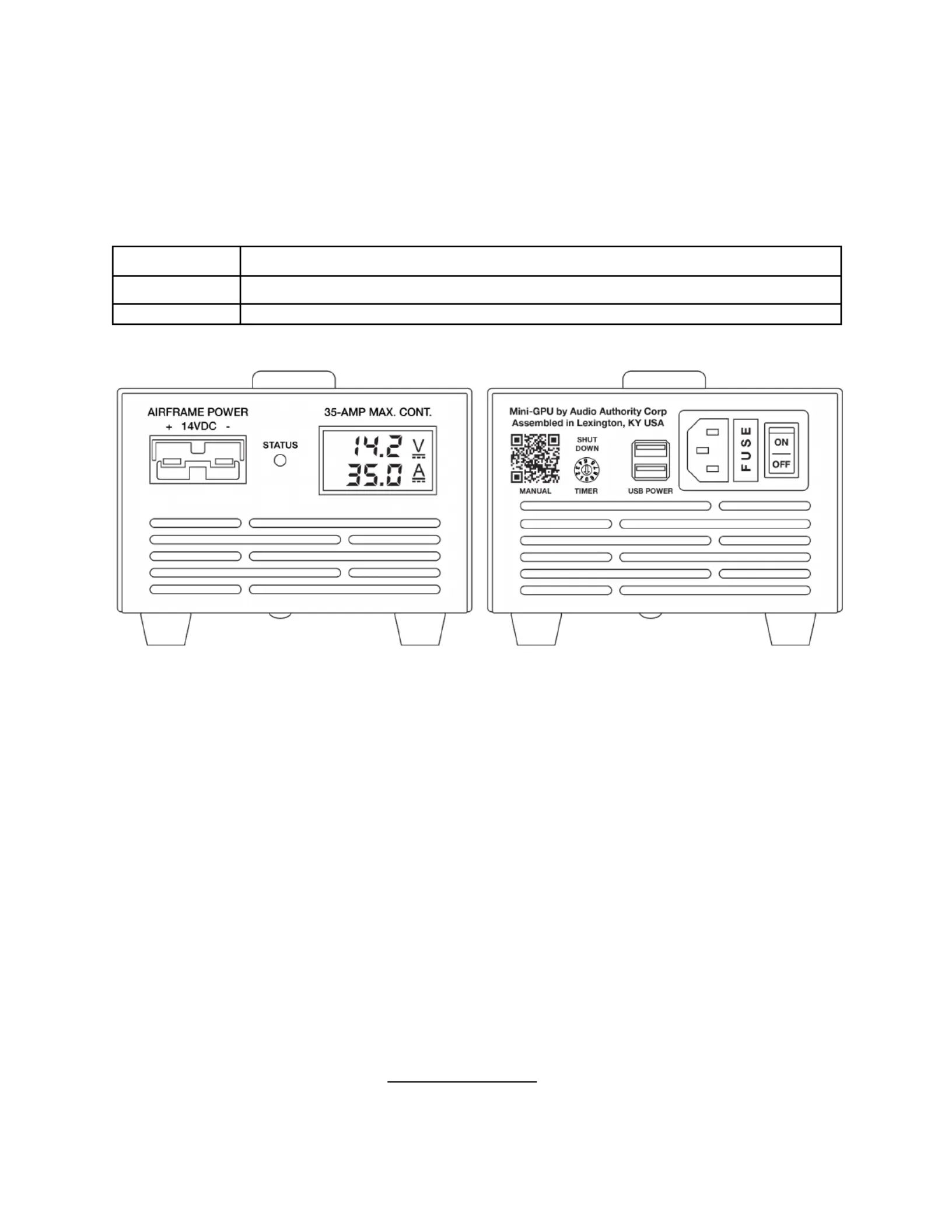

FRONT PANEL VIEW REAR PANEL VIEW

Special Features

●Color-coded, keyed SB-50 type output connections to prevent accidental voltage mismatch

(Yellow designates 12/14 volt compatibility)

●Dual digital output meters for voltage and current load

●Front panel status indicator LED

●Programmable auto-shutdown timer

●Dual USB power ports for mobile device charging

●QuietFiltered™ output for interference-free COM radio operation

●Auto protection/recovery from short circuit, reverse polarity, over voltage/load/temperature

Operating Conditions and Limitations

The M1435-EXP is internally fan-cooled and relies on unobstructed ventilation access for proper

operation. The GPU should operate on a clean, hard surface so that debris cannot be ingested. Its

design assumes a dry operating environment. If used outdoors, it is the operator’s responsibility to

ensure that the unit is not exposed to moisture.

The M1435-EXP is designed to provide . It is not a battery charger. It does notairframe power only

monitor the state-of-charge of the aircraft battery. It is not suitable for engine starting.

Model M1435-EXP Manual P/N 752-790, Rev 20211201
