4K UHD 4:4:4/60 HDBaseT extender with HDMI Loop Out

and 2-way PoH (70m/230ft)

EX-70-H2X Quickstart Guide

EX-70-H2X v2 Quickstart Guide | 181023

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

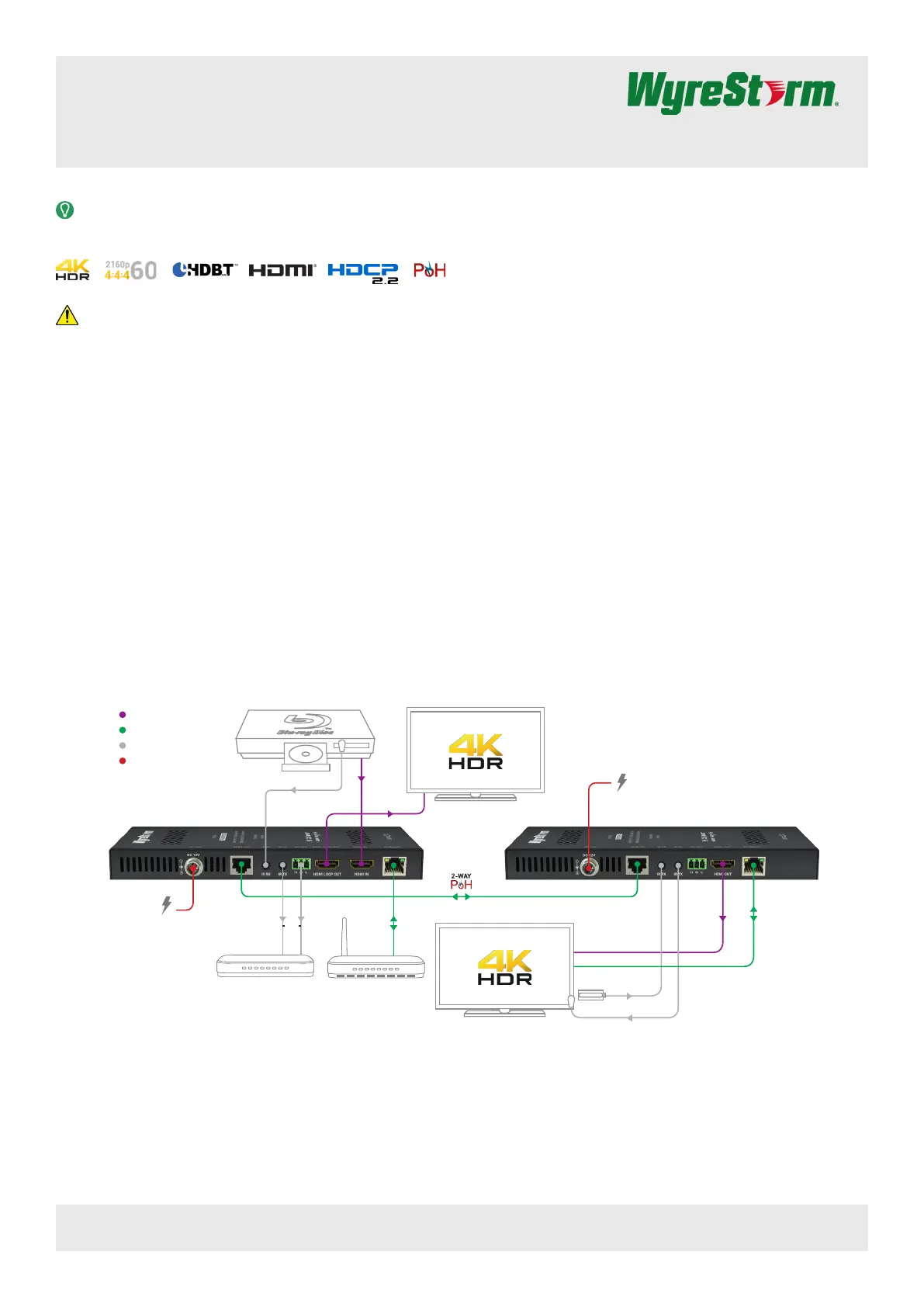

Basic Wiring Diagram

HDMI Source

HDMI

HDBaseT Cat5e/6/6a

IR Emitter

IR Receiver

HDMI Display

12 DC

Power Supply

12 DC

Power Supply

KEY

HDMI

HDBaseT/Ethernet

IR/RS-232

Power

EX-70-H2X Transmitter (TX) EX-70-H2X Receiver (RX)

HDMI Ethernet

Ethernet

IR to Control System Router

CAB-IR-LINK (Sold Separately)

HDMI

Note: Extender set may be powered

by either the TX or RX. Only one

power supply is required.

Note: Extender set may be powered

by either the TX or RX. Only one

power supply is required.

HDMI Display

IMPORTANT! Installation Requirements

• This product was released in 2 different versions which contain

different chassis designs and feature sets. This Quickstart Guide

contains information for version 2 of this product only. See Identifying

Product Versions for details.

• Visit the product page to download the latest rmware, document

version, additional documentation, and conguration tools.

• Read through the section for important wiring Wiring and Connections

guidelines before creating or choosing premade cables.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

In the Box

1x EX-70-H2X Transmitter

1x EX-70-H2X Receiver

1x 12V DC 3A Power Supply (US | UK | EU)

2x 3-pin Screw Down Phoenix Connectors

1x IR Emitters

1x IR Receivers

4x Mounting Brackets (2x for TX | 2x for RX)

1x Quickstart Guide (this document)

Identifying Product Versions

This product has been released with different versions which contain different chassis designs and/or feature sets. This Quickstart Guide contains information

for version 2 of this product only, information for version 1 can be found in the previous Quickstart Guide. Versions can be identied by a v# after the model

number on the product chassis model sticker. Note that version 1 of this product may not contain a v1 after the product while all versions above version 1 will

contain a version number.

EX-70-H2X v2 Quickstart Guide | 181023

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends using pre-terminated HDMI cables due to the

complexity of these connector types. Using pre-terminated cables will

ensure that these connections are accurate and will not interfere with the

performance of the product.

IR TX/RX Guidelines

• Using WyreStorm infrared emitters and receivers is the best way to ensure

that most IR coding formats are transmitted and received Other 3rd party

emitters and receivers can be used; however, these devices must operate in

the same manner as the WyreStorm devices.

• Due to differences in IR across 3rd party control systems their IR ports

should never be connected directly to a WyreStorm system as an

incompatibility may exist. WyreStorm offers a cable that compensates for

voltage differences as well adjusts for differences in the pins used within the

port. Refer to the product page for more information.CAB-IR-LINK

IR TX Port Pinout

Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.

Tip: Anode

Sleeve: Cathode (IR Signal)

IR RX Port Pinout

Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs

+5V DC to power the included IR receiver.

Tip:

Ring: IR Signal

+5V DC

Sleeve: Ground (GND)

RS-232 Wiring

The EX-70-H2X uses a 3-pin RS-232 with no hardware ow control. Most

control systems and computers are DTE where pin 2 is RX, this can vary from

device to device. Refer to the documentation for the connected device for pin

functionally to ensure that the correct connections can be made.

Refer to for details on setting RS-232 modes.RS-232 Mode Settings

3rd Party Device

Pin 1 TX (Transmit) > To > RX (Receive)--- ---

Pin 2 RX (Receive) > To > TX (Transmit)--- ---

Pin 3 G (Gro d) > To > G (Gro d)un --- --- un

WyreStorm Co ectornn

EX-70-H2X v2 Quickstart Guide | 181023

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

3 of 4

Setup and Conguration

EDID Conguration

EDIDs can be congured to resolve issues with video output on displays that

may not accept the maximum resolution available from the source.

• Ensure that a display is connected and powered tto the selected output On

before copying EDIDs or the copy will fail. When this occurs, the EDID will be

set to 4K @30Hz 2ch.

• Power to the extender must be cycled (Off/On) after changing dip switches

in order for the setting to take effect

Note: Switches shown in gray can be in any position for the described function

EDID Copy (Default)

4K@30Hz/8bit only

2ch audio without

HDR

4K@60Hz 2ch audio

without HDR

4K@30Hz 2ch audio

with HDR

4K@60Hz 2ch audio

with HDR

4K@30Hz 7.1ch audio

with HDR

4K@60Hz 7.1ch audio

with HDR 1080P@60Hz 2ch

Long Cable Mode

This extender can be set to allow for extending 2K HDBaseT signals up to

140m/459ft by setting Long Cable Mode We recommend that this mode On.

is set to for cable runs of 100m/328ft or less. These settings apply to the Off

Setting dipswitch located on the transmitter.

Note: Switches shown in gray can be in any position for the described function.

Long Cable Mode On 123

Long Cable Mode Off 123

RS-232 Mode Settings

The RS-232 connector is used to transmit RS-232 over HDBaseT to the remote location and for rmware updates. Ensure that the RS-232 Mode switch on the

receiver and the Setting dipswitches on the transmitter are the proper position for the operation being performed.

Receiver RS-232 Mode Switch

Set the mode switch to to transmit RS-232 Normal

signals from the TX to the RX for controlling devices

in the remote location.

Set the mode switch to the position to install Update

a rmware update in either the TX or RX.

Transmitter Setting Switch

RS-232 Pass-Through (DEFAULT) 123

HDBaseT Update 123

Note: Switches shown in gray can be in any position for the described function.
