XT-CAT-ARC-KIT USER MANUAL
User Manual
XT-CAT-ARC-KIT
The Xantech XT-CAT-ARC-KIT audio over CAT cable solution transmits digital audio signals up to distance of 300m (192kHz signals up to 100m).
This plug and play device will extend both optical and coaxial digital inputs concurrently and features a built in DAC to convert either of the digital
inputs to an analog stereo left / right audio output.
Introduction
Key Features
• Extend optical and coaxial digital audio signals up to distances of 300m over a single CAT cable
• Supports distances of up to 192kHz - 100m, 96kHz - 150m, 48kHz - 300m
• Optical and coaxial digital signal can both be distributed at the same time
• Built in DAC (Digital to Analog Converter) converts either optical or coaxial digital (selectable) to analog stereo left/right audio output (PCM only)
• Active solution powered only at the receiver unit. The Xantech transmitter receives power over the CAT cable.
• Supports LPCM, DTS, Dolby Digital and Dolby Digital Plus when used as a straight digital in/digital out extender
• Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit resolution
• Ultra low jitter and high fidelity design
• Plug-and-play
• Small compact size
www.xantech.com
®

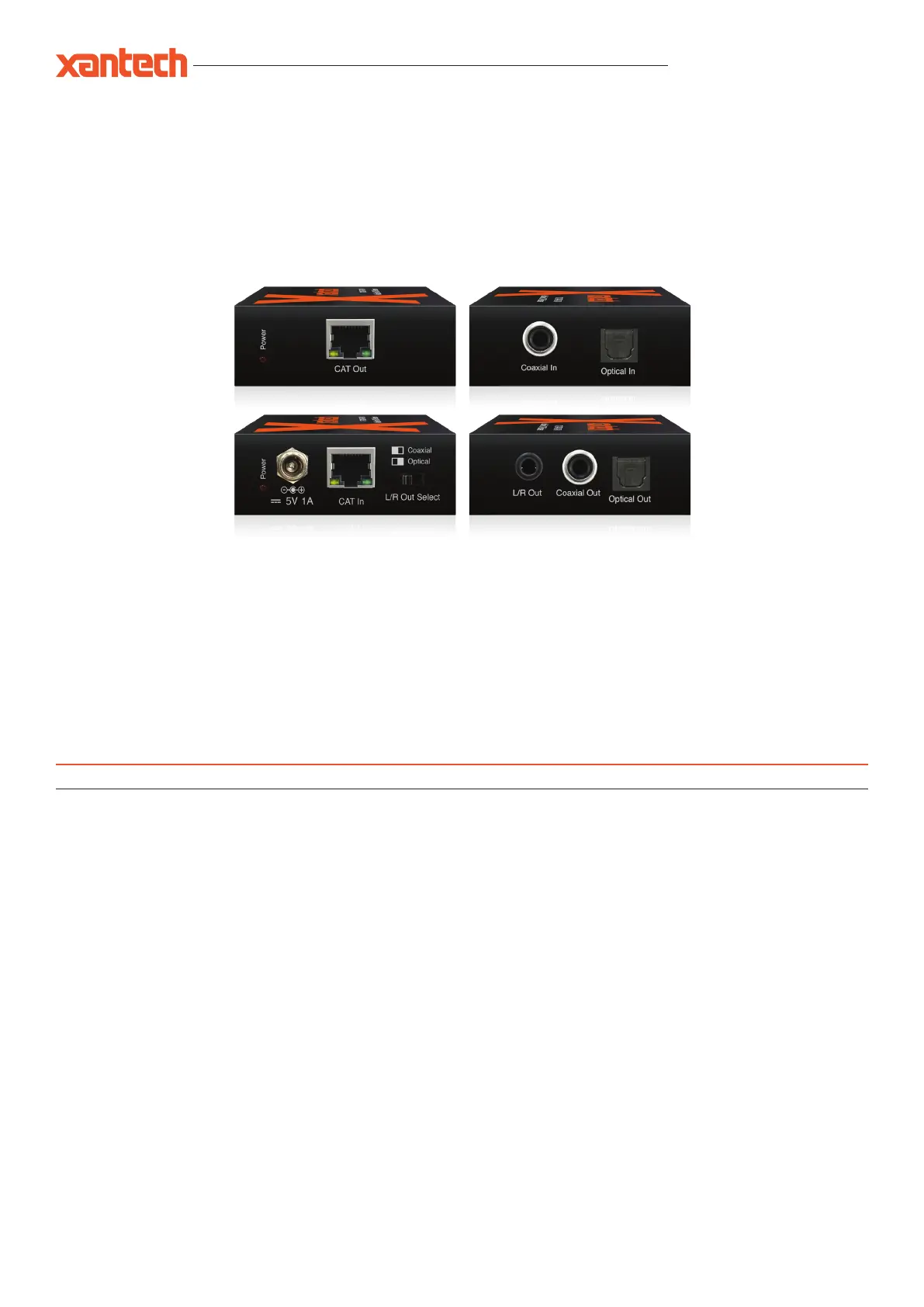

Panel Description
XT-CAT-ARC-TX
Coaxial digital audio input
Optical digital audio input
Power LED indicator displays the power status of the unit
Cat5e/6 RJ45 output
1
2
3
4
41 32
XT-CAT-ARC-RX
Power socket – Use Xantech supplied 5V / 1A DC adaptor
Cat5e/6 RJ45 input
DAC input selection – Switch between optical and coaxial digital input to be converted to analog L/R audio output
Analog L/R audio output - 3.5mm stereo audio jack
Coaxial digital audio output
Optical digital audio output
5
6
7
8
9
5 86 7 10
9
10
Power
Optical
CAT In
Coaxial
L/R Out Select
5V 1A Optical Out
Coaxial OutL/R Out
Power
CAT Out
Optical In
Coaxial In
XT-CAT-ARC-KIT USER MANUAL
© 2018 XANTECH® is a registered trademark of Nortek Security & Control.
®
10019320 REV-A0
Package Contents:
Specifications:
• 1x XT-CAT-ARC-TX Transmitter
• 1x XT-CAT-ARC-RX Receiver
• 1x 5V/1A DC power supply
• 2x Mounting kits
• 1x Quick reference guide
XT-CAT-ARC-TX Transmitter
Input Connectors: 1x Optical digital & 1x Coaxial RCA (SPDIF)
Output Connectors: 1x RJ45
Casing Dimensions (W x H x D): 69mm x 65mm x 24mm
Dimensions Including Connections (W x H x D): 69mm x 76mm x 24mm
XT-CAT-ARC-RX Receiver
Input Connectors: 1x RJ45
Output Connectors: 1x Optical digital, 1x Coaxial RCA (SPDIF), 1x Analog left/right 3.5mm stereo audio jack
Power Supply: 5V/1A DC
Casing Dimensions (W x H x D): 69mm x 65mm x 24mm
Dimensions Including Connections (W x H x D): 69mm x 76mm x 24mm
Shipping Weight: 0.7kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
NOTE: Specifications are subject to change without notice.
Maintenance:
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.
Do not substitute or use any other power supply other than the enclosed unit, or a Xantech approved replacement.
Do not disassemble the unit for any reason. Doing so will void the manufacturer’s warranty.
XT-CAT-ARC-KIT USER MANUAL
