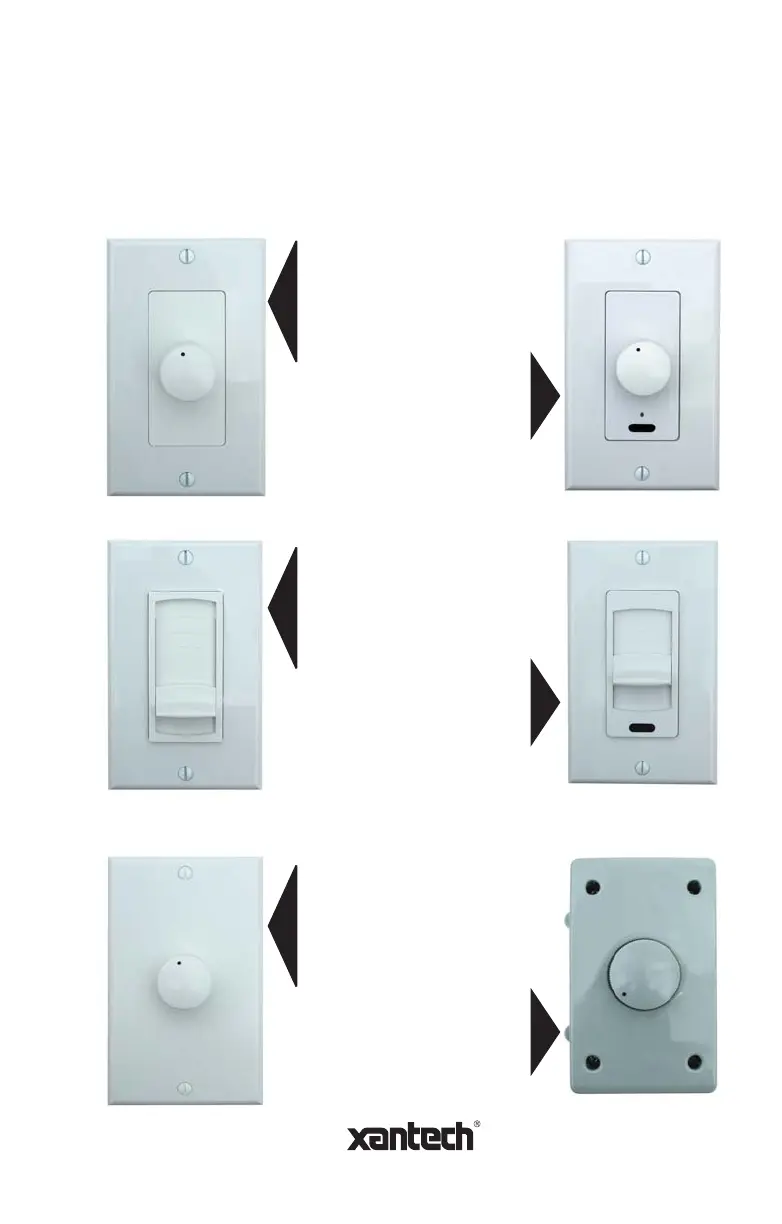

INSTALLATION INSTRUCTIONS
XANTECH VOLUME CONTROLS
Installation Instructions
XVC Series Volume Controls
Xantech’s premier product line of XV volume controls are in-wall
mountable stereo speaker volume control with impedance
matching capability. From one to eight pairs or stereo speakers
may be driven from one stereo power amplifier, using an equal
number of XV volume controls. It maintains correct impedance
matching between the amplifier and the speakers by the use of
instant setting jumpers on the control. This eliminates the need
for separate impedance matching components in multi-room
installations.
Features and Benefits
• XVC50, XVD50, XVC50
Power handling: 50 Watts continuous, 150 Watts peak
• XVC100, XVD100, XVCS100, XVCO100, XVCD100IR, XVCS100IR
Power handling: 100 Watts continuous, 300 Watts peak
• All Models
Adjustable impedance matching for up to 8 speaker pairs
(1, 2, 4, 8 pairs)
Attenuation: 11 steps plus Off; max 42 dB
Frequency response: 20Hz-20kHz ±1 dB
Speaker Terminals: 16 gauge, Quick Connect (detachable)
Mounting: Minimum 20 cu. in. J-box or Mud Ring.
Note: Be sure to check fit before choosing J-boxes!
Isolated left- and right-channel grounds ensure safety with any bridged
amplifier.
Fluid, pop-free switching during volume adjustments.
Compatible with 4-, 6-, or 8-ohm speaker systems.
UL Listed to comply will all local building codes.
Installation requires only a screwdriver and wire strippers.
Installation Requirements
You will need at the very least, a ⅛” slotted screwdriver, a ¼”
slotted screwdriver, wire cutters and wire strippers.
The recommended speaker wire to be used is 16-gauge
stranded copper speaker wire. For runs longer than 100 feet, we
recommend 14-gauge stranded copper speaker wire. Never use
solid-core wire such as aluminum or Romex wire.
Most installations in the United States require a special fire
rated wire (CL-2 or CL-3) for speaker wire installed within a wall.
Consult your local building codes to find out what kind of wire is
required.
Be sure to observe proper polarity when connecting a system.
The positive terminals should always be connected to the
positive wire. The negative terminals should always be
connected to the negative wire. Failure to do so will result in
poor phasing and possible system malfunctions.
Some areas allow the installation of the volume control to be
placed in the same junction box as a high voltage connection
(120VAC) and divided by a low-voltage partition. This is not
recommended as the speaker wires may pick up interference
from the high voltage (120VAC) power lines. Again, consult your
local building codes to verify the proper way to install the
product.
