TV stand
FS2000

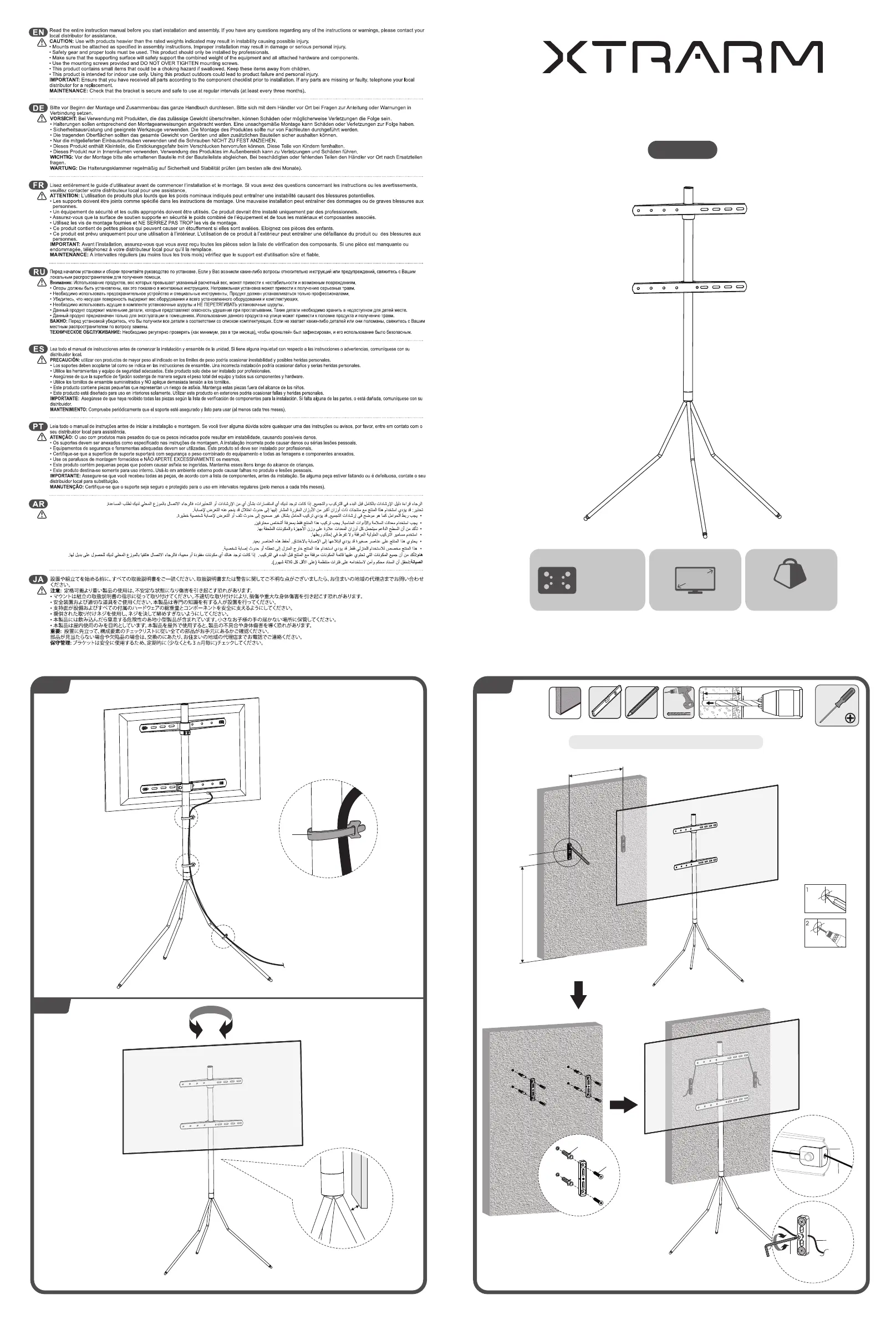

INSTALLATION MANUAL
6 7b
7a
40mm
(1.6")
ø7mm
(ø 9 /32")
F
F
G
To avoid TV falling, anti-fall wire rope should be installed.
Please make sure the screen
doesn't touch the legs.
400-650mm
1100-1350mm
a
±180°
J
I
K
L
H
100x100/100x200
200x100/200x200
200x300/300x200
300x300/300x400
400x200/400x300
400x400
30kg
66lbs
55"
C2
C1
5
M5x14 (x4)
M-A
M6x14 (x4)
M-B
M6x30 (x4)
M-C
M8x30 (x4)
M-D
(x4)
M-F
(x8)
M-G
(x8)
M-H
M8x50 (x4)
M-E
A (x1)
4mm (x1)
M
B (x3) C1 (x1) C2 (x1) D (x1) E (x3)
4b
2
3
1
4a
M-F
M-A
G
M-F
M-G
M-C
M-D
H
M-F
M-B
M-F
M-A
M-F
M-H
M-C
M-D
H
M-F
M-H
M-C
M-D
H
M-G
M-G
M-F
M-H
M-E
H
M-F
M-H
M-E
H
M-G
M-F
M-H
M-E
H
M-F
M-G
M-C
M-D
M-F
M-H
M-C
M-D
M-F
M-H
M-C
M-D
M-G
M-G
M-F
M-H
M-E
M-F
M-H
M-E
M-G
M-F
M-H
M-E
C2
C1
M-F
M-B
G
A
M
E
D
B
Note:
Please secure the locking collar
before attaching the TV screen.
Recommended
50-150mm
J
G (x2) H (x2) I (x3) 5mm (x1)
J K (x4) L (x4)F (x1)
