RC-0001 DCBL Remote Installation Instructions
2277 Harbor Bay Pkwy
1.888.880.8368
Alameda, CA 94502

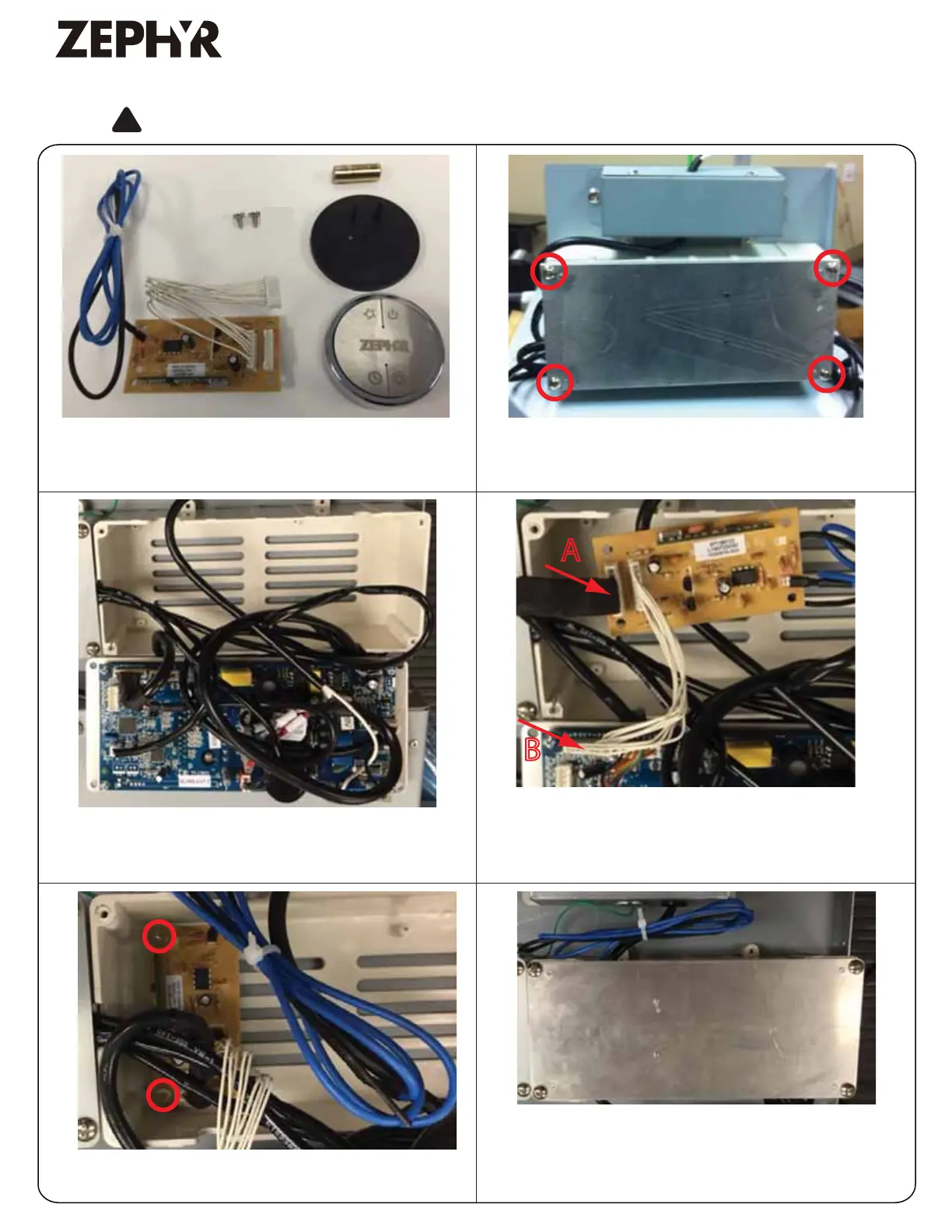

1. Locate Main PC Board on top of blower
housing of hood body. Remove (4) Main
PC Board cover screws.
2. Remove Main PC Board from PC Board box. Use
caution when removing Main PC Board as to not
disconnect any wires
4. Install Remote Module into Main PC
Board box by (2) screws.
5. Re-install Main PC Board into PC Board box.
Be sure blue antenna wire from Remote Module
is outside of PC Board box. Turn to page
2 for remote synchronization & features.
CAUTION: Hood must be disconnected from main power prior to performing the conversion
instructions listed below. Failure to do so could result in personal injury or damage the hood.
!
Inclided Materials: 1 Remote Module w/antenna
wire, 1 Remote control, 1 Remote control holder,
1 battery, 2 screws.
Page 1
3. Disconnect black switch cable A from Main PC
board and connect it to the Remote Module terminal.
Connect white cable B from Remote Module to Main
PC board switch terminal.
A
B
RF REMOTE MAINTENANCE:
Clean the remote control using non abrasive detergents
Follow instructions below for replacing battery.
door (A) in order to access the battery compartment. FIG. 2.
Remove the battery and replace with battery type A23 12V.
Negative end of battery should face the spring inside the remote.
Re-install battery door and recycle old battery.
Blower On / Speed Selection
Press to power on blower and cycle through all six blower speeds.
Blower On / Power Off
By pressing , the blowers will power on at the last speed setting. Press
again and the entire hood will power off, including lights.
Delay Off
Lights On / Dim / Off
Switch lights On by pressing once, again to dim and again to switch Off.
Blower On/
Speed Selection 1
1
2
3
4
Blower On/
Power Off
2
5 Min Delay Off 3Lights On/Dim/Off
4
By pressing , the blower and lights will enter Delay Off mode. The
graphic will illuminate on the hood indicating the function is on. The blower
will change to speed 1 and shut down after 5 minutes.
A
-
+
RF REMOTE FEATURES:
The RF remote control is equipped with a magnet on the back for easy
storage. The remote may be placed on any magnetic surface such as a
refrigerator or the Zephyr remote holder, FIG. 1. The remote holder can
be inserted into a standard electrical outlet for easy storage. Note: The
remote holder does not charge the RF remote.
Maximum remote control communication distance is 15 feet from the hood.
FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer
or peripheral device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device
may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause
undesired operation.
RF REMOTE FUNCTIONS:
This remote control may operate in humid environments, but not when placed on a wet surface.
FIG. 1
FIG. 2
SYNCHRONIZATION: To create a unique link between your range hood and remote control please follow the below steps:
1. With range hood off, press and hold the “lights” button on the range hood until the LCD screen blinks on and off.
2. Press the “lights” button on the remote, the lights on the hood will turn on. The synchronization is complete.
2277 Harbor Bay Pkwy
1.888.880.8368
Alameda, CA 94502
Page 2
