Sida 1/102

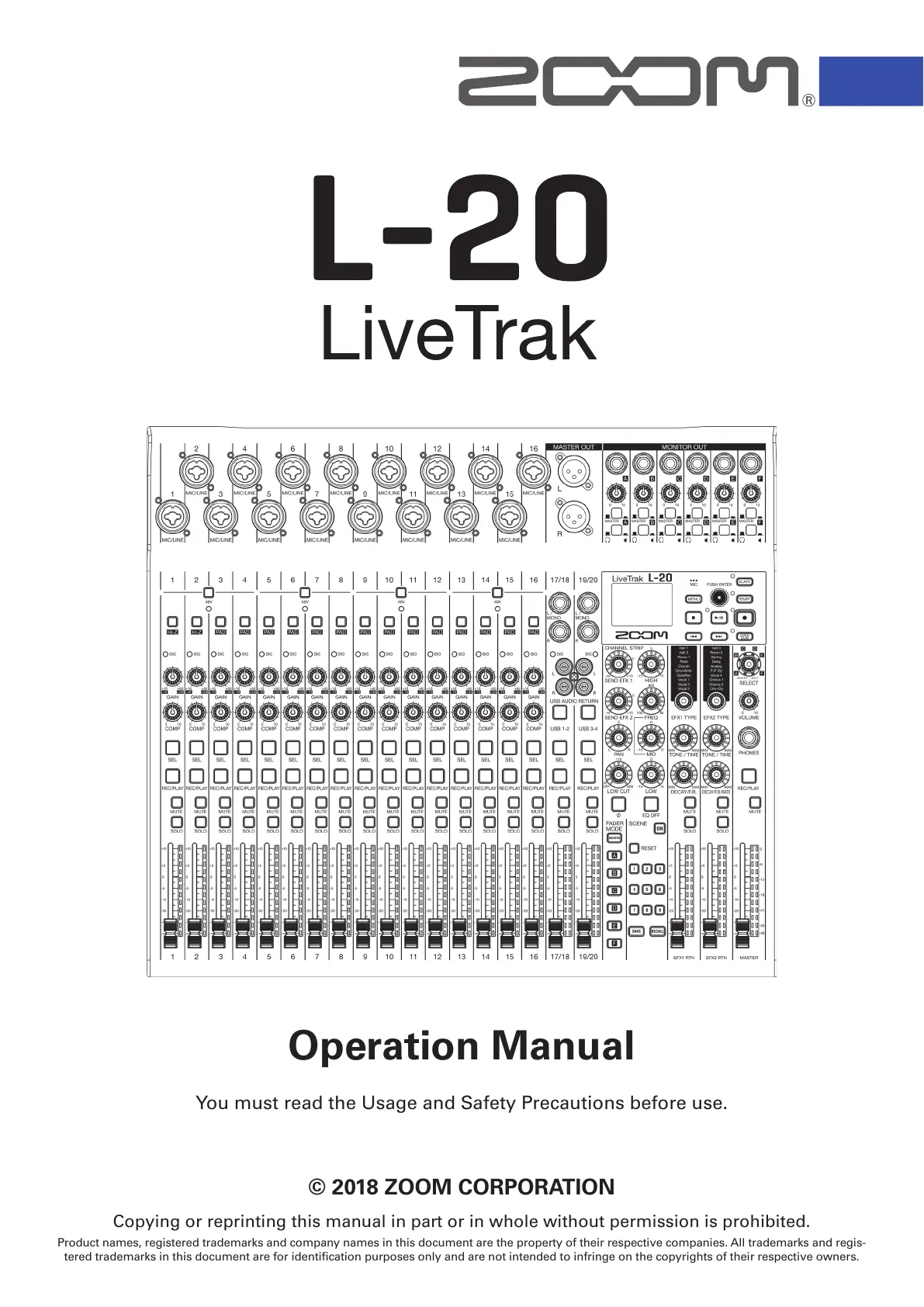

Operation Manual overview
You might need this manual in the future. Always keep it in a place where you can access it easily.
The contents of this document and the speci cations of the product could be changed without notice.
• Windows® is a trademark or registered trademark of Microsoft® Corporation.
• Macintosh, macOS and iPad are trademarks or registered trademarks of Apple Inc.
• The SD, SDHC and SDXC logos are trademarks.
• The Bluetooth® word mark and logo are registered trademarks of Bluetooth SIG, Inc. and these marks
are used under license by Zoom Corporation. Other trademarks and trade names are the property of
their respective companies.
• Other product names, registered trademarks and company names in this document are the property of
their respective companies.
Note: All trademarks and registered trademarks in this document are for identi cation purposes only and
are not intended to infringe on the copyrights of their respective owners.
Recording from copyrighted sources, including CDs, records, tapes, live performances, video works and
broadcasts, without permission of the copyright holder for any purpose other than personal use is prohibit-
ed by law. Zoom Corporation will not assume any responsibility related to infringements of copyrights.
1
Introduction
Thank you very much for purchasing a ZOOM LiveTrak (hereafter, " has the fol").The -
lowing features.
20-channel digital mixer & multitrack recorder
The combines a digital mixer with 20 total input channels (16 mono and 2 stereo), a multitrack re-
corder that can simultaneously record up to 22 tracks, and a 22-in/4-out USB audio interface. Compact
and lightweight, this digital mixer is easy to transport and can even be used with PA systems for live per-
formances in rehearsal studios, cafés and other small venues.
High-quality mic preamps
The has high-quality mic preamps built-in for 16 channels. The high-quality analog inputs, which
can provide +48V phantom power, have a 128dBu EIN rating and +60dB maximum input gain. In addi-−
tion, channels 1 and 2 also support Hi-Z input, while channels 3 to 16 have PAD functions (26dB attenua-
tion), enabling them to accept high levels of input.
6 MONITOR OUT channels
In addition to the MASTER OUT, the also has 6 MONITOR OUT channels. The MONITOR OUT mixes
can be set separately for each output, enabling different mixes to be sent to individual performers. More-
over, they support output to both headphones and monitor speakers.
Digital mixer that can be operated intuitively
Opening menus is not necessary with the . Every mixer parameter can be controlled with knobs
and keys just like an analog mixer. Each channel has a 3-band EQ, and the mono channels have compres-
sor functions. The mixer also includes high-quality send effects. In addition, up to 9 mixer status scenes
can be saved in the unit.
Recorder can simultaneously record 22 tracks and play 20 tracks
The can simultaneously record every channel and the master fader stereo signal output for a total
of 22 tracks. Since the recorded data is saved in 16/24-bit, 44.1/48/96kHz WAV format, the les can easily
be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as
expected with a multitrack recorder.
22-in/4-out USB audio interface
The can be used as a 22-in/4-out USB audio interface. The signals from each input and the master
fader output can be recorded in a DAW. In addition, signals output from a computer can also be assigned
to a stereo channel.
Class compliant mode, which enables connection with iOS devices, is also supported.
Operate the from an iPad using a controller app
By connecting a BTA-1 or other ZOOM-speci c wireless adapter (sold separately) and using the dedicated
controller app, the can be operated from an iPad. See the ZOOM website (www.zoom.co.jp) for the
controller app.
2
