LIMITED WARRANTY
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from
the date of purchase. Decorative nishes warranted for one year. We will replace at no costs goods that prove defective provided
we are notied in writing of such defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been
properly maintained and used in accordance with instructions. We shall not be responsible for any labor charges or any loss, injury or
damages whatsoever, including incidental or consequential damages. The sole and exclusive remedy shall be limited to the replace-
ment of the defective goods. Before installation and use, the purchaser shall determine the suitability of the product for his intended
use and the purchaser assumes all risk and liability whatever in connection therewith. Where permitted by law, the implied warranty of
merchantability is expressly excluded. If the products sold hereunder are “consumer products,” the implied warranty of merchantabi-
lity is limited to a period of three years and shall be limited solely to the replacement of the defective goods. All weights stated in our
catalogs and lists are approximate and are not guaranteed.
Sensor-Operated Battery-Powered
Lavatory Faucets
Z6920-XL
AquaSense®
Z6920-XL Series
Sensor-Operated Lavatory Faucets for
Battery or Plug-In Installations.
Installation,
Operation,
Maintenance
and
Parts
Manual
Patented and Patents Pending
WARNING: Cancer and Reproducve Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproducvo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et eets néfastes sur la reproducon - www.P65Warnings.ca.gov
FV321 Rev. G 7/10/2018
Page 2
IMPORTANT:
ALL PLUMBING IS TO BE INSTALLED IN ACCORDANCE
WITH APPLICABLE CODES AND REGULATIONS.
• FLUSH ALL WATER LINES PRIOR TO INSTALLATION.
• SENSOR UNITS SHOULD NOT BE LOCATED ACROSS
FROM EACH OTHER OR IN CLOSE PROXIMITY TO HIGH-
LY REFLECTIVE SURFACES.
1. - Cover Plate Installation
(For faucets with -CP4 or -CP8 sufx)
Remove adhesive backing from gasket and then pass sensor
connector wire and shank through gasket. Align gasket with
faucet bottom and press rmly together. Pass sensor connector
and shank through cover plate and fasten to the faucet with the
provided screws.
3.- Electronics Module Installation
Attach sensor connector wire from the faucet to the mating sen-
sor connector wire from the eletronics module. Orient connectors
so that the pins are properly aligned before pressing connectors
together. Do not force together, damage to pins may occur.
Secure the cable connectors with the locking ring provided.
Be certain that the cable connection is made before the
batteries are installed.
Attach electronics module to the shank using the hex nut and
gasket provided. Orient the electronics in a convenient location
and tighten hex nut.
DO NOT USE THREAD SEALANT.
2.- Base and Spout Installation
If there is an exsisting faucet, turn off water supply and remove
the old faucet. Assure supply lines are completely ushed and
free of debris. Clean lavatory rim around the mounting area for
the new sensor faucet.
Place the sensor connector wire and shank through cover plate
gasket and hole in the lavatory. Orient black plastic mounting
washer with the slot facing up. Place mounting washer and
star washer over shank and secure the entire assembly to the
lavatory with the mounting nut. The sensor wires must pass
through slot in plastic mounting washer.
*Do not pinch Sensor wires.
Insert white rigid washer provided into top orice of base.
Install spout and secure with spout nut.
*Do not over tighten.
4a.- Battery Installation
Loosen the battery cover screw with the supplied allen wrench.
Remove the cover and install the batteries as indicated on the
battery case. Replace the battery cover and secure.
4b.- ACA Plug-In Adapter Installation
When using the -ACA plug-in power supply remove sticker at
location and plug in adapter. (A)
5.- Filter or Mixing Tee or Mixing Valve
Installation
The supplied inlet lter must be used with every faucet, unless a
mixing tee or mixing valve is ordered. The inlet lter is attached
directly to the electronics module’s water inlet. Tempered water
is then supplied to the lter using a standard 3/8” x 1/2” ball riser
(supplied by others.)
The optional mixing tee assembly (-MT) or mixing valve (-MV)
have integral lters and back checks. These take the place of
the standard inlet lter when ordered. The mixing tee or mixing
valve outlet attaches to the electronics module with a 3/8” x
1/2” ball riser (supplied by others). Hot and cold water is then
supplied to the appropriate 3/8” compression inlets.
FV321 Rev. G 7/10/2018
Page 3

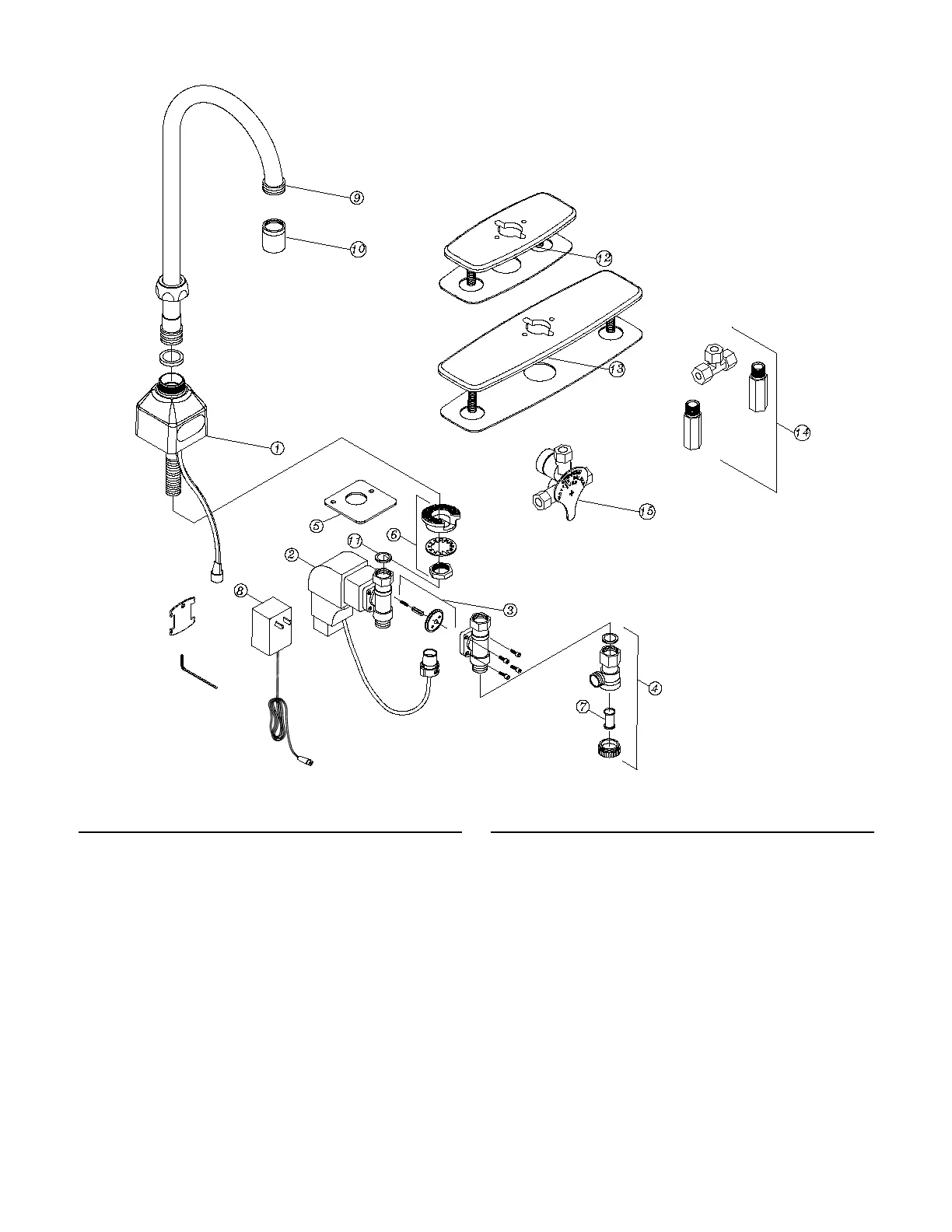

Z6920 Repair Kits
Item Product No. Description
1P6920-XL-1 No Lead Spout Base with Sensor
Assembly
2P6900-B-L-XL Electronics Box with Solenoid
3P6900-SRK Solenoid Rebuild Kit (Diaphram, plunger
and plunger spring)
4P6900-120B-XL Filter Kit
5P6920-42 Base Plate Gasket
6P6920-43 Mounng Kit
7P6900-MV-7
Filter Screen
8P6900-ACA
Oponal Plug-in Power Converter
Item Product No. Description
9P6900-GB
5 3/8” Gooseneck Spout with Nut
10 P6900-20J-GN
1.5 GPM Vandal Resistant Laminar Aerator
11 P6900-SG
Shank Gasket
12 P6920-CP4
4” Cast Cover Plate w/Gasket
13 P6920-CP8
8” Cast Cover Plate w/Gasket
14 P6900-MT-XL
Mixing Tee w/Filters and Back Checks
15
P6900-MV-XL
Mixing Valve w/Filter
P6900-MV-XL
No Lead Mixing Valve w/Filter
