A-NeuVideo ANI-62HDRH Bruksanvisning
A-NeuVideo
Router
ANI-62HDRH
Läs nedan 📖 manual på svenska för A-NeuVideo ANI-62HDRH (20 sidor) i kategorin Router. Denna guide var användbar för 6 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/20
ANI-62HDRH

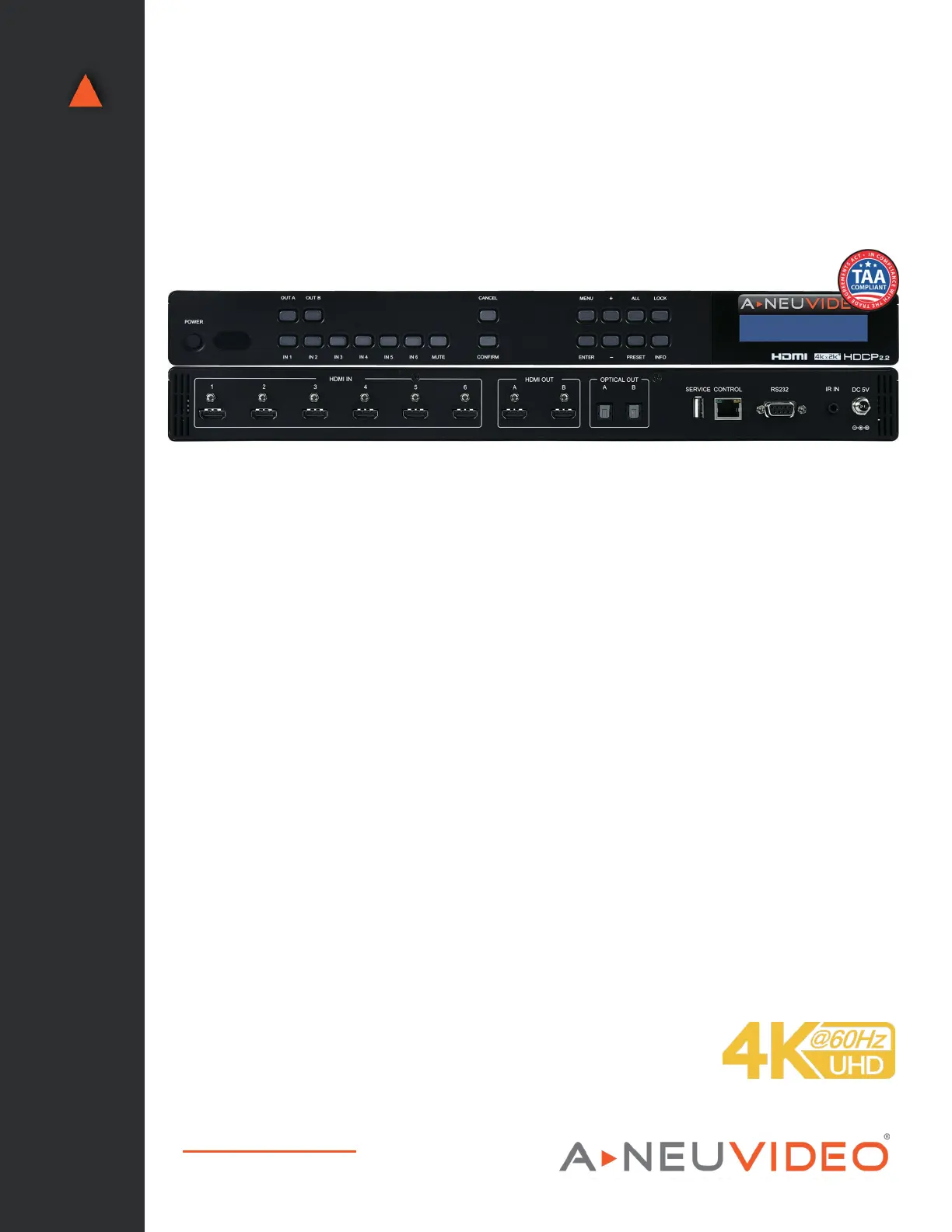

4K UHD+ HDR 6x2 HDMI Matrix w/ Audio De-Embedding
A-NeuVideo.com
Frisco, Texas 75036
INSTRUCTION MANUAL
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are
contained in the box:
• ANI-62HDRH 4K UHD+ 6x2 HDMI Matrix
• Remote Control
• IR Extender Cable
• 5V/3A DC Power Adaptor
• Rack Mount Ears (Set of 2)
SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power o and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualied service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect Input ports rst, then remove the power cable; nally, disconnect the interconnecting cables to
other devices.
16. Do not drive the Inputs with a signal level greater than that required to drive equipment to full Output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualied service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain.
D. The equipment does not appear to operate normally, or exhibits a marked change in performance.
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL.
TABLE OF CONTENTS
A NEUVIDEO
1
CONTENTS
INTRODUCTION ..........................................................................1
FEATURES & SPECIFICATIONS ..............................................2
OPERATION CONTROLS & FUNCTIONS ................................3
REMOTE CONTROL ....................................................................5
RS-232 PROTOCOLS .................................................................6
RS-232 & TELNET COMMANDS ................................................7
TELNET CONTROL ..................................................................10
WEBGUI CONTROL .................................................................11
CONNECTION DIAGRAM ........................................................15
SUPPORTED RESOLUTIONS ................................................16
INTRODUCTION
This 4K UHD+ 6 by 2 Matrix provides the ability to connect up to (6)
4K UHD HDMI sources to up to (2) 4K UHD HDMI displays and freely
switch between them. This unit comes with full support for 18Gbps
(600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit)
as well as support for 16-bit Deep Color (up to 1080p@60Hz), HDR
(High Dynamic Range), HD audio and other features dened by the
HDMI 2.0 specication. With a comprehensive EDID management
feature that includes the ability to select between (6) built in default
EDIDs, or an EDID copied from a connected sink device, this matrix
can solve many interconnectivity problems. Added exibility comes
from the ability to extract audio from each HDMI output’s source and
output it as optical digital audio (LPCM 2.0 and standard Bitstream
only). (6) fully congurable presets are also provided to simplify the
routing process. This unit provides an intuitive set of front panel
controls with associated LCD, as well as RS-232, Telnet, WebGUI,
and IR remote control options. This product has a 3 year warranty.
SYSTEM REQUIREMENTS
• HDMI source equipment such as media players, video game
consoles or set-top boxes.
• HDMI receiving equipment such as HDTVs, monitors or
audio ampliers.
• The use of cables is highly “Premium High Speed HDMI”
recommended.
APPLICATIONS
• Entertainment Rooms & Home Theaters
• Lecture Rooms
• Showrooms & Demo Rooms
• Public Commercial Displays
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
w(8) to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update or
to keep current the information contained in this document.
We reserve the right to make improvements to this document and/
or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
— electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise — without the express written permission and consent.
© Copyright 2020. All Rights Reserved.
Version 1.5 MAR 2021
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
