Sida 1/7

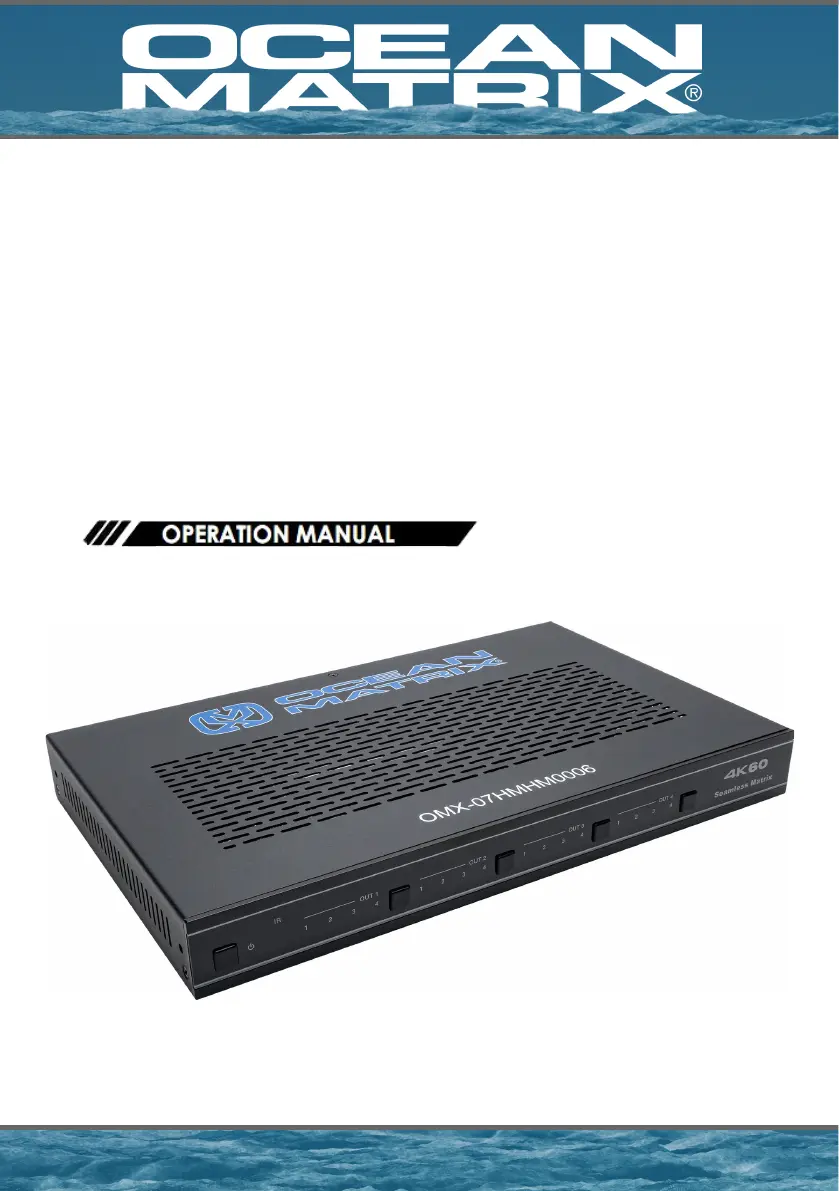

OMX-07HMHM0006
Ocean Matrix 4K@60Hz 4:4:4 HDMI 4x4
Matrix & Video Wall Controller with EDID
Management
HDMI 2.0b and HDCP 2.2 / 1.4 Compliant
Seamless Video Switching
Video Input Supports all Industry Standard Resolutions Including GA-WUXGA (up to 1920x1200 @60Hz) and
480i-4K (3840x2160 @60Hz 4:4:4, 4096x2160 @60Hz 4:4:4)
HDMI Output Supports Upscaling or Downscaling to any Resolution, up to 4096x2160@60Hz 4:4:4
Supports LPCM, DD, DD+, DTS, Dolby TrueHD, and DTS HD-master Audio
Built-In EDID Management
Control and Configure the Matrix Through the Web Interface Module
Control via Front Panel Buttons, Infrared Remote Control, RS-232 and TCP/IP
The Ocean Matrix OMX-07HMHM0006 is an HDMI 4x4 matrix and video wall controller that
supports up to 4K@60Hz 4:4:4 resolutions. The unit can function as a 4x4 seamless matrix switcher
and also supports ten video wall modes. The OMX-07HMHM0006 also features a web browser
interface module for control and configuration of the matrix when used as a stand-alone unit or with
a third party control system. The OMX-07HMHM0006 can be controlled via the front-panel push
buttons, IR remote control, RS-232 interface, and TCP/IP.
Description:
Features:
Specifications:
Inputs: 4 x HDMI Input (Type A, 19-pin Female)
Outputs: 4 x HDMI Output (Type A, 19-pin Female)
Control Interface: 1 x RS-232 (3-pin - 3.81mm Phoenix Terminal), 1 x TCP/IP (RJ45), 1 x IR EXT (3.5mm
Stereo Mini Jack)
HDMI Compatibility: HDMI 2.0
HDCP Compatibility: HDCP 2.2 / HDCP 1.4
Video Bandwidth: 18Gbps
Video Resolution: Input: VGA-WUXGA (up to 1920x1200@60Hz), 480i-4K (3840x2160@60Hz 4:4:4,
4096x2160@60Hz 4:4:4) Output: 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50,
3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb,
1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, auto
Color Space: RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
Color Depth: 8-bit, 10-bit, 12-bit
HDMI Audio Format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res,
DTS-HD Master Audio
Dimensions (LxWxH): 10.625 x 6.5 x 1.192in
Weight: 2.625lbs (1189g)
Power Supply: AC 100~240V 50/60Hz
Power Consumption: 19.56W
Operating Temperature: 32-104°F (0-40°C)
Storage Temperature: 32 - 104°F (0 - 40°C)
#
Name
Function description
1
Power Button
Press button to power on the device
Press and hold this button to enter the standby mode
2
Power LED
The LED will illuminate green when the product is working
normally, and red when the product is on standby
3
IR Window
IR receiver window, it only receives the IR remote signal from
this product
4
Signal source LED
Signal source indicator for the OUT 1 - OUT 4 port
5
Input source
switching button
Input source switching button for the OUT 1- OUT 4 port
Operation Controls and Functions:
Item Includes:
1 x OMX-07HMHM0006
1 x Matrix IR Remote
1 x 3pin-3.81mm Phoenix Connector (male)
1 x 20-60KHz IR Wideband Receiver Cable (1.5 meters)
2 x Mounting Ears
4 x Machine Screws (KM3*4)
1 x 12V/2.5A Locking Power Adapter
Front:
