VER 1.0

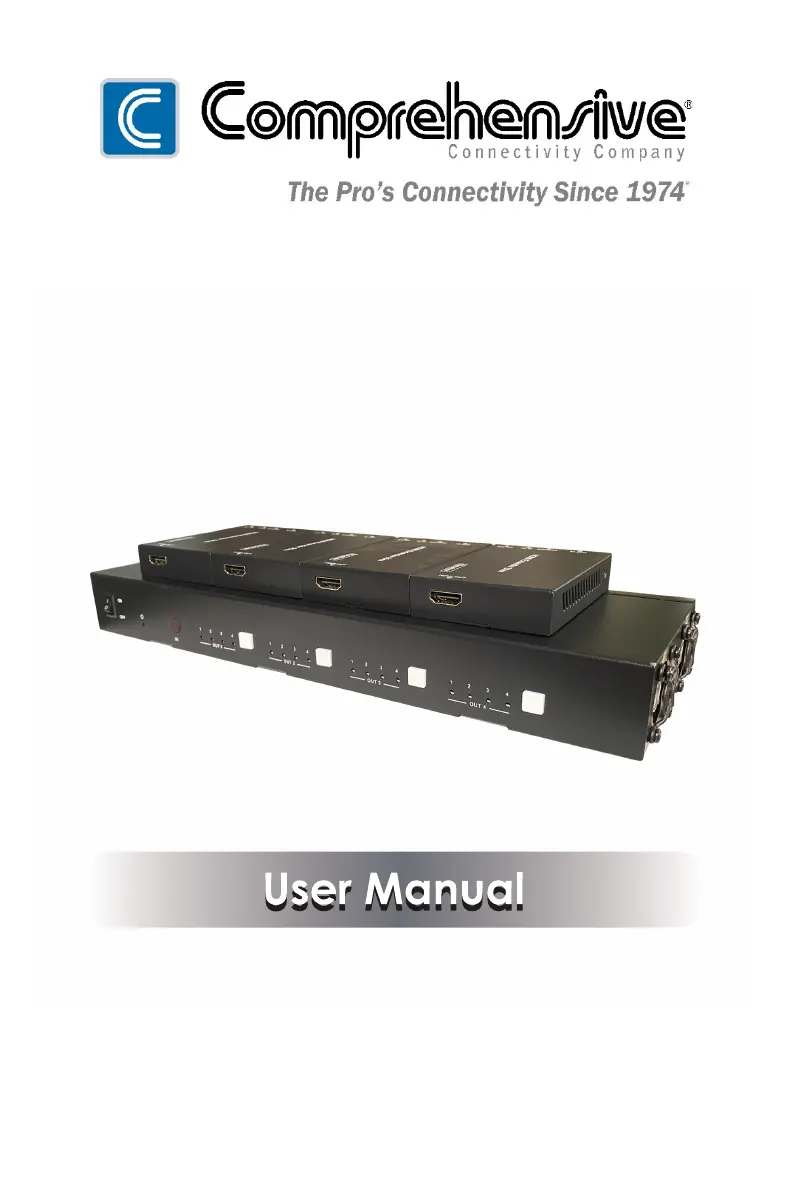

CSW-404MEXTK
Pro AV/IT Integrator Series™ 4x4 HDMI 4K 60Hz 4:4:4 Matrix
Switcher with Control & HDMI Extension up to 230ft
Thank you for purchasing this product
Surge protection device recommended
Table of Contents
For optimum performance and safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future reference.
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric se of surge shock, lighting strikes, etc. U protection systems is highly
recommended in order to protect and extend the life of your equipment.
1. Introduction.....................................................................................................................
2. Features...........................................................................................................................
3. Package Contents............................................................ ............................................
4. Specifications.................................................................. ..............................................
5. Operation Controls and Functions............................. .................................................
5.1. Matrix Panel................................................................ ..........................................
5.2. CAT Receiver Panel........................... ....................... ...................................... .......
6. IR Remote................................. ............................. ....... ............................... ........... ......
7. IR Cable Pin Assignment.................................................. ....... ................................ .....
8. IR Control System.......................................................... ....... ................................... ......
9. EDID Management.......................................................... ....... ............... .................. ......
10. Web GUI User Guide...................................................... ....... .............. .................. ......
11. RS-232 Control Command.................................................. ........... ........................... ...
12. Application Example................................................................ ...................................
1
1
2
2
4
4
5
5
6
6
7
9
16
21
1. Introduction
The 18Gbps 4x4 HDMI Matrix can connect four HDMI sources to eight displays. It features
four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which
runs simultaneously. It supports the transmission of video (resolution is up to 1080p Full HD
and 4Kx2K@60Hz 4:4:4) and supports HD digital audio formats such as LPCM 7.1CH, Dolby
TrueHD, Dolby Digital Plus and DTS-HD Master Audio. Connect a CAT Receiver to each of
the CAT-Cable outputs to extend the HDMI signal up to 230ft/70m for multi-room connectivity.
Each HDMI output supports 4K2K to 1080P downscaler independently. The product supports
one-way IR matrix function. Besides, it can be controlled via front panel buttons, IR remote,
RS-232, LAN, and Web GUI.
☆ HDMI 2.0b and HDCP 2.2/1.x compliant
☆ Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
☆ 4 HDMI inputs, 4 HDMI & CAT mirrored outputs
☆ HDMI ports support 18Gbps lossless uncompressed video bandwidth
☆ Support 4K->1080P Down Scaler for each output port
☆ HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
☆ CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
☆ HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
Master Audio)
☆ Advanced EDID management and CEC control are supported
☆ 12V POC on all CAT ports
☆ Support one-way IR matrix function
☆ Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
2. Features
- 1 / 21 -
