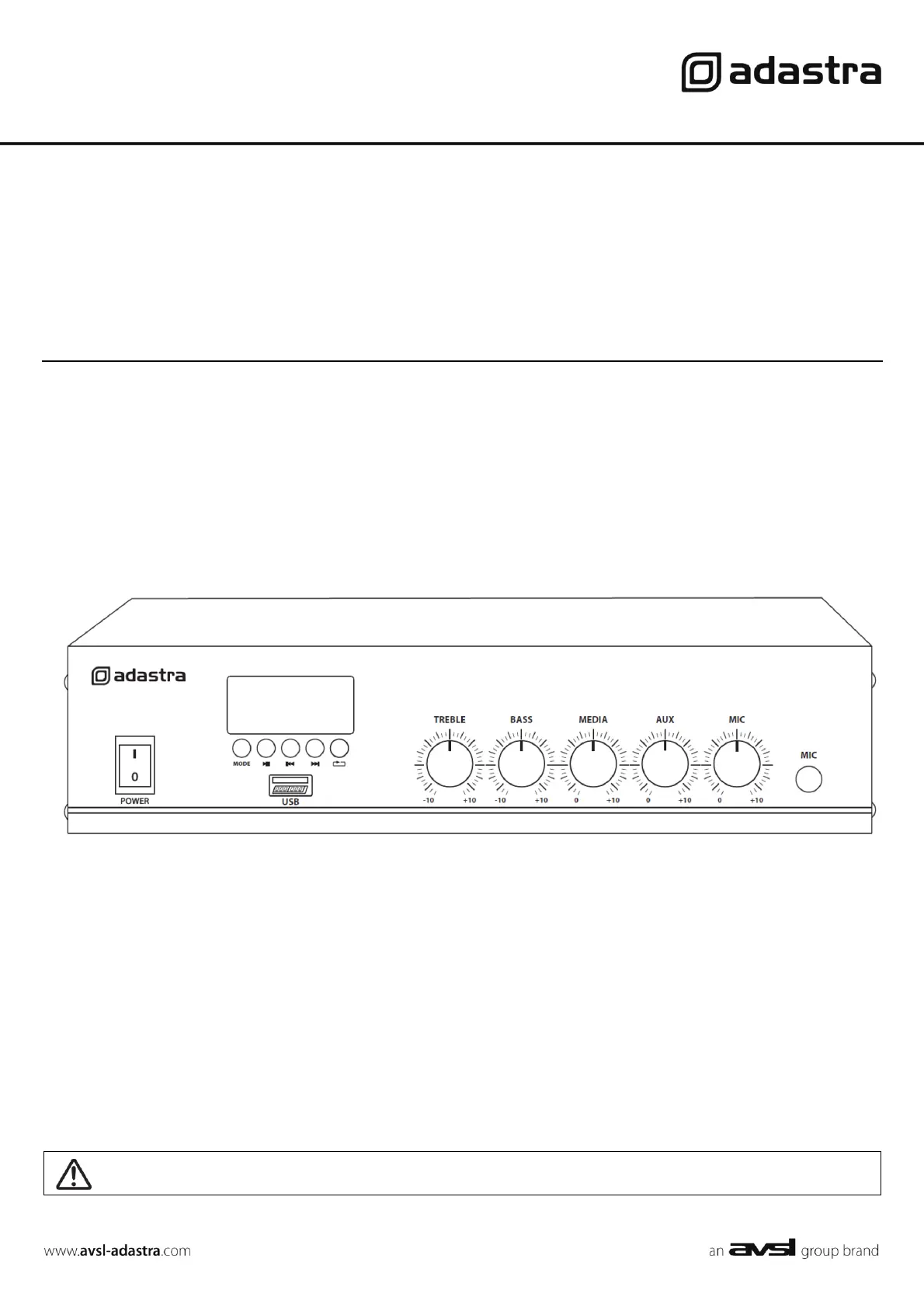

DM25, DM40
Compact 100V mixer-amplifiers
Item ref: 953.108UK, 953.109 UK
User Manual
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
DM series mixer-amplifiers User Manual
Introduction
Thank you for choosing an Adastra DM-series mixer-amplifier as part of your public address system. This unit is designed to offer high
quality, dependable service for mobile and installed systems.
Please read this manual to gain the best results from your product and avoid damage through misuse.
SAFETY SYMBOL AND MESSAGE CONVENTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS
RISQUE DE CHOC ELECTRIQUE NE PAS
OUVRIR
This symbol indicates that dangerous voltage constituting a risk of electric shock is
present within this unit
This symbol indicates that there are important operating and maintenance instructions in
the literature accompanying this unit.
SAFETY NOTICE
1. Prior to use, read through this manual
2. Keep the manual in good condition
3. Pay attention to safety warnings
4. Observe all operating requirements
5. Do not use the device near water or wet areas
6. For cleaning, only use a lint-free, dry cloth
7. Install according to the specifications
8. Place away from heat sources or heating appliances
9. Use mains lead provided and avoid damage to cable or connectors
10. Unplug power from mains during stormy weather or if unused for long periods
11. In case of malfunction, water ingress or other damage, consult qualified service personnel
12. Do not place in damp areas or near liquids or moisture. Do not spill liquids on the housing
13. Please pay attention to warning symbols during transit and placement
14. Terminals marked with the symbol are HAZARDOUS LIVE and should only be connected by qualified personnel
15. Ensure that the apparatus is connected to a mains socket with a protective EARTH connection
16. Ensure correct operation of the mains switch
Warning
To prevent the risk of fire or electric shock, do not expose any components to rain or moisture.
If liquids are spilled on the casing, stop using immediately, allow unit to dry out and have checked by qualified personnel before
further use. Avoid impact, extreme pressure or heavy vibration to the case
No user serviceable parts inside Do not open the case refer all servicing to qualified service personnel. – –
Safety
• Check for correct mains voltage and condition of IEC lead before connecting to power outlet
• Use double insulated speaker wire with adequate current rating for 100V speaker connections
• Do not use 4- and 100V terminals at the same time 16Ω
• Do not connect 8Ω speakers to the 100V terminal or 100V speakers to the 8Ω terminal
• Do not allow any foreign objects to enter the case or through the ventilation grilles
Placement
• Keep out of direct sunlight and away from heat sources
• Keep away from damp or dusty environments
• For rack-mounting, use an appropriate shelf unit (e.g. 853.055UK) and ensure adequate support
• Ensure adequate air-flow and do not cover cooling vents at the front and rear of the amplifier
• Ensure adequate access to controls and connections
Cleaning
• Use a soft cloth with a neutral detergent to clean the casing as required
• Use a vacuum cleaner to clear ventilation grilles of any dust or debris build-ups
• Do not use strong solvents for cleaning the unit
DM series mixer-amplifiers User Manual
Front panel
Rear panel
Connection and setup
Connect the rear IEC inlet (17) to the mains using the supplied mains lead (or an equivalent
approved type). Ensure that the mains voltage is correct and that the mains outlet is switched on.
Connect any line level audio inputs to the Aux input (12) on the rear panel using RCA leads.
Connect a microphone (if required) to the front panel jack input (10).
Further amplifiers can be connected from the rear Out RCA sockets (11).
The DM series amplifiers can be used either with 100V line or standard low impedance speakers.
These 2 configurations cannot be used together, so it is important to decide which method will be
used at the start.
Speaker connections are provided as spring terminals on the rear panel (13, 14, 15)
Wiring is described for each type of speaker system on the following page.
Next to the speaker connections is a spring terminal for FM Antenna (16)
This should be connected to the core of an antenna cable for good FM radio reception (if required)
NOTE: Do not connect a speaker output to the antenna by mistake. This may carry high voltage.
1.
Power on/off switch
2.
Media player display
3.
USB media port
4.
Media player mode & transport controls
5.
Treble EQ
6.
Bass EQ
7.
Media player level
8.
Auxiliary input level
9.
Microphone level
10.
Microphone input jack
11.
Aux output connectors (RCA)
12.
Aux input connectors (RCA)
13.
COM speaker terminal
14.
4- 16Ω speaker terminal
15.
100V speaker terminal
16.
FM antenna connection
17.
IEC mains inlet & fuse holder
