CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
Mop Sinks are designed and constructed for the use of mop cleaning and associated activity.
Advance Tabco does not recommend product use for any food preparation or activities employing
harsh and active chemicals. Please consult factory regarding unusual applications.
Edgewood, New York 11717-8380 © ADVANCE TABCO MARCH 2007

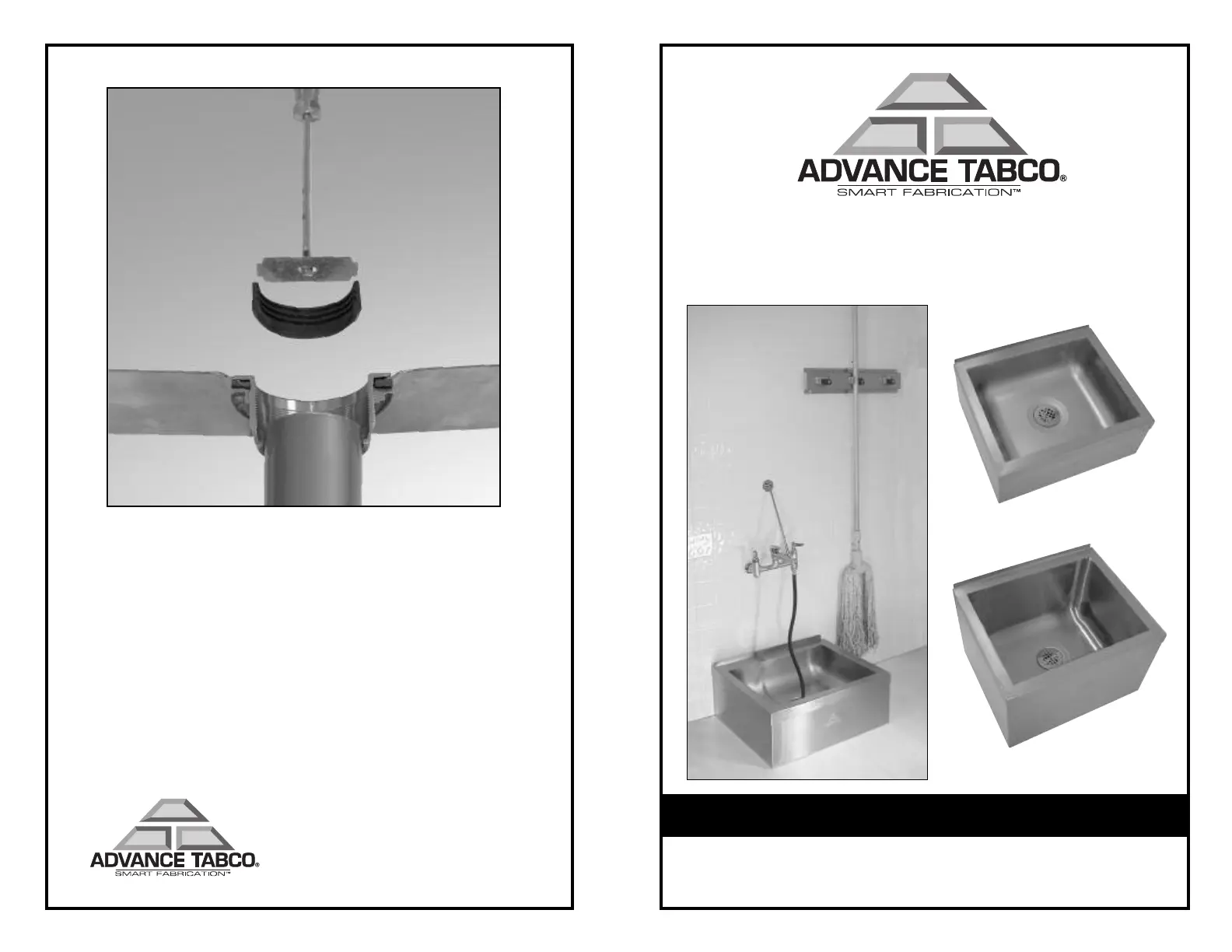

Installation Instructions for
Floor Mounted Mop Sinks
Step 4:
Insert Rubber Gland over 2" I.P.S. Stub Pipe (Use liquid soap on
Gland for easy installation). Thread Brass Compression Nut over
Rubber Gland.
Insert Drain Key into Brass Compression Nut (Figure 3).
Using flat blade screw driver, tighten Compression Nut to ensure tight
seal between Rubber Gland and 2" Pipe Stub as shown in Figure 4.
Remove Drain Key and secure Strainer Plate to top of Drain.
Figure 4
Contents:
(1) Mop Sink
(1) "Z" Mounting Bracket
(1) Drain
Tools Required:
(1) Drain Key (Included with Drain)
(1) Large Flat Screw Driver
SECTION VIEW OF DRAIN ASSEMBLY

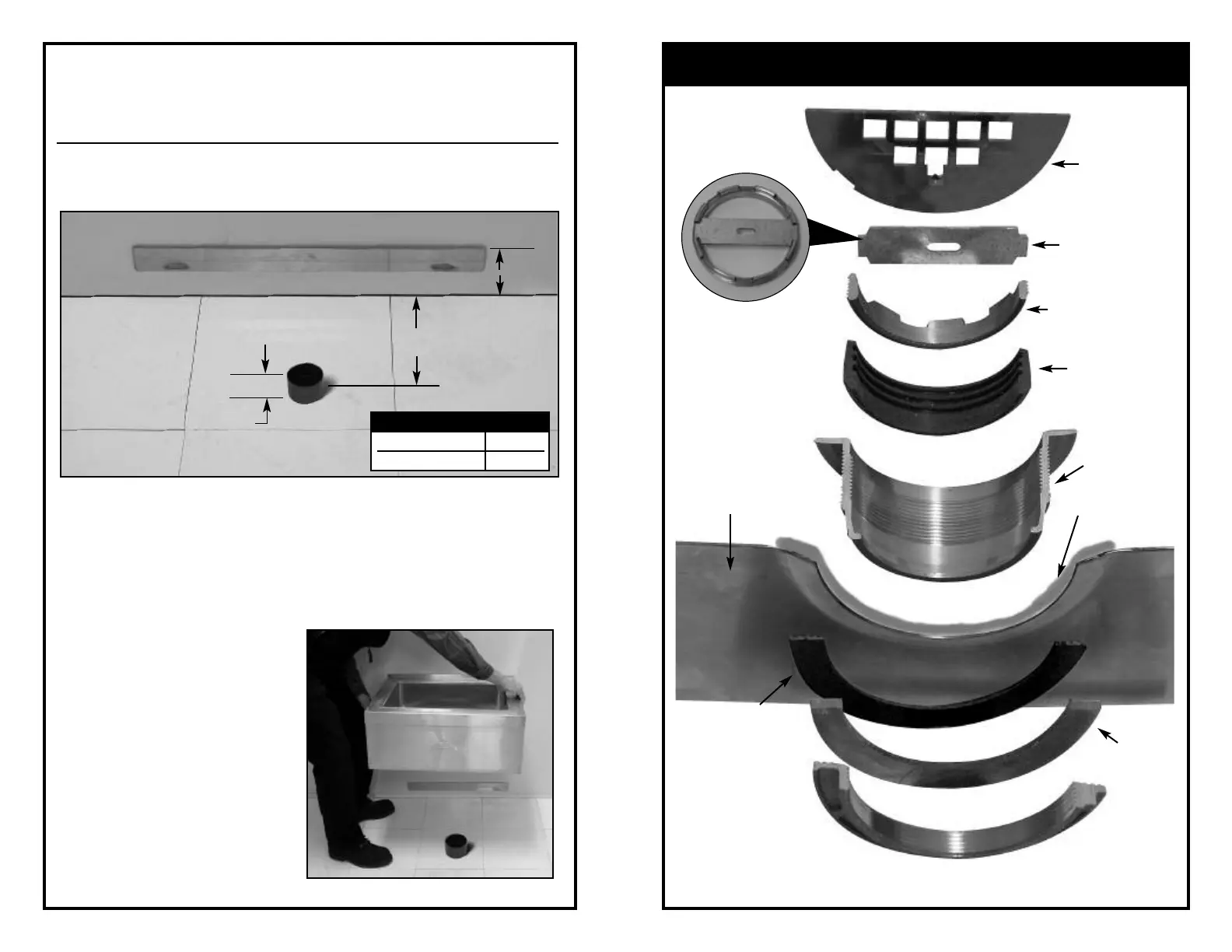

Step 1:
Install "Z" Mounting Bracket 2-1/4" above finished floor shown in Figure 1.
NOTE: Hardware not included.
Step 2:
Assemble Mop Sink Drain to Mop Sink.
NOTE: Do Not install top Strainer Plate, Rubber Gland or
Brass Compression Nut at this time.
Step 3:
Position Mop Sink over 2" I.P.S. stub Pipe while securing rear strap onto
"Z" Mounting Bracket (Figure 2).
Figure 1
X
C
L
Pipe Stub
3" Above
Finished Floor
2-1/4"
Figure 2
NOTE:
2" Pipe Stub must protrude
3" above finished floor for
proper installation.
Recommend using Silicone
Sealant between bottom of
Mop Sink Apron and floor.
Figure 3
View Showing
Drain Key inside
Brass
Compression
Nut
Strainer Plate
Drain Key
Brass
Compression Nut
Rubber Gland
Sink Bottom
Drain Body
Plumbers
Putty
Rubber Washer
Fiber Washer
Locking Nut
OP-20 & OP-40 10-1/2"
OP-28 & OP-48 12-1/2"
MODEL # "X"
Produktspecifikationer
| Varumärke: | Advance Tabco |
| Kategori: | Sjunka |
| Modell: | 9-OP-40DF |
