CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
Mop Sinks manufactured by ADVANCE TABCO are designed and constructed for the use
of mop cleaning (See Mop sink Instruction Guide). ADVANCE TABCO does not
recommend product use for activities employing harsh and active chemicals.
Please consult factory regarding unusual applications.
Edgewood, New York 11717-8380
© ADVANCE TABCO DECEMBER 2008
Installation Instructions for
16” High Side & Back Splashes
for 9-OP Series Mop Sinks
Contents:
Side Splash
Rear Splash
Splash Mounting Hardware
Tools Required:
Drill Motor
1/8” & 3/8” Drill Bits
Center Punch
Screwdriver
7/16” Wrench

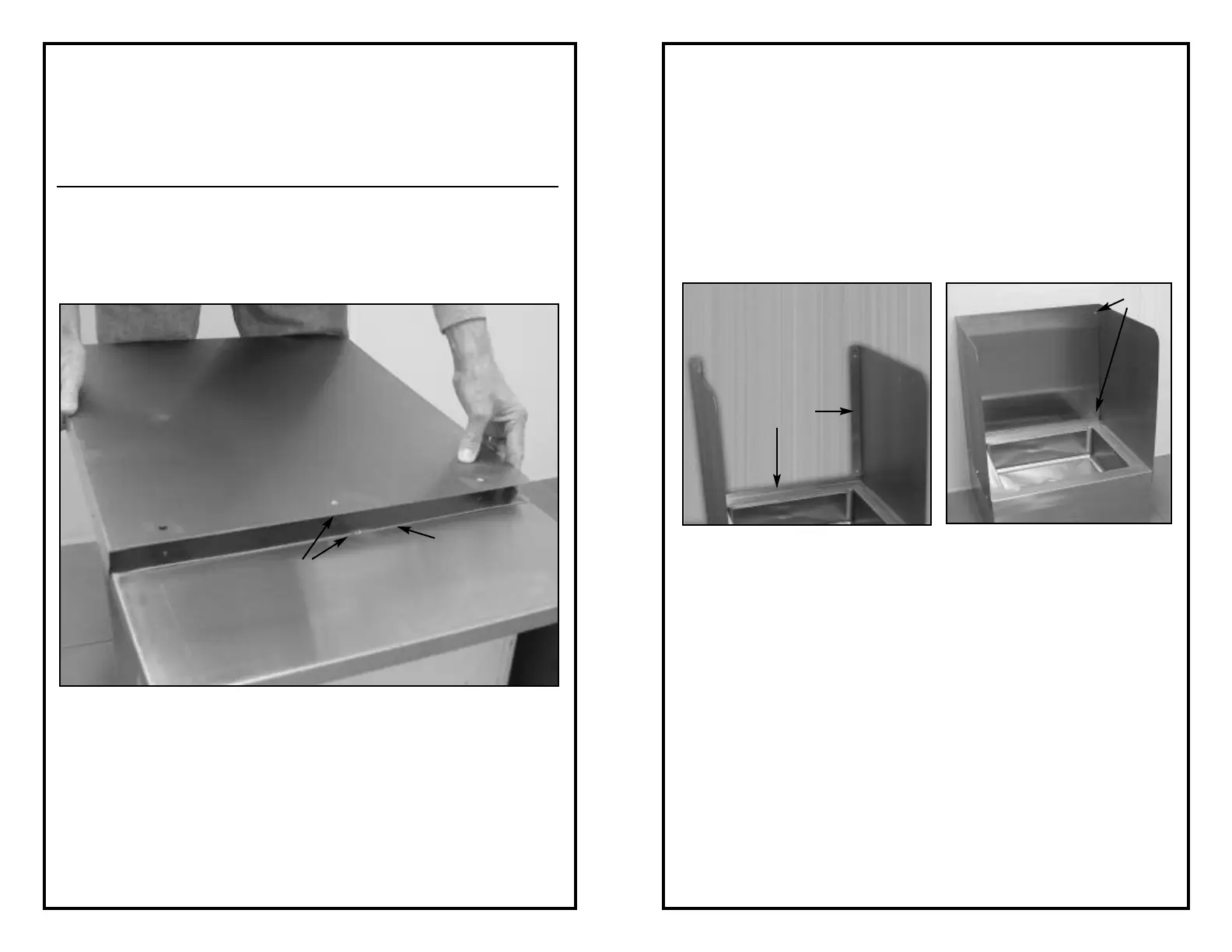

Step 1:
Align bottom edge of Side Splash with bottom Seam of Mop Sink. Mark
(3) holes.Drill 3/8” diameter holes and mount Side Splash with Hardware
provided ( ). Repeat opposite side if applicable.Figure 1
Figure 1
Align Bottom
Edges
Seam Edge
MOP SINK
SIDE SPLASH
Step 2:
Assemble Mop Sink Drain and position onto 2” IPS Pipe Stub per Mop
Sink Installation Guide.
Step 3:
Apply bead of Silicone to Vertical Flange of Side Splash and along
Rear Flange of Mop Sink. Position Rear Splash such that offset Flange
at bottom fits over Rear Flange of Mop Sink.
Align holes (Rear Splash/Side Splash) and secure to wall. Hardware
not provided ( ).Figure 2 & 3
Installer may choose to use adhesive to glue Side/Rear Splash to wall.
Page 2 Page 3
Figure 2 Figure 3
Step 4:
Apply bead of Silicone to vertical and horizontal joints at
Side/Rear splash.
Step 5:
Complete Drain installation per Mop Sink Installation Guide.
Align
Silicone
