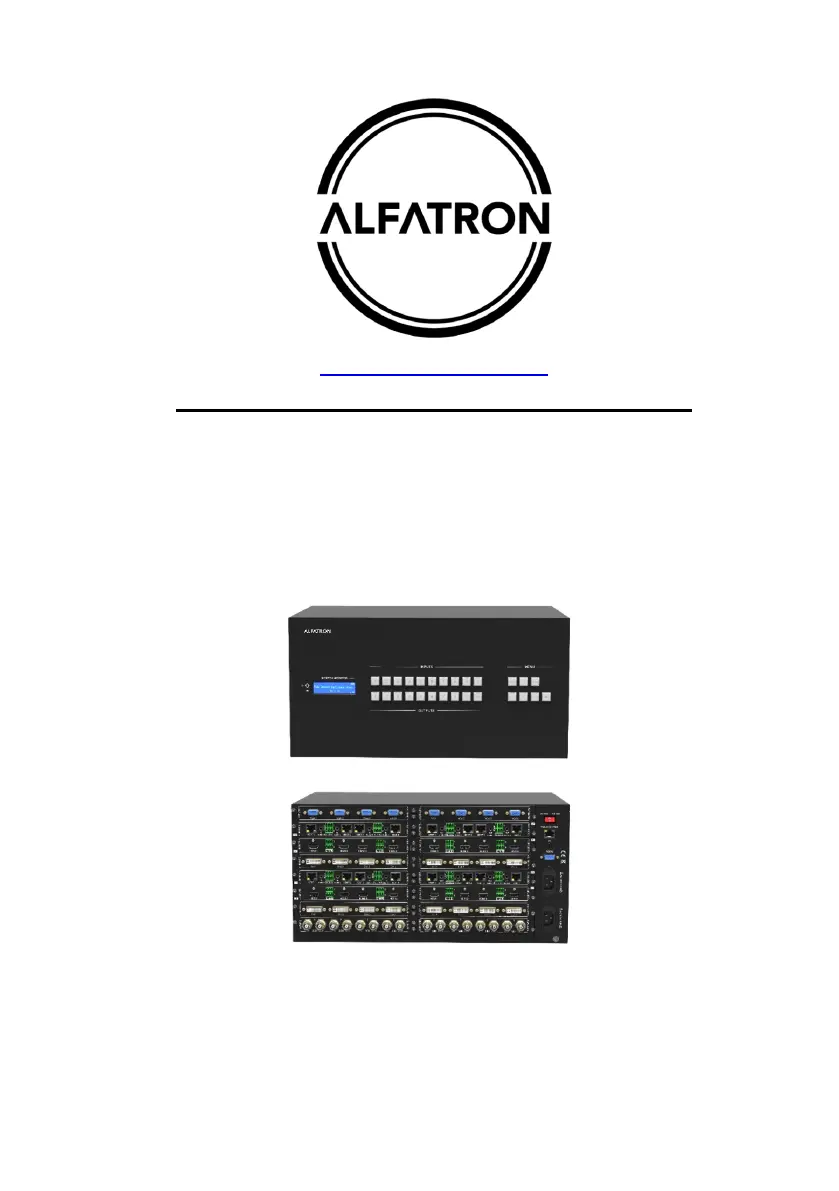

www.alfatronelectronics.com

ALFATRON ELECTRONICS GmbH GERMANY

ALF- A-N MMX3232

Modular 32x32 Matrix Switcher

Version: ALF N - A-MMX3232 2021 3.V 2

ALF- -N MMX3232A

Preface

Read this user manual carefully before using the product. Pictures are shown in this

manual for reference only. Different models and specifications are subject to real

product.

This manual is only for operation instruction, please contact the local distributor for

maintenance assistance. The functions described in this version is updated as of

December, 2019. In the constant effort to improve the product, we reserve the right to

make functions or parameters changes without notice or obligation. Please refer to the

dealers for the latest details.

FCC Statement

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. It has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a commercial

installation.

Operation of this equipment in a residential area is likely to cause interference, in which

case the user at xpense will be required to take whatever measures may be their own e

necessary to the interference.correct

Any changes or modifications not expressly approved by the manufacture would void

the user’s authority to operate the equipment.

Do not dispose of this product with the normal household waste at the end of its life

cycle. Return it to a collection point for the recycling of electrical and electronic devices.

This is indicated by the symbol on the product, user manual or packaging. The

materials are reusable according to their markings. By reusing, recycling or other forms

of utilisation of old devices you make an important contribution to the protection of our

environment. Please contact your local authorities for details about collection points.

ALF- -N MMX3232A

SAFETY PRECAUTIONS

To ensure the best from the product, please read all instructions carefully before using

the device. Save this manual for further reference.

 Unpack the equipment carefully and save the original box and packing material for

possible future shipment.

 Follow basic safety precautions to reduce the risk of fire, electrical shock, and injury

to persons.

 Do not dismantle the housing or modify the module. It may result in electrical shock

or burn.

 Using supplies or parts not meeting the products’ specifications may cause

damage, deterioration, or malfunction.

 Refer all servicing to qualified service personnel.

 To prevent fire or shock hazard, do not expose the unit to rain, moisture or install

this product near liquid.

 Do not put any heavy items on the extension cable in case of extrusion.

 Do not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

 Install the device in a place with fine ventilation to avoid damage caused by

overheat.

 Keep the module away from liquids.

 Spillage into the housing may result in fire, electrical shock, or equipment damage.

If an object or liquid falls or spills on to the housing, unplug the module immediately.

 Do not twist or he ends of the optical cable. It can cause malfunction.forcefully pull t

 Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to

the device before cleaning.

 Unplug the power cord when left unused for a long period of time.

 Information on disposal for scrapped devices: do not burn or mix with general

household waste, please treat them as normal electrical wastes.
