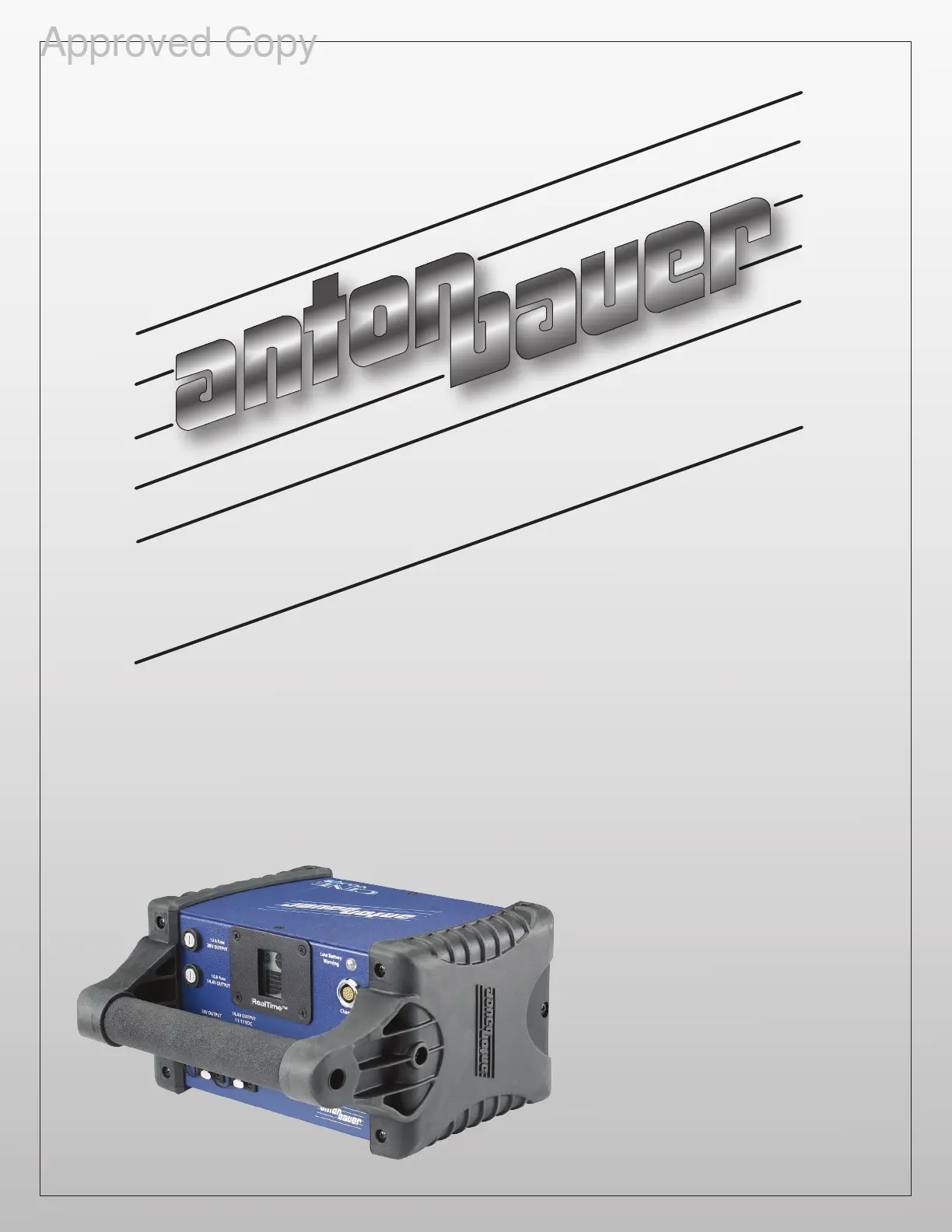

One World. One Smart Choice.™
Owner’s Manual
CINE VCLX/2 BATTERY
7595-0338 Rev D
®
Approved Copy
TABLE OF CONTENTS
1 IMPORTANT
 INTRODUCTION
2-3 FEATURES
 CHARGINGWITHCINEVCLX/2CHARGER
 CHARGINGWITHCINEVCLXCHARGER
4 RealTime®LCD
 LOWBATTERYWARNINGS
5 GUIDELINESFOROPTIMUMPERFORMANCEANDMAXIMUMLIFE
 SERVICE
 SPECIFICATIONS
6 LIMITEDWARRANTY
Approved Copy
1
IMPORTANT
TheCINEVCLX/2BatterycanonlybechargedwiththeCINEVCLX/2oraCINEVCLXcharger.DONOTattempttochargethisbatterywithany
othercharger.
TheCINE
VCLX/2batteryrepresentsthelatestinbatterytechnology.NickelMetalHydride(NiMH)issimilartoNiCadbatteriesinmostcharacter-
istics.However,NiMHhasmoresensitivecharginganddischargingparametersandrequiresalongerchargetimeforoptimumperformance.The
chargetimeisapproximately3hourswiththeCINEVCLX/2chargeror7½hourswiththeCINEVCLXcharger.
ThedevelopmentoftheCINE VCLX/2batterysystemhasbeenmadepossiblebyadvancementsinacelltechnology.Thesenickelmetal
hydridecellsprovidethehighestenergydensitycellavailable.Thehighperformanceofthenewbatteriesisassuredthroughtheincorporation
ofthepioneeringInterActivetechnologyoftheAnton/BauerDigitalsystem.Thebatteryisequippedwithanonboard“fuelcomputer”which
monitorsenergyputintoandtakenoutofeachbattery,aswellascriticaloperatingcharacteristicsandconditions.Thisdataiscommunicated
totheInterActivechargertoensuresafeandoptimizereliableperformance.
Inaddition,remainingbatterycapacityinformationisavailabletotheoperatorbymeansoftheRealTime™LCDdisplayonthebattery.
Thisbatterysurpassesthetraditional“blockbattery”,whichisthemostcommonbatteryusedtopowerlmcameras,byhavinganextraor-
dinarypowerratingof280watthoursor19amperehours.Thesimultaneous28v(regulated)and14.4v(nominal)outputsallowspoweringof
multiplepiecesofequipmentatthesametime.Also,aregulated28voutputallowsyoutopowervirtuallyanylmcamerafromaMovieCamto
anARRI435.
INTRODUCTION
Cine VCLX/2
12A fuse
28V OUTPUT
10A fuse
14.4V OUTPUT
Fuel gauge
LCD
Low battery
warning LED
19 Pin LEMO
Charger
14.4V 4 Pin XLR
OUTPUT
28V 3 Pin XLR
OUTPUT
warningLED
Approved Copy
