RSFR8S

600mm Slideout Rangehood

Features

Stainless Steel front fascia panel

80mm with grey end caps

440m3/hr

Twin motor

Front recirculating

3 speed fan, controlled by slide

switches

2 x Aluminium grease filters

washable, 1 with charcoal inlay

(charcoal inlay not washable)

2 x 40 watt halogen lamps

2 Year Warranty

Specifications

Airflow: 440m3/hr

Noise maximumlevel: 56 dBA

Lighting 2 halogen: x 40 watt

Optional arbonc filter : CF110

Power:

Power: 240 volt / 50Hz

Total wattage: 120 Watts

Fitted plugwith 10amp, 3 pin

Power Cord: 1.5 metre cable

Ducting: 120mm

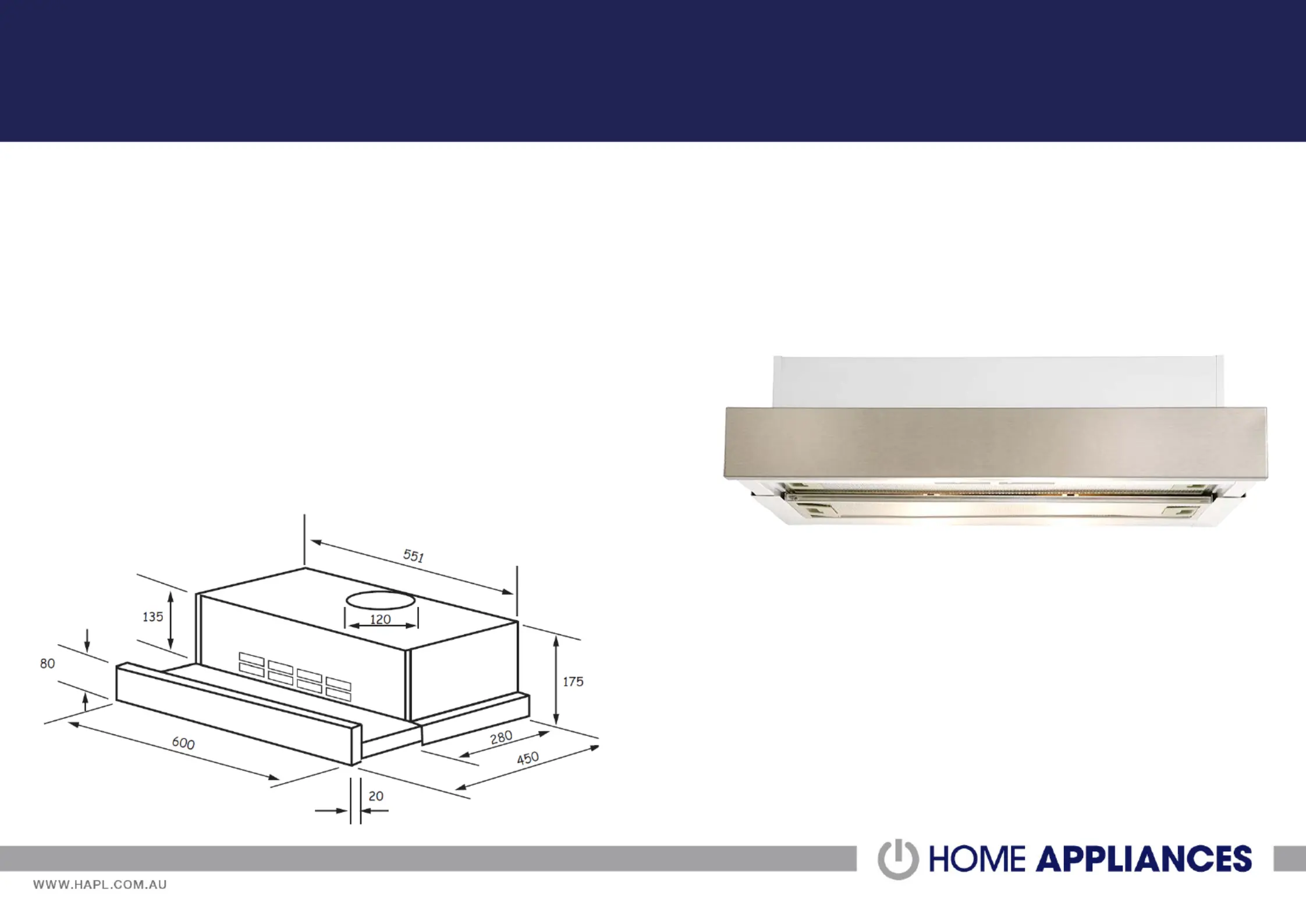

Product Dimensions:

600mm (W) x 175mm (H) x 280 - 450mm* (D)

Cut Out Dimensions:

553mm (W) x 135mm (H) x 280mm# (D) (#

cabinet only))

PLEASE NOTE: Dimensions on the Sales Advice Form are a guide only. For complete dimensions and installation requirements refer to the instruction manual available at www.hapl.com.au
