Contents

Warning, 2

Installation, 3

Positioning and levelling

Electrical connection

Technical data

Description of the appliance, 5

Overall view

Control panel

Start-up and use, 6

Starting the oven

Using the cooking timer

Cooking advice, 9

Oven cooking advice table

Using the glass ceramic hob, 10

Switching the cooking zones on and off

Cooking zones

Precautions and tips, 11

General safety

Disposal

Respecting and conserving the environment

Care and maintenance, 12

Switching the appliance off

Cleaning the appliance

Replacing the oven light bulb

Cleaning the glass ceramic hob

Assistance

Operating Instructions

COOKER AND OVEN

English, 1

WARNING: Unattended cooking on a

hob with fat or oil can be dangerous and

may result in fire.

NEVER try to extinguish a fire with

water, but switch off the appliance and

then cover flame e.g. with a lid or a fire

blanket.

WARNING: Danger of fire: do not store

items on the cooking surfaces.

WARNING: If the surface in glass-

ceramic is cracked, switch off the

appliance to avoid the possibility of

electric shock.

Do not use harsh abrasive cleaners or

sharp metal scrapers to clean the oven

door glass since they can scratch the

surface, which may result in shattering of

the glass.

The internal surfaces of the compartment

(where present) may become hot.

Never use steam cleaners or pressure

cleaners on the appliance.

Remove any liquid from the lid before

opening it.

Do not close the glass cover (if present)

when the gas burners or electric

hotplates are still hot.

WARNING: Ensure that the appliance is

switched off before replacing the lamp

to avoid the possibility of electric shock.

! When you place the rack inside, make

sure that the stop is directed upwards

and in the back of the cavity .

WARNING

During use the appliance becomes hot.

Care should be taken to avoid touching

heating elements inside the oven.

Installation

! Before operating your new appliance please read

this instruction booklet carefully. It contains

important information concerning the safe installation

and operation of the appliance.

! Please keep these operating instructions for future

reference. Make sure that the instructions are kept

with the appliance if it is sold, given away or moved.

! The appliance must be installed by a qualified

professional according to the instructions provided.

! Any necessary adjustment or maintenance must be

performed after the appliance has been

disconnected from the electricity supply.

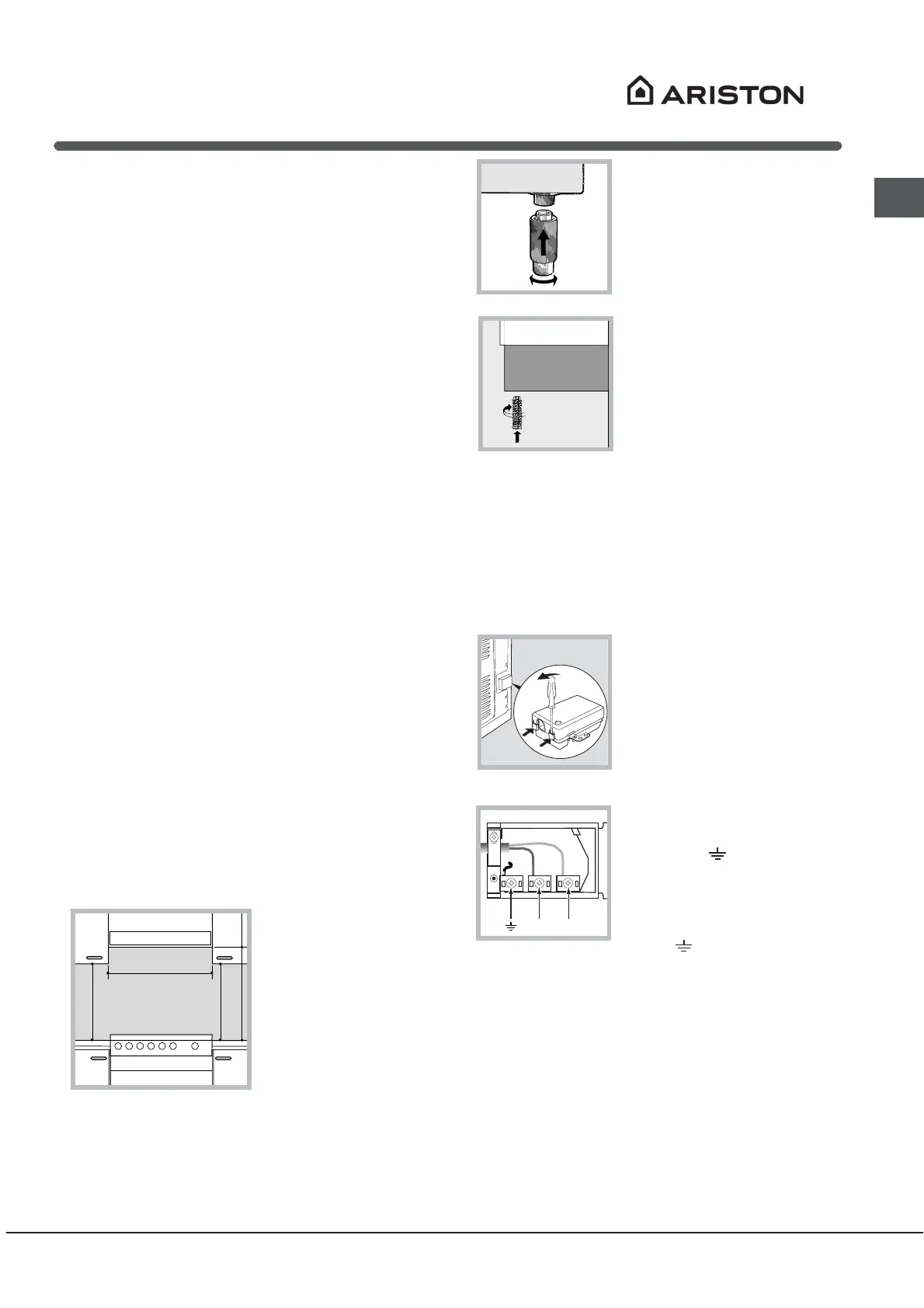

Positioning and levelling

! It is possible to install the appliance alongside

cupboards whose height does not exceed that of the

hob surface.

! This cooker should be installed directly on! This cooker should be installed directly on

! This cooker should be installed directly on

the floor. Do not install this cooker on anthe floor. Do not install this cooker on anthe floor. Do not install this cooker on anthe floor. Do not install this cooker on anthe floor. Do not install this cooker on an

artificial base of any kind.artificial base of any kind.artificial base of any kind.artificial base of any kind.artificial base of any kind.

! Make sure that the wall in contact with the back of

the appliance is made from a non-flammable, heat-

resistant material (T 90°C).

! Important: Do not install this appliance! Important: Do not install this appliance

! Important: Do not install this appliance! Important: Do not install this appliance! Important: Do not install this appliance

adjacent to the door or other means ofadjacent to the door or other means of

adjacent to the door or other means of

access to minimise the likelihood of personsaccess to minimise the likelihood of persons

access to minimise the likelihood of persons

using the door making contact with pans onusing the door making contact with pans onusing the door making contact with pans onusing the door making contact with pans onusing the door making contact with pans on

the hob surface.the hob surface.the hob surface.the hob surface.the hob surface.

To install the appliance correctly:

• Place it in the kitchen, dining room or the bed-sit

(not in the bathroom).

• If the top of the hob is higher than the cupboards,

the appliance must be installed at least 200 mm

away from them.

• If the cooker is

installed underneath a wall

cabinet, there must be a

minimum distance of

420 mm between this

cabinet and the top of

the hob.

This distance should be

increased to 700 mm if

the wall cabinets are

flammable (

see figure

• Do not position blinds behind the cooker or less

than 200 mm away from its sides.

• Any hoods must be installed according to the

instructions listed in the relevant operating manual.

Levelling

If it is necessary to level the

appliance, screw the

adjustable feet* into the places

provided on each corner of the

base of the cooker (

see figure

The legs* provided with the

appliance fit into the slots on

the underside of the base of

the cooker.

Electrical connection

Ovens with a three-pole power supply cable are

designed to operate with alternated current at the

supply frequency and voltage indicated on the data

plate (at the bottom of the oven dashboard). The

earthing conductor of the cable is the yellow-green

conductor.

HOOD

420

Min.

min. 650 mm. with hood

min. mm. without hood700

mm.

600

Min. mm.

420

Min. mm.

Opening the terminal board:

••

••• Using a screwdriver, prise

on the side tabs of the

terminal board cover;

••••• Pull open the cover of the

terminal board.

To install the cable, proceed as follows:

••••• Remove the wire clamp

screw and the three contact

screws L-N-

• Fasten the wires beneath

the heads of the screws using

the following color scheme :

Blue (N) Brown (L) Yellow-

Green

• Fasten the supply cable in place with the clamp

and close the cover of the terminal board.

N L

Connecting the supply cable to the mains

WARNINGS: THIS APPLIANCE MUST BEWARNINGS: THIS APPLIANCE MUST BEWARNINGS: THIS APPLIANCE MUST BEWARNINGS: THIS APPLIANCE MUST BEWARNINGS: THIS APPLIANCE MUST BE

EARTHED.EARTHED.
