AUS
OVEN
FK 617 X AUS
FK 737 CX AUS
FK 737 SCX AUS
FK 617 AUS
FK 737 C AUS
FK 737 SC AUS
Contents
Installation, 2-3
Positioning
Electrical connection
Data plate
Description of the appliance, 4
Overall view
Control panel
Start-up and use, 5
Starting the oven
Using the minute minder
Concealed handle
The electronic cooking programmer, 6
Setting the clock
Setting the minute minder
Programming cooking
Modes, 7-8
Cooking modes
Practical cooking advice
Cooking advice table
Precautions and tips, 9
General safety
Disposal
Respecting and conserving the environment
Care and maintenance, 10-11
Switching the appliance off
Cleaning the appliance
Cleaning the oven door
Replacing the light bulb
Sliding rack kit assembly
Assistance
Operating Instructions
English,1
AUS
2
AUS
! Please keep this instruction booklet in a safe place
for future reference. If the appliance is sold, given
away or moved, please make sure the booklet is also
passed on to the new owners so that they may benefit
from the advice contained within it.
! Please read this instruction manual carefully: it
contains important information concerning the safe
operation, installation and maintenance of the
appliance.
Positioning
! Do not let children play with the packaging material; it
should be disposed of in accordance with local
separated waste collection standards (see
Precautions and tips).
! The appliance must be installed by a qualified
professional in accordance with the instructions
provided. Incorrect installation may damage property
or cause harm to people or animals.
Built-in appliances

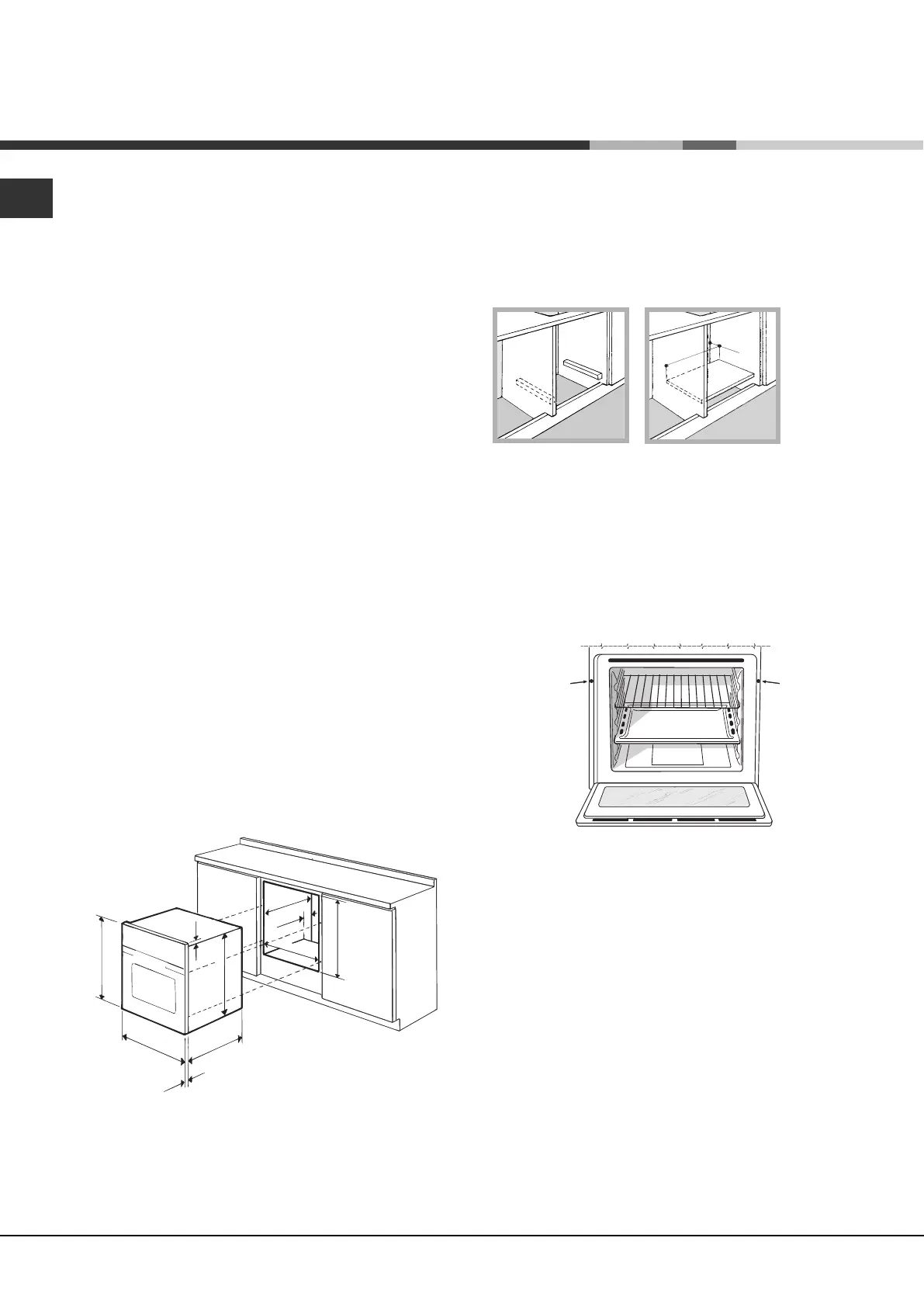

Use an appropriate cabinet to ensure that the
appliance operates properly:
• The panels adjacent to the oven must be made of
heat-resistant material.
• Cabinets with a veneer exterior must be assembled
with glues which can withstand temperatures of up
to 100°C.
• To install the oven under the counter (see diagram)
or in a kitchen unit, the cabinet must have the
following dimensions:
* Stainless steel models only
! The appliance must not come into contact with
electrical parts once it has been installed.
The indications for consumption given on the data
plate have been calculated for this type of
installation.
Ventilation
To ensure adequate ventilation is provided, the back
panel of the cabinet must be removed. It is advisable
to install the oven so that it rests on two strips of wood,
or on a completely flat surface with an opening of at
least 45 x 560 mm (see diagrams).
Centring and fixing
Secure the appliance to the cabinet:
• Open the oven door.
• Remove the 2 rubber plugs covering the fixing holes
on the perimeter frame.
• Fix the oven to the cabinet using the 2 wood screws.
• Replace the rubber plugs.
! All parts which ensure the safe operation of the
appliance must not be removable without the aid of a
tool.
560 mm.
45 mm.
597 mm.
595 mm.
22,5 mm.*
20,5 mm.
550 mm.
570 mm.
20 mm.
575-585 mm.
45 mm.
558 mm. min.
550 mm.
min.
3
AUS
APPLIANCE SPECIFICATIONS
Dimensions
width 43.5 cm
height 32 cm
depth 41.5 cm
Volume 58 l
Electrical
connections
Voltage at 220-240 V~ 50/60 Hz or
50 Hz (see data plate)
maximum power absorbed 2800 W
ENERGY
LABEL
Directive 2002/40/EEC on the
label of electric ovens.
Standard EN 50304
Energy consumption for Natural
convection – heating mode:
Traditional mode
Declared energy consumption
Forced convection class -
heating mode:
Baking.
This appliance conforms to the
following EEC Directives:
2006/95/EEC dated 12/12/06
(Low Voltage) and subsequent
amendments - 2004/108/EEC
dated 15/12/04 (Electromagnetic
Compatibility) and subsequent
amendments - 93/68/EEC dated
22/07/93 and subsequent
amendments. 2002/96/EEC
and subsequent amendments.
Electrical connection
! Ovens equipped with a three-pole power supply
cable are designed to operate with alternating current
at the voltage and frequency indicated on the data
plate located on the appliance (see below).
Fitting the power supply cable

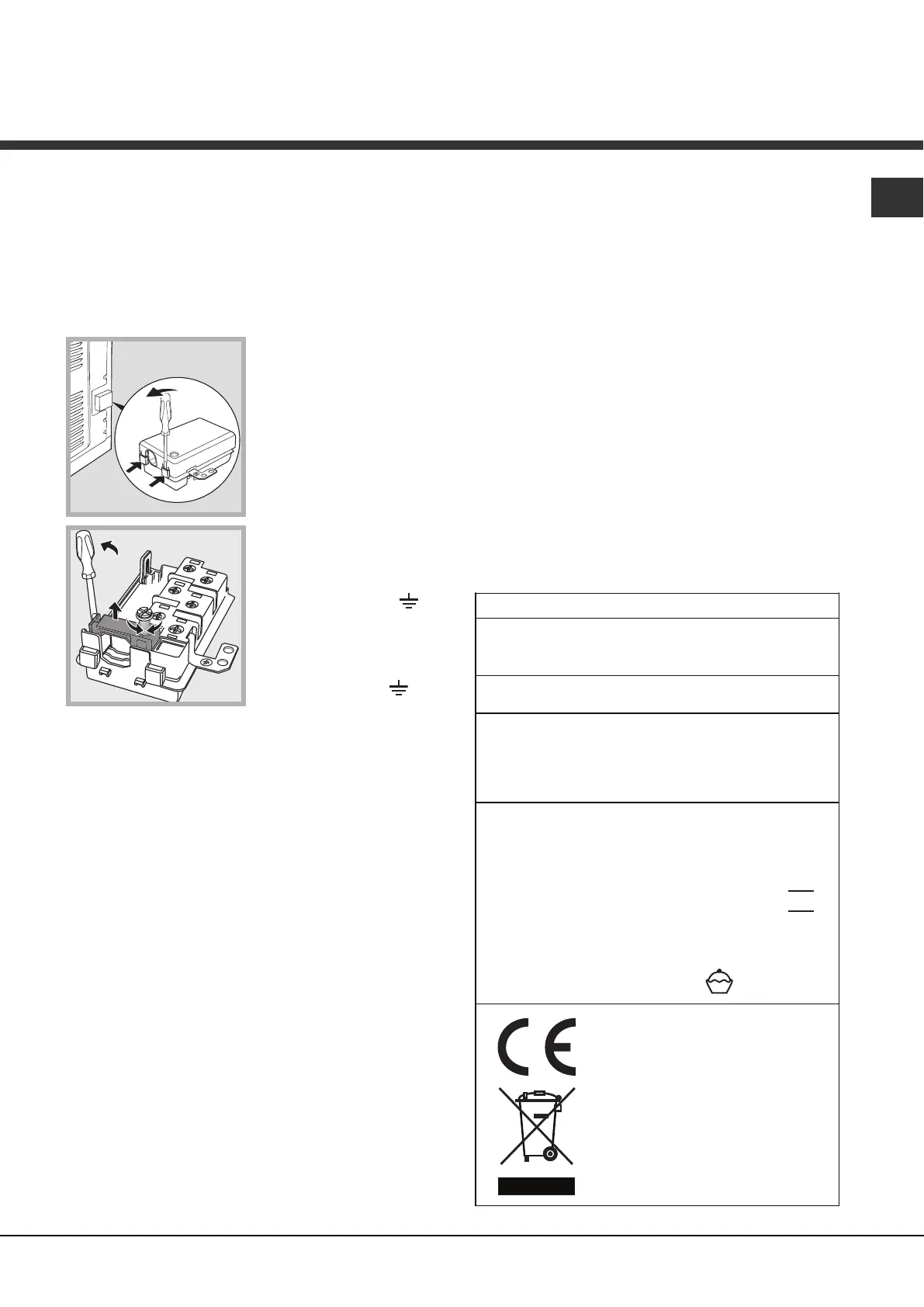

1. Open the terminal
board by inserting a
screwdriver into the side
tabs of the cover. Use
the screwdriver as a
lever by pushing it down
to open the cover (see
diagram).
2. Loosen the cable
clamp screw and remove
it, using a screwdriver as
a lever (see figure).
3. Remove the wire
contact screws L-N- ,
then fasten the wires
under the screw heads,
observing the colour
code: Blue (N), Brown (L)
and Yellow-Green ( ).
Connecting the electricity supply cable to the
mains
Install a standardised plug corresponding to the load
indicated on the data plate (see table).
The appliance must be directly connected to the mains
using an omnipolar switch with a minimum contact
opening of 3 mm installed between the appliance and
the mains. The switch must be suitable for the charge
indicated and must comply with current electrical
regulations (the earthing wire must not be interrupted
by the switch). The supply cable must be positioned
so that it does not come into contact with temperatures
higher than 50°C at any point.
! The installer must ensure that the correct electrical
connection has been performed and that it is fully
compliant with safety regulations.
Before connecting the appliance to the power supply,
make sure that:
• the appliance is earthed and the plug is compliant
with the law;
• the socket can withstand the maximum power of the
appliance, which is indicated on the data plate (see
below);
• the voltage is in the range between the values
indicated on the data plate (see below);
• the socket is compatible with the plug of the
appliance. If the socket is incompatible with the
plug, ask an authorised technician to replace it. Do
not use extension cords or multiple sockets.
! Once the appliance has been installed, the power
supply cable and the electrical socket must be easily
accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced
by authorised technicians only (see Assistance).
! The manufacturer declines any liability should
these safety measures not be observed.
! If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
