Ariston Thermo CP059MDX Bruksanvisning

Ariston Thermo Ugn CP059MDX

Läs nedan 📖 manual på svenska för Ariston Thermo CP059MDX (14 sidor) i kategorin Ugn. Denna guide var användbar för 4 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF
Sida 1/14
CP 857 GT
CP 859 MT.2
CP 057 GT
CP 058 MT.2
CP 059 MT.2
CP 059 MD.2
CP 058 GT (X) F
CP 059 MD.3 (X) F
Cucina mista
Istruzioni per l'uso e l'installazione
Mixed cooker
Instructions for use and installation
Cuisinière mixte
Instructions pour l'emploi et l'installation
Cocina mixta
Instrucciones para el uso y la instalación
Fogão Misto
Instruções para o uso e a instalação
1
1. This appliance has been designed for private, non-
professional domestic use in the home.
2. Read this instruction booklet carefully, as it provides
important advice regarding safe installation, use
and maintenance. Keep this booklet in a safe place
for future reference.
3. The oven accessories that may come into contact with
food are made of materials which comply with the
provisions set forth by the EEC Directive 89/109 of 21/
12/88 and the applicable national norms in force.
4. After removing the packaging, check that the appliance
is intact. If in doubt, do not use the appliance and contact
a qualified serviceman.
5. Some parts are covered with a removable scratch-proof
film. Before using the appliance, the film should be
removed and the underlying part cleaned with a cloth
and a non-abrasive household cleaning product. When
switching on the appliance for the first time, we
recommend you heat the oven at the maximum
temperature setting for about 30 minutes with nothing
in it to eliminate any residue from manufacture.
6. All installation and adjustment operations should be
carried out by a qualified serviceman in accordance with
the applicable norms in force. Specific instructions are
provided in the section intended for the installer.
7. Before connecting the appliance, make sure that the
data on the rating plate (situated underneath the
appliance and on the last page of this instruction booklet)
correspond to the mains electricity and gas supplies.
8. During operation, the oven glass door and adjacent parts
of the appliance become hot. Make sure, therefore, that
children do not touch the appliance. For greater safety,
an additional child-safety device is available from our
Head Office and our Authorised Service Centres (see
enclosed list). When ordering this, please give the code:
BAB - followed by the appliance model. The model is
stamped on the rating plate affixed to the rear of the
appliance and at the back of this booklet.
9. Check that the capacity of the electrical system and the
power outlets are suitable for the maximum power of
WARNINGS
THESE INSTRUCTIONS ARE ONLY VALID FOR THE COUNTRIES OF DESTINATION WHOSE SYMBOLS ARE SHOWN
IN THE BOOKLET AND ON THE APPLIANCE RATING PLATE.
Congratulations for choosing an Ariston appliance, which you will find is dependable and easy to use. We recommend you
read though this booklet for the best performance and to extend the life of your appliance. Thank you.
the appliance, indicated on the rating plate. If in doubt,
consult a qualified technical engineer.
10. Check the condition of the gas connection pipe regularly
and have it replaced by a qualified technical engineer as
soon as it shows any signs of wear or anomaly.
11. Under no circumstances should the user replace the
power supply cable or the gas connection pipe of this
appliance. In the event of damage or the necessity for
replacement, contact an authorised service centre only.
12. Do not leave the appliance plugged in if it is not in use.
Switch off the main switch and turn off the gas supply
when the appliance is not in use.
13. The burners and the cast-iron pan supports remain hot
for a long time after use. Do not touch them.
14. To avoid accidental spills, do not use cookware with
uneven or warped bottoms on the burners.
15. Never use flammable liquids such as alcohol or gasoline,
etc. near the appliance when it is in use.
16. If the cooker is placed on a pedestal, take the necessary
precautions to prevent the same from sliding off the
pedestal itself.
17. If the appliance is fitted with a lid, any boiled over liquid
should be removed from the hob before shutting it.
18. Where present, do not shut the lid if the hob is still hot.
19. do not use steam cleaners to clean your oven
2

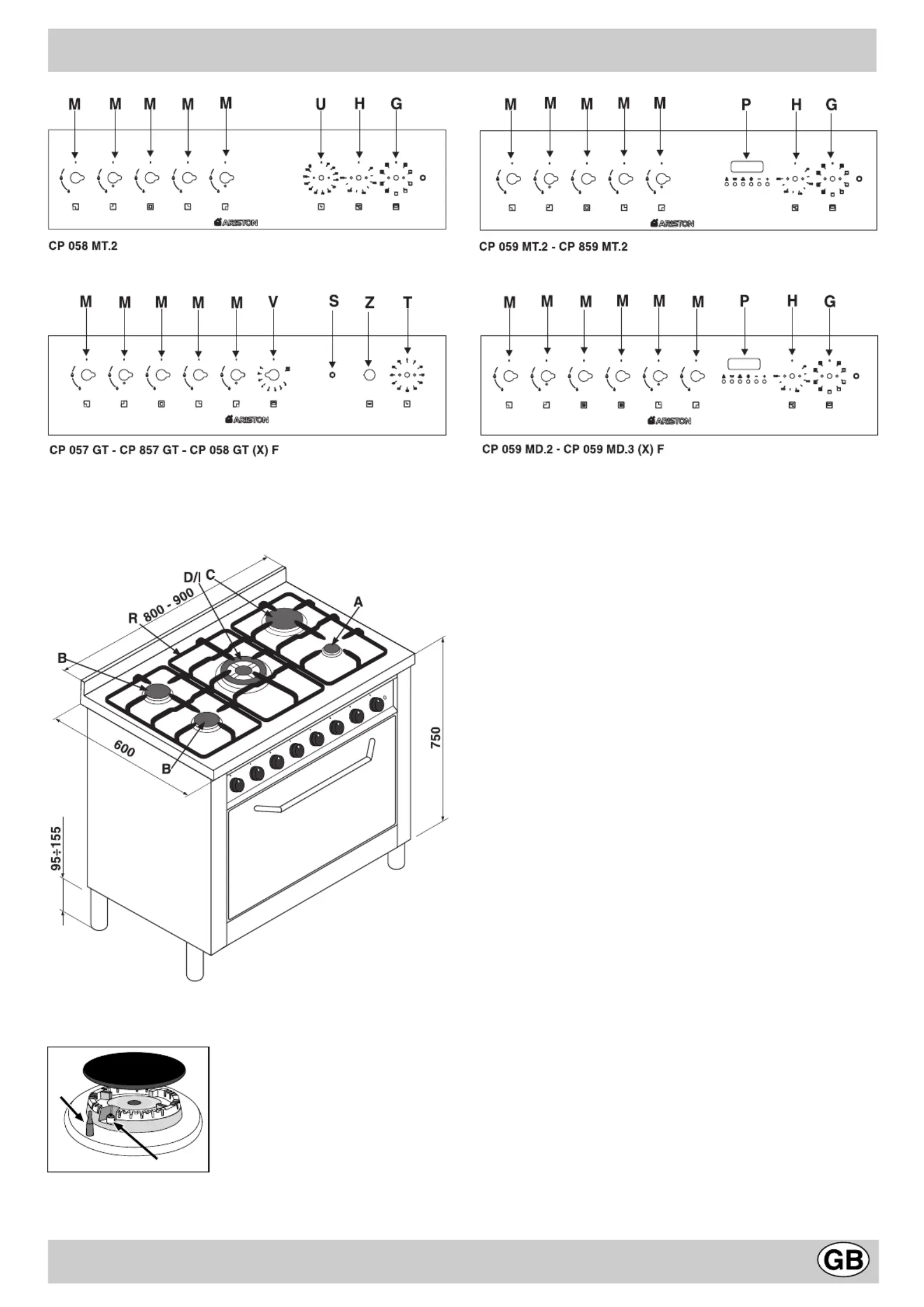

COOKER DESCRIPTION
E
F
fig.1
AAuxiliary gas burner
BSemi-rapid gas burner
CRapid gas burner
DTriple ring gas burner
DC-DR gas burner
EIgnitor for Gas Burners
FSafety Device - Activates if the flame accidentally goes
out (spills, drafts, etc.), interrupting the supply of gas to
the burner.
GElectric oven selector knob (cooking mode selection)
HElectric oven thermostat knob (temperature selec-
tion)
MControl knobs for gas burners
RSupport grid for cookware
PTimer
SElectric heating element indicator light
TMinute minder
UEnd of cooking programmer
VGas oven thermostat knob (gas oven mode selector
with temperature adjustment and electric grill)
ZGas oven light button
