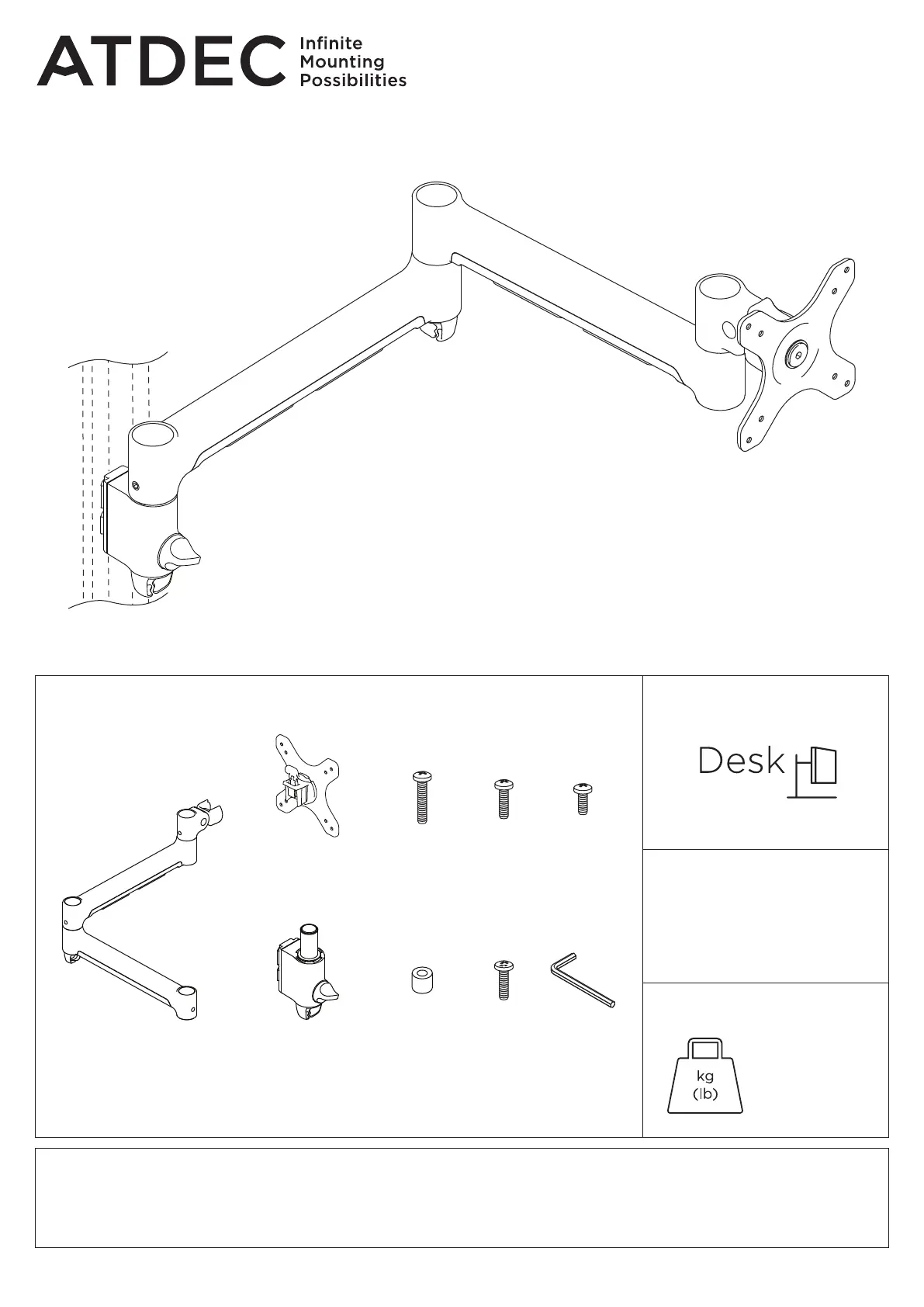

AWM-A71 Page 1 of 4
Installation Guide
AWM-A71
710 Arm
COMPONENT CHECKLIST
REQUIRED TOOLS
A
Monitor Arm
(x1)
B
VESA Head
(x1)
D
Screw
M4x25mm
(x4)
E
Screw
M4x16mm
(x4)
F
Screw
M4x12mm
(x4)
G
Spacer
(x4)
H
Security
screw
(x1)
I
4mm
allen key
(x1)
C
Post Clamp
(x1)
WEIGHT RANGE
• Phillips Head Screwdriver
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is compatible with Atdec AWM Series products.
0 - 9kg
(0 - 20lbs)
AWM-A71 Page 2 of 4
2. Set arm rotation to 180° (optional)
2.1 Remove plastic sleeve
from post clamp.
2.2 Remove rotation ring. Place rotation ring in 2.3
desired position.
Note: rotation ring placement
depends on the position of the clamp
on the post. The tag on the ring
should always face toward the user.
1. Press
2. Lift
Note rotation is set to 360� by default.
180°
360°
OR
Default
Position
Flipped
Position
Tag
1. Fix clamp to Post or Wall Channel
1.1 Ensure knob is undone. Slide post clamp into channel.1.2
Push knob to
aid insertion
1.3 Hold clamp in desired position on
channel and turn knob to lock in place.
3. Fit arm onto post clamp
e: Check the
arm rotation is
smooth after
tightening.
3.1 Push arm onto shaft. 3.2 Ensure arm is fully pushed onto shaft. 3.3 Tighten joint screw.
AWM-A71 Page 3 of 4
5. Mount monitor
6. Adjust tilt tension & Install security screw
Gap No gap
Monitor arm
5.2 Ensure that the VESA head sits flush within
the monitor arm. There should be gap.no
6.1 Use the allen key to adjust the tilt tension until the monitor
holds in a vertical position at the end of the arm.
Note: Support
monitor while
adjusting.
6.2 OPTIONAL security screw
To install the optional security screw tilt the head upwards
Tighten
Loosen
5.1 Insert VESA head into the monitor arm Push the lever down to 5.3
secure monitor to the arm
assembly
4. Attach VESA head to monitor
Flush
Too long Too short
Spacer
5mm 12mm
4.2 Screw the VESA head onto monitor
Note spacers may be required for curved,
recessed or uneven monitor surfaces.
4.3 Ensure the correct screw length is used
to attach the monitor.
4.1 VESA mounting compatibility
100mm
75mm
100mm 75mm
Note: For other sizes, use a suitable
adaptor plate (sold separately).
