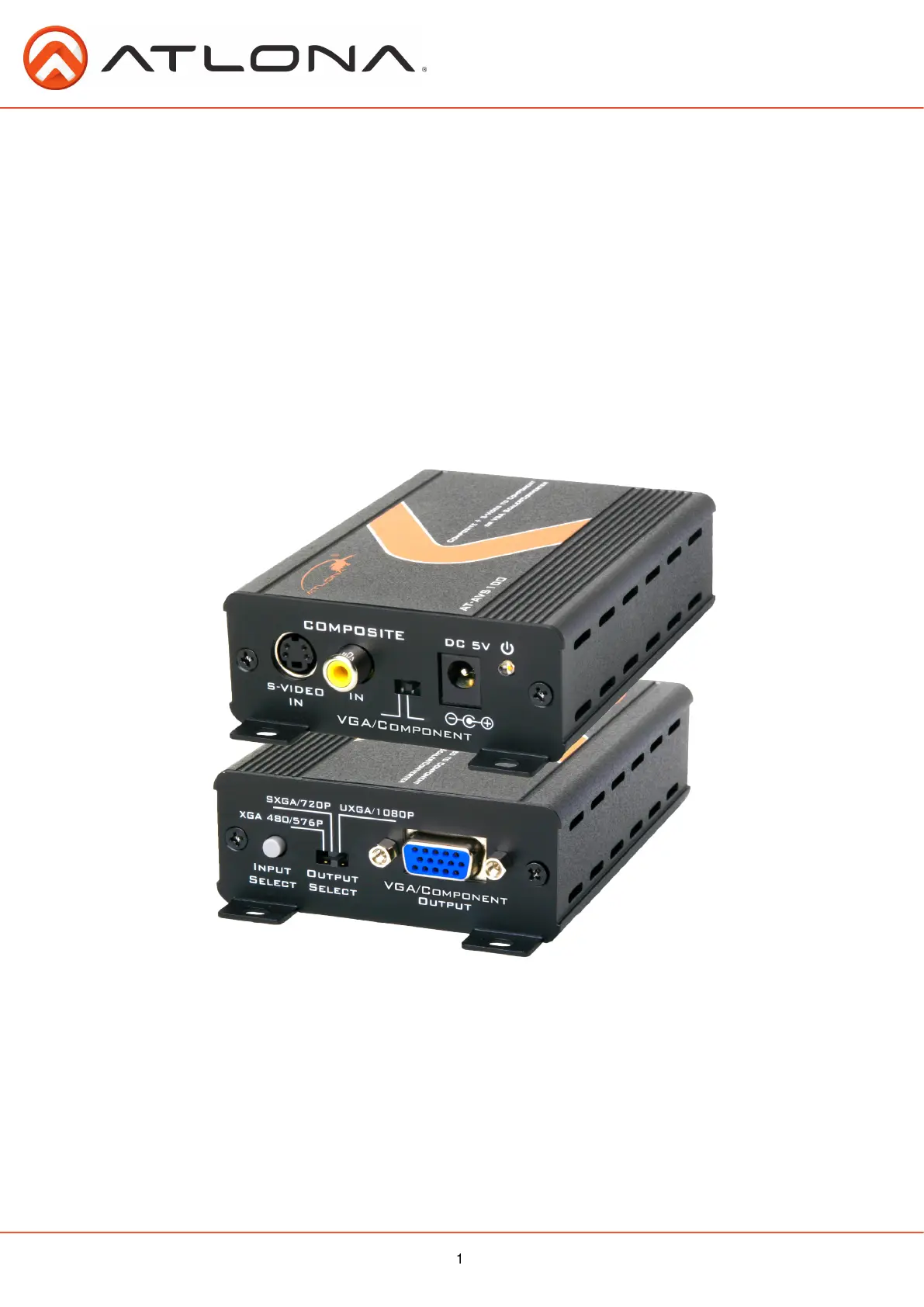

Sida 1/8
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515
User Manual
AtlonA
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 2
TABLE OF CONTENTS
1. Introduction .................................................. 3
2. Applications .................................................. 3
3. Package Contents .................................................. 3
4. Features .................................................. 3
5. Specication .................................................. 4
6. Operation Controls and Functions .................................................. 4
6.1. Left Side Panel .................................................. 4
6.2. Right Side Panel .................................................. 4
6.3. Front Panel .................................................. 5
6.4. Top Panel .................................................. 5
7. Atlona Product Registration .................................................. 5
8. Connection Diagram .................................................. 6
9. Safety Information .................................................. 7
10. Warranty .................................................. 8
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 3
INTRODUCTION
PACKAGE CONTENTS
APPLICATIONS
FEATURES
The Atlona AT-AVS100 is a great little tool which allows Composite Video or S-Video to be converted
and scaled to either Component Video or VGA. The AVS100 is capable of scaling anything that comes
in to Component video resolution from 480p to 1080p and VGA resolutions from 640x480 to 1600x1200.
The VGA to Component Video Cable is included for component video use.
The Atlona device is fully universal, which means that it can take either NTSC or Pal signal and there-
fore will work perfectly anywhere in the world.
• AT-AVS100 – the converter
• Universal Power Supply
• Instructions Manual
• VGA to Component Video Cable
• Perfect for scaling Composite Video or S-Video signals to Component Video or VGA
• Supports high resolution output
• VGA resolutions: XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200)
• Component resolutions: 480p/576p, 720p and 1080p
• 3D (frame based) motion adaptive YNR/CNR noise reduction technology
• Advance de-interlacing technology, which will allow better image quality.
• Supports 2:2 & 3:2 lm mode detection
• Residential Installations: There are many applications where residential installers use component
video matrix switchers to route all video signals; however there are many sources still left which use
composite or s-video interface. The AT-AVS100 will allow installer to route Security Camera’s, VHS
Players, Laser Disc though the component video switcher.
• Security Application: Most security cameras on the market today are using Composite Video Inter-
faces; however most computer displays are VGA. The AVS100 will t perfectly into this environment
as it would be able to convert signal from a security camera to show up on the computer display.
