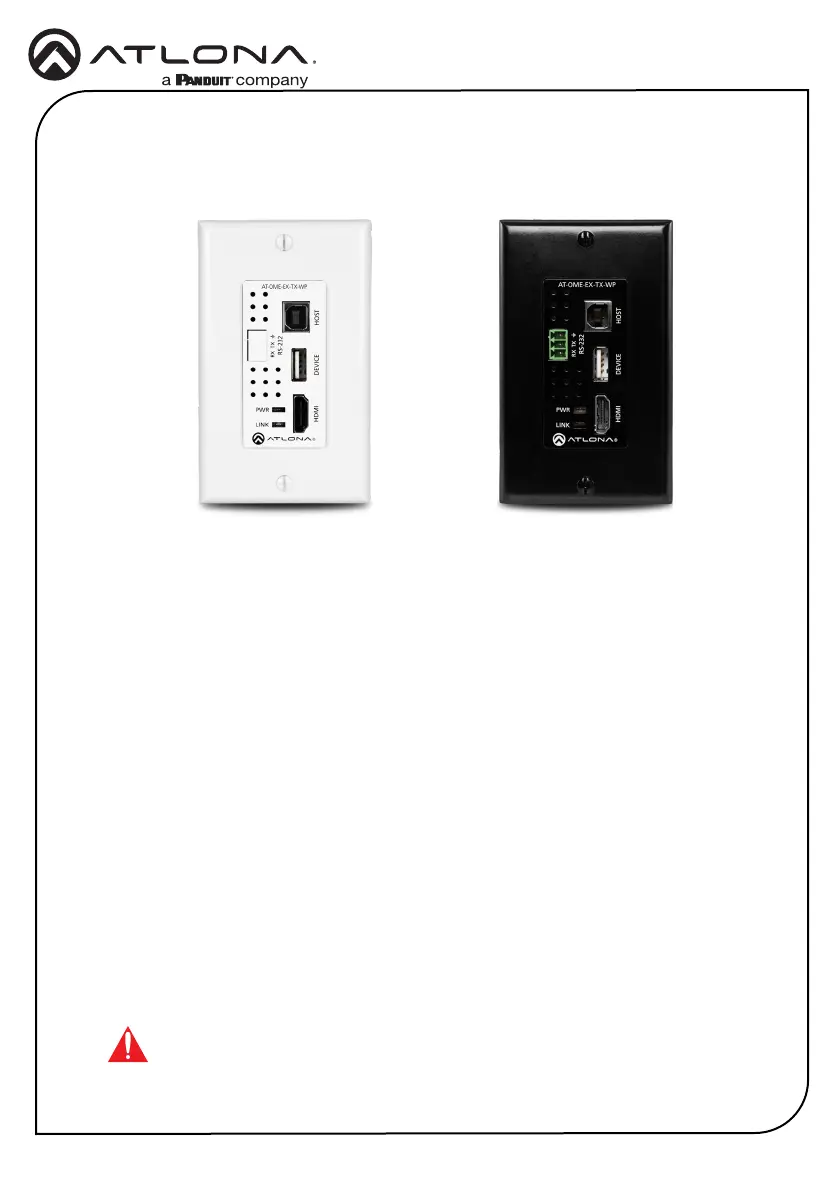

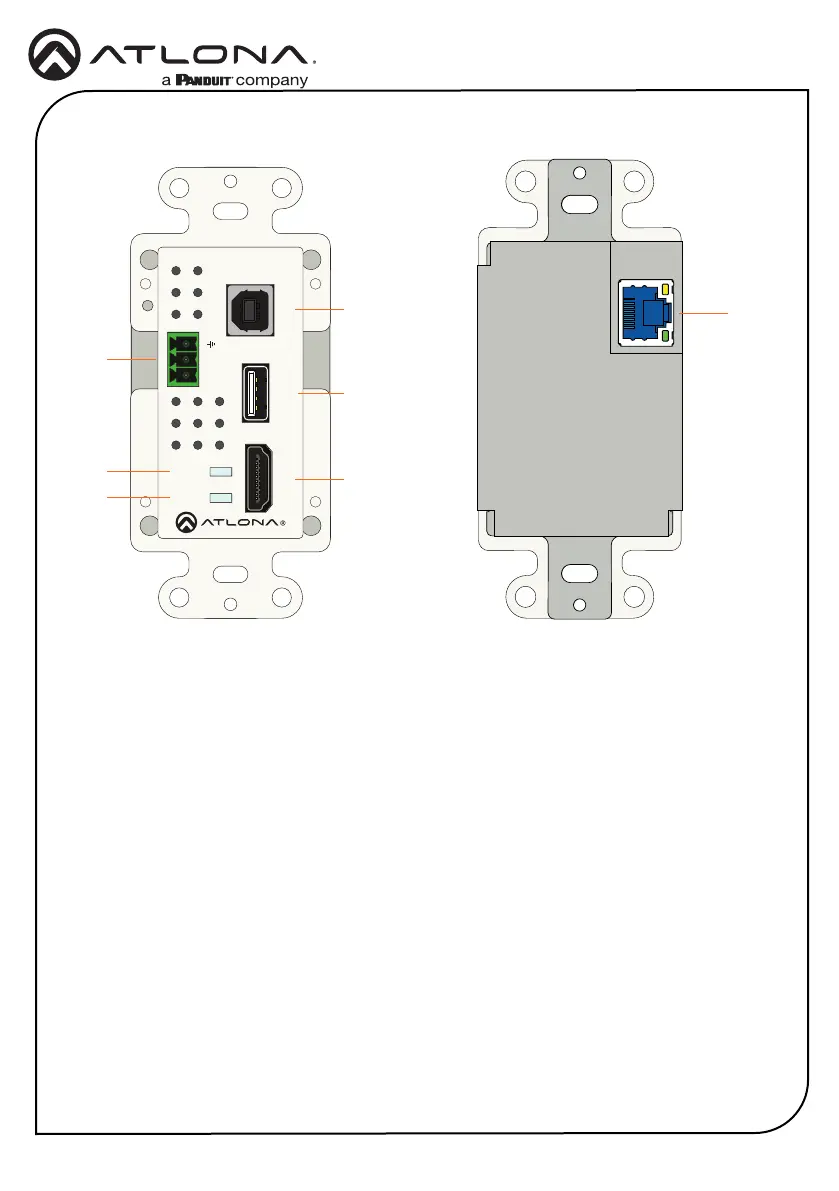

Installation Guide

AT-OME-EX-TX-WP

Omega™ 4K/UHD

Wallplate Transmitter for HDMI with HDBaseT Output and USB

AT-OME-EX-TX-WP

The Atlona AT-OME-EX-TX-WP is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus

embedded audio, control, and USB over distances up to 330 feet (100 meters). It features a US

one-gang, Decora®-style wallplate form factor, and includes interchangeable black and white

wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV

communications and collaboration, the OME-EX-TX-WP is HDCP 2.2 compliant and transmits

RS-232 control signals. With a matching HDBaseT receiver, the integrated USB extension

addresses the challenge of connecting between USB devices at remote locations, and is ideal for

software video conferencing and touch or interactive displays. The OME-EX-TX-WP includes a

USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone, microphone,

or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as

switchers with HDBaseT inputs.

* The AT-OME-EX-TX-WP is not compatible with the AT-UHD-HDVS-300 system for extending

USB.

IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-TX-WP for the

latest rmware updates and User Manual.

1 x AT-OME-EX-TX-WP

1 x White faceplate

1 x White RS-232 cover

1 x White wallplate

1 x Black faceplate

1 x Black RS-232 cover

1 x Black wallplate

4 x Mounting screws (2x course thread, 2x ne thread)

1 x 3-pin captive screw connector

1 x Installation Guide

Package Contents

Installation Guide

AT-OME-EX-TX-WP

LINK

PWR

HDMI DEVICE HOST

RX TX

RS-232

AT-OME-EX-TX-WP

HDBaseT

OUT

1 HOST

Connect a USB cable from the computer

to this port.

2 RS-232

Connect an RS-232 control system to this

port. Connect the included 3-pin captive

screw block to this receptacle. Refer to

RS-232 (page 3) for more information.

Note that this port is covered by a plate

and must be removed to expose the RS-

232 port.

3 DEVICE

Connect a USB device, such as a

speakerphone, to this port. This port

provides 2.5 W of power.

4 PWR

This LED indicator glows solid green

when the unit is powered. Refer to

LED Indicators (page 6) for more

information.

5 HDMI

Connect an HDMI cable from this port to a

UHD/HD source.

6 LINK

This LED indicator glows solid amber to

indicate that the HDBaseT signal integrity

is good. Refer to LED Indicators (page

6) for more information.

7 HDBaseT OUT

Connect a category cable from this port to

the port of the AT-OME-EX-HDBaseT IN

RX or other PoE-compatible receiver.

Installation Guide

AT-OME-EX-TX-WP

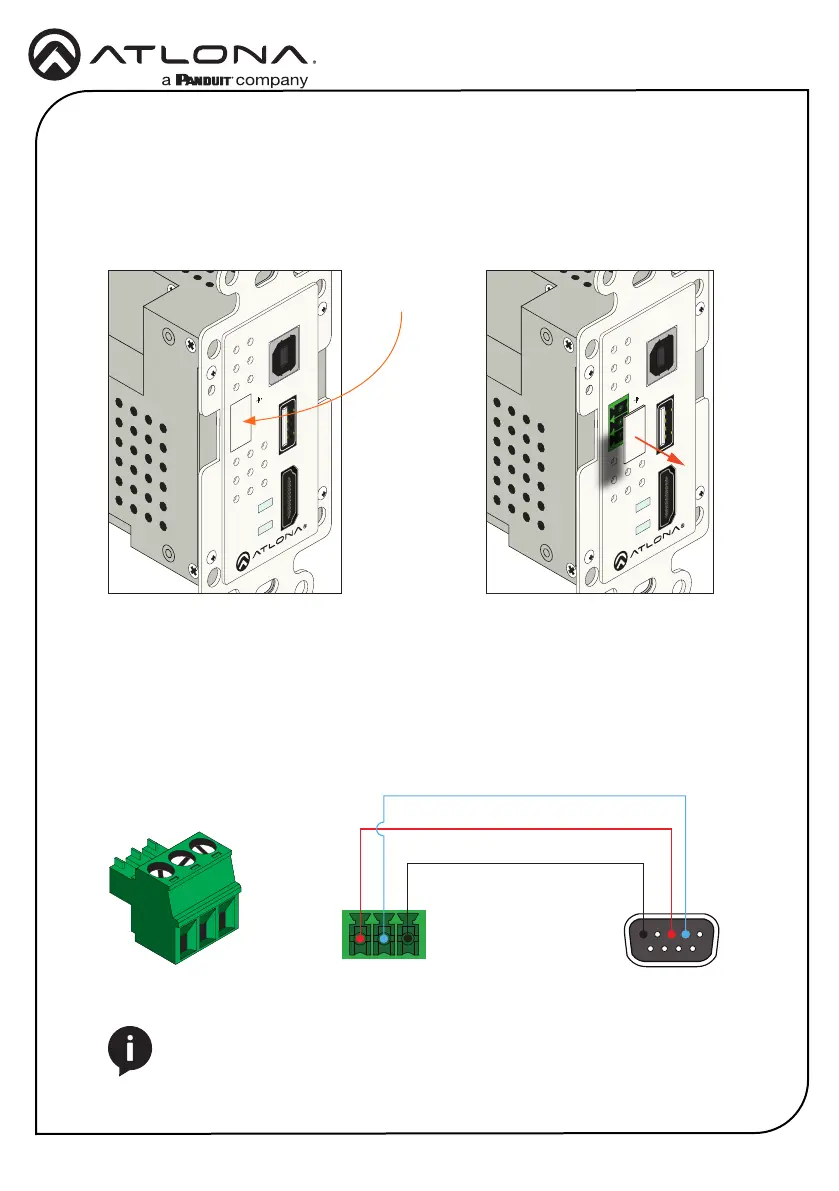

2. Use wire strippers to remove a portion of the RS-232 cable jacket.

3. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires.

4. Insert the TX, RX, and GND wires into correct terminal using the included 3-pin captive

screw connector.

5. Connect the opposite end of the cable to the control system.

NOTE: Typical DE-9 connectors use pin 2 for TX, pin 3 for RX, and pin 5 for

ground. On some devices functions of pins 2 and 3 are reversed.

RS-232

GND

DE-9 (RS-232) port

The AT-OME-EX-TX-WP provides an port which allows communication between a control RS-232

system and an RS-232 device. This step is optional.

1. Gently remove the RS-232 cover from the faceplate using the tip of a small regular

screwdriver.

LINK

PWR

HDMI DEVICE HOST

RS-232

AT-OME-EX-TX-WP

LINK

PWR

HDMI DEVICE HOST

RX TX

RS-232

AT-OME-EX-TX-WP

RS-232 cover
