1

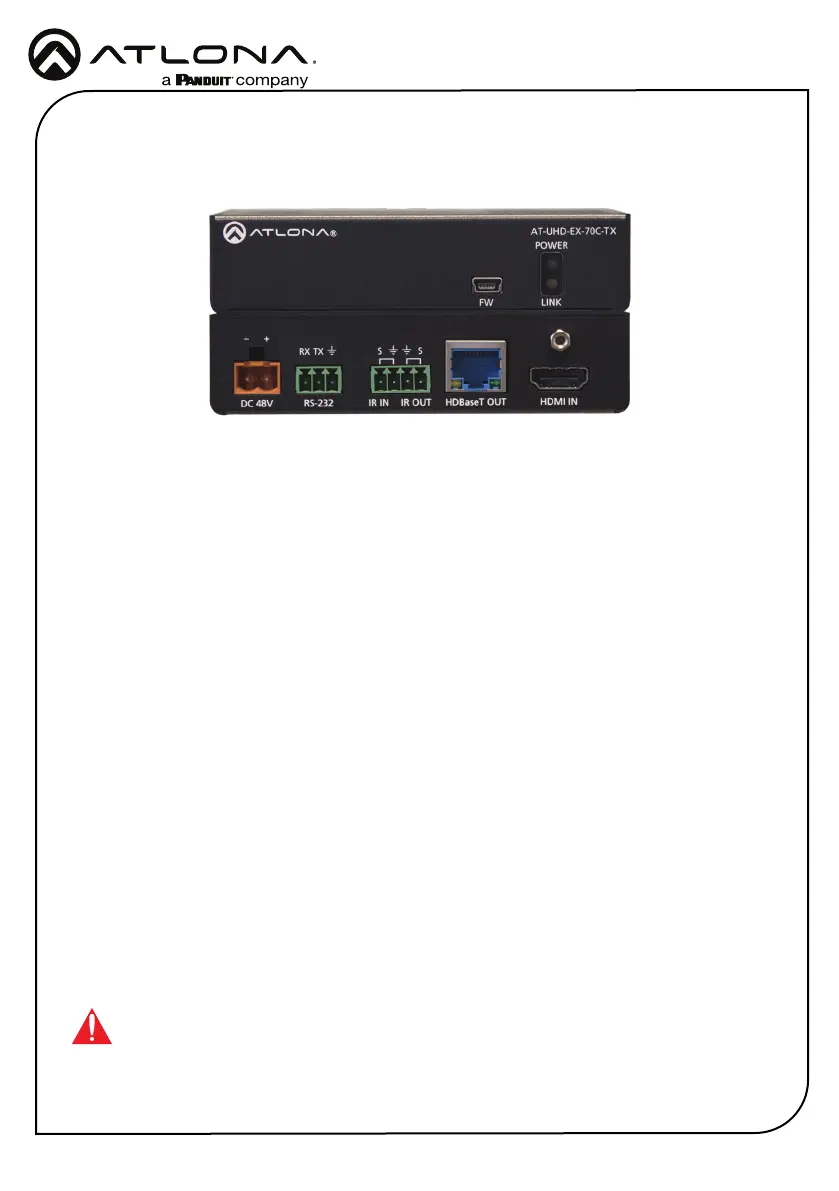

Installation Guide
AT-UHD-EX-70C-TX
4K/UHD HDMI Over HDBaseT TX with Control and PoE
AT-UHD-EX-70C-TX
The Atlona AT-UHD-EX-70C-TX is an HDBaseT transmitter for HDMI transmission up to 230
feet (70 meters) over category cable with RS-232 and IR control pass-through. It transmits video
signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel
audio. The AT-UHD-EX-70C-TX is HDCP 2.2 compliant and supports EDID communication. This
HDBaseT transmitter is externally powered by the included power supply, making it ideal for
extending AV and control directly to a projector with an HDBaseT input.
The AT-UHD-EX-70C-TX provides a value-oriented integration solution for simple point-to-point
signal extension to a display, or expanding the scope of an AV system design with remote input
connectivity. It features a quarter rack width metal enclosure and includes surface mounting
brackets for easy under-table, furniture, or on-wall installation.
IMPORTANT: Visit http://www.atlona.com/product/AT-UHD-EX-70C-TX for the latest
rmware updates and Installation Guide.
1 x AT-UHD-EX-70C-TX
2 x Mounting brackets
4 x Mounting screws
1 x 3-pin captive screw connector
1 x 4-pin captive screw connector
1 x 2-pin captive screw connector
1 x 48 V / 0.83 A DC power supply
1 x Installation Guide
Package Contents

2
Installation Guide
AT-UHD-EX-70C-TX
POWER
LINKFW
AT-UHD-EX-70C-TX
DC 48V
-
+
RS-232
RX TX SS
HDBaseT OUT HDMI INIR OUTIR IN

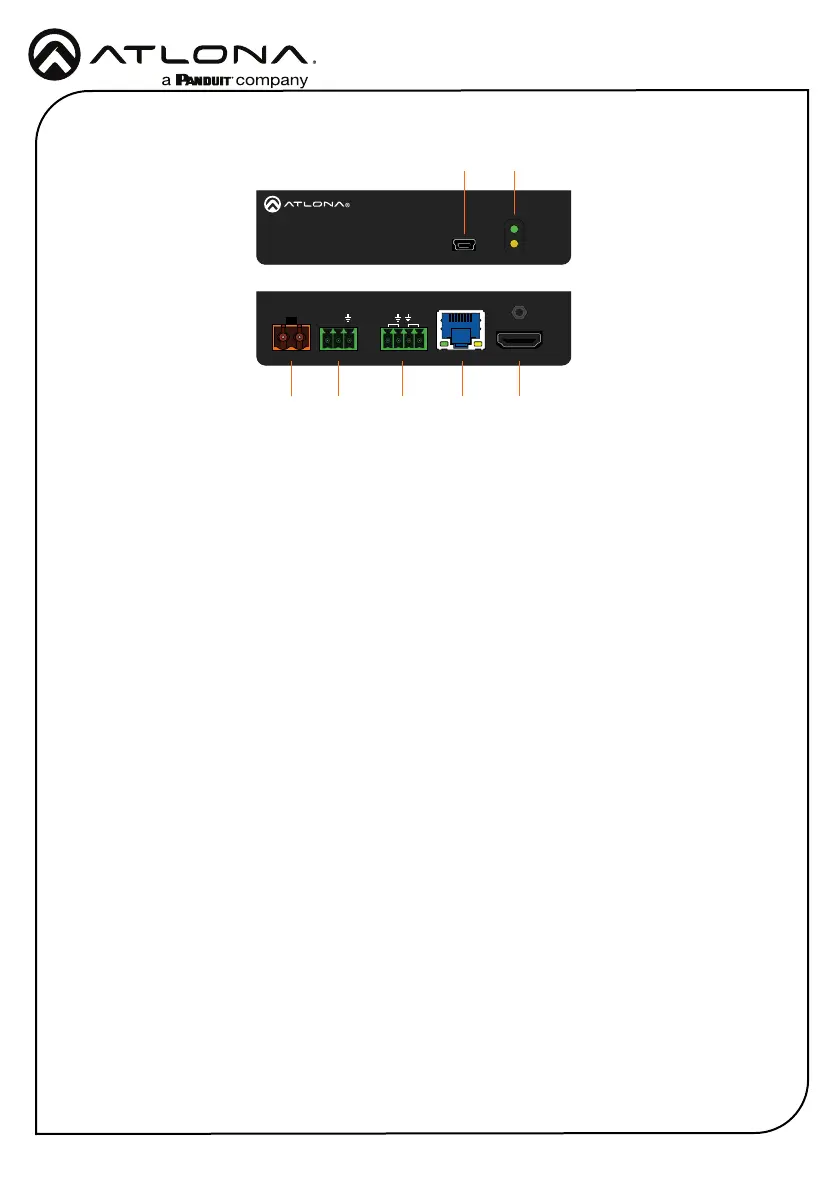

Panel Descriptions
1 FW
Connect a mini-USB to USB-A type cable
from this port to a computer, to update
the rmware.
2 POWER / LINK
The power LED will illuminate green when
receiving power. The link LED will glow
yellow when signal is being sent/received
between the transmitter and the receiver.
3 DC 48V
Connect the included power supply to this
port.
4 RS-232
Bidirectional control port, used for pass
through of commands to or from the
receiver.
5 IR IN / IR OUT
Connect an IR receiver to the port. IR IN
Connect an IR emitter from the IR OUT
port to the included 4-pin captive screw
connector.
6 HDBaseT OUT
Connect an HDBaseT cable from this port
to the port on the receiver.HDBaseT IN
7 HDMI IN
Connect an HDMI cable from a source to
this port.
1
3 4 5 6 7
2

3
Installation Guide
AT-UHD-EX-70C-TX

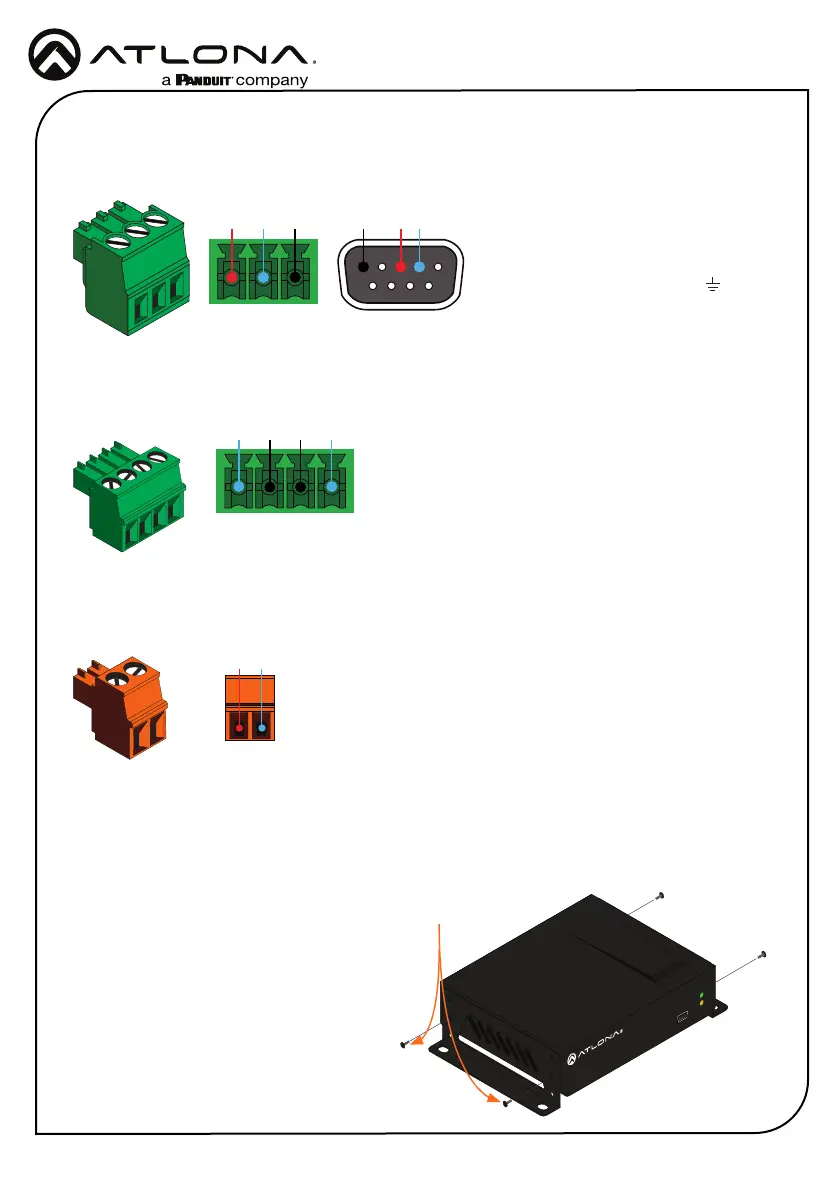

Pin out will be determined by the
RS-232 cable and connect as
RX (receive), TX (transmit) and
(Ground).
A 3-pin captive screw connector for RS-232 is included.
A 4-pin captive screw connector for IR is included.
A single 2-pin captive screw connector is provided to connect the power supply to the unit.
IR IN is connected by a signal and ground wire. Use
a 12V IR receiver with it ( AT-IR-CS-RX purchasable e.g.
through atlona.com).
IR OUT is connected by a ground and signal wire.
Use an IR emitter with this port.
RS-232
IR
POWER
IR IN IR OUT
GND RX TXGNDRX TX
The AT-UHD-EX-70C-TX includes two mounting brackets and four mounting screws each, which
can be used to attach the units to any at surface.
1. Position one of the mounting brackets,
as shown below, aligning the holes on
the side of the enclosure with one set of
holes on the mounting bracket.
2. Use the enclosure screws to secure the
mounting bracket to the enclosure.
3. Repeat the above steps to attach
the second mounting bracket to the
opposite side of the unit.
Mounting Instructions
FW
AT -UHD-E X-70C-T X
POWER
LINK
Included screws
-+
GND SS
