Sida 1/12

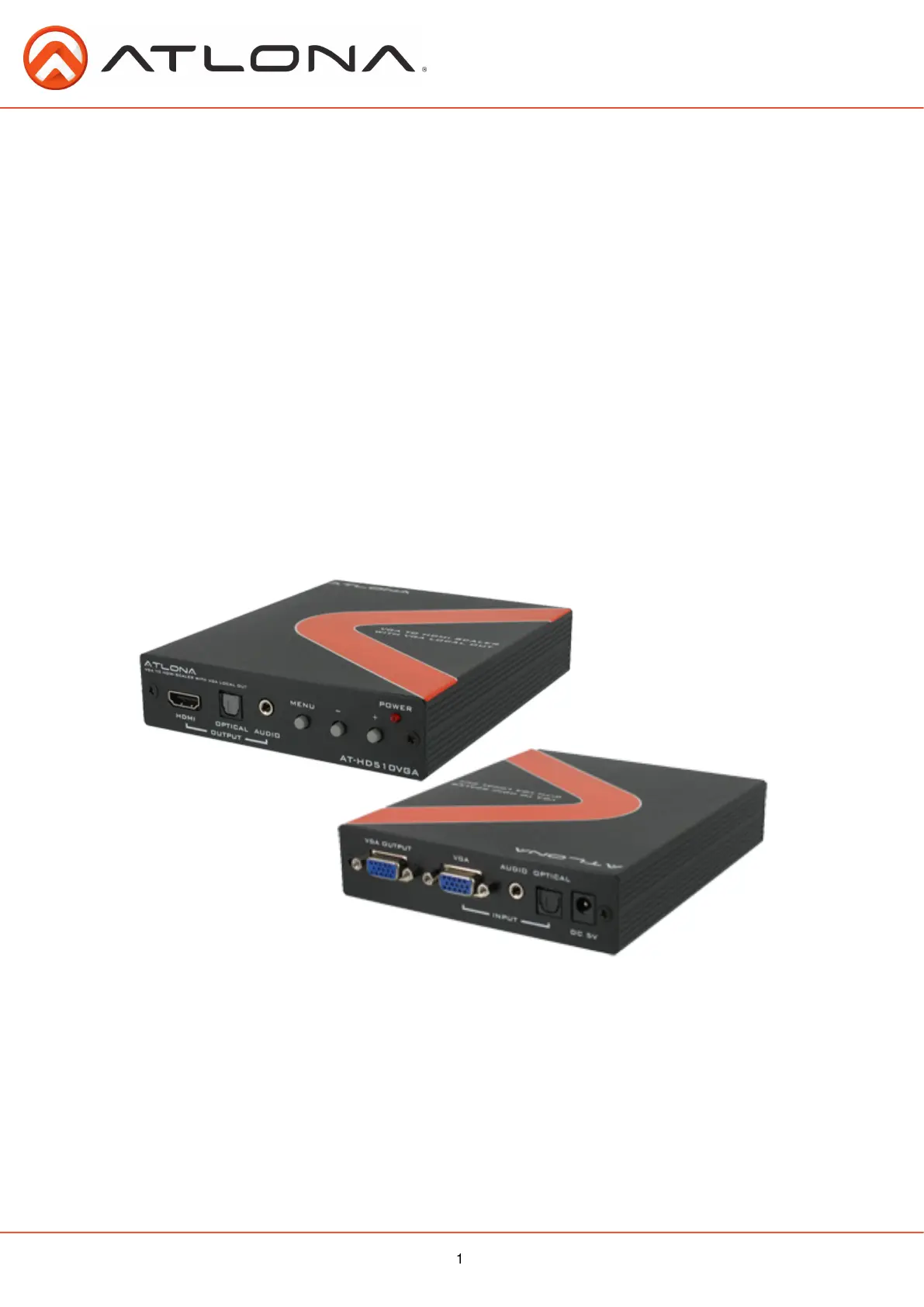

User Manual
AtlonA
1
TABLE OF CONTENTS
1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Features .................................................. 3
4. Specication .................................................. 3
5. Panel Descriptions .................................................. 4
5.1 Front Panel .................................................. 4
5.2 Rear Panel .................................................. 4
6. OSD Operation .................................................. 5
7. Activating a VGA output on a Laptop .................................................. 5
8. Connection Diagram .................................................. 8
8.1. PC to HDTV Connection .................................................. 8
8.2. Component to HDTV Connection .................................................. 8
9. Support Resolution .................................................. 9
10. Resetting the Unit .................................................. 9
11. Atlona Product Registration .................................................. 9
12. Safety Information .................................................. 10
13. Warranty .................................................. 11
2
INTRODUCTION
PACKAGE CONTENTS:
FEATURES:
SPECIFICATIONS:
This Scaler Box is designed to upscale analog video signal from PC/Component source to digital HDMI output of
wide-range HDTV and PC resolutions, up to 1080p/WUXGA. Besides video upscaling, the scaler box also con-
verts digital/analog audio signal to digital/analog format, then output to HDMI combining with the video, TOSLink
(optical ber), and phone jack (L/R audio) simultaneously. This unit has a comprehensive OSD menu that allows
user to select a variety of output resolutions and adjust for best picture quality.
• AT-HD510VGA (PC/HDTV to HDMI Scaler)
• 5v power supply
• User manual
• HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.
• Local VGA out allows to connect local PC/Component monitor
• Scales any PC/HD resolutions to PC (VGA ~ WUXGA)/ HD (480i ~ 1080p) resolutions.
• Automatically detect the factory setting of the connected display and output the corresponding
resolution and refresh rate, when the NATIVE output is selected.
• Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness, RGB (color
tone) level and aspect ratio size.
• Supports high resolution output (See section “9. Support Resolution” for reference.):
PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.
SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p
• Supports stereo LPCM analog/digital audio input and stereo LPCM analog/digital output. Simply select
among the audio input sources in the OSD menu, then output the audio to HDMI, TOSLink and phone
jack simultaneously.
Input ports 1 x VGA, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical ber)
Output ports 1 x HDMI, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical ber),
1 x VGA ( local monitor )
Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certied)
Dimensions (mm) 154(D) x 100(W) x 25(H)
Weight(g) 340
Chassis Material Aluminum
Silk Skin Color Black
Operating Temperature Operating from 0°C ~ 48°C
3
