Sida 1/11
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515

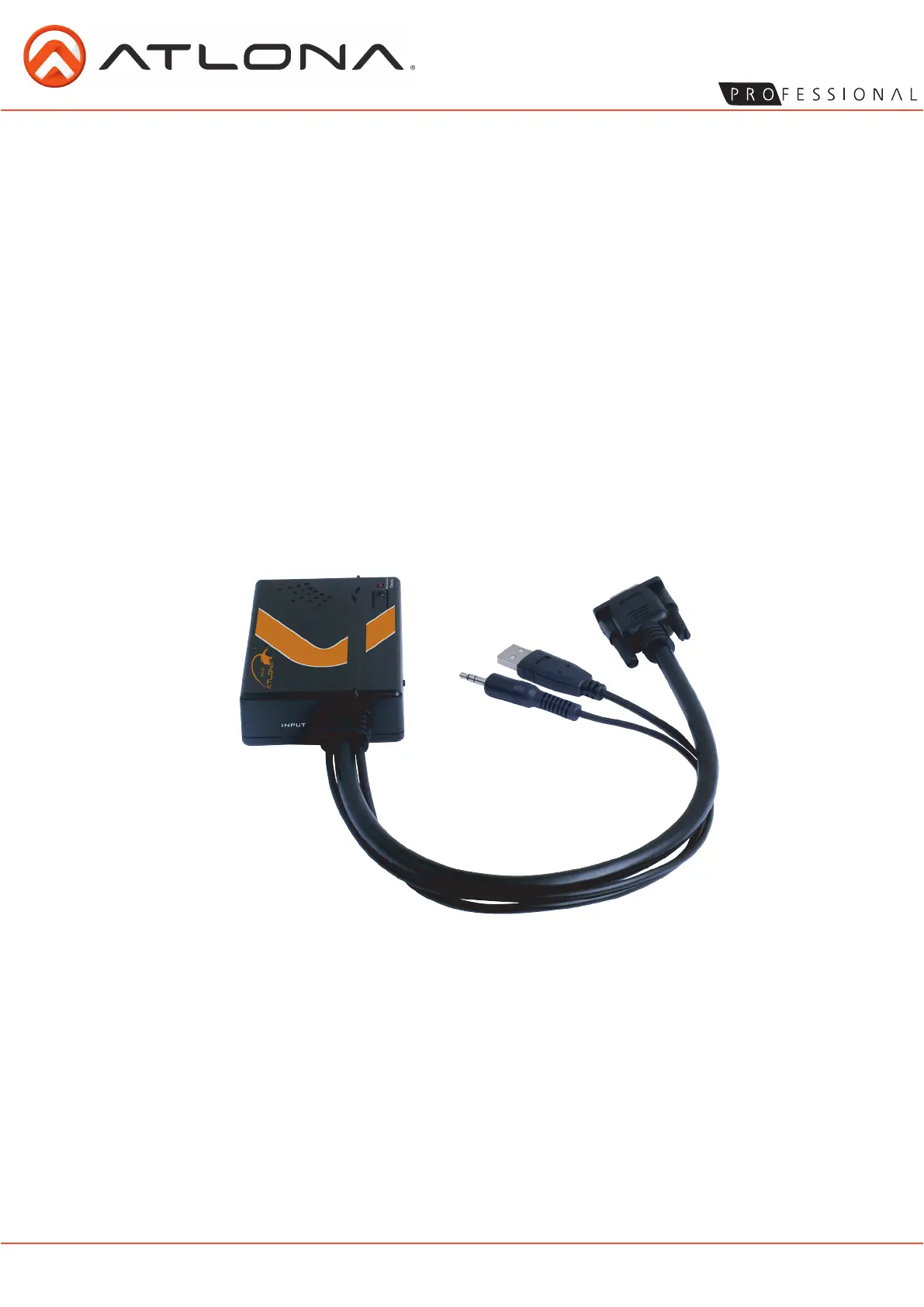

User Manual
AtlonA
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 2
TABLE OF CONTENTS
1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Features .................................................. 3
4. Applications .................................................. 3
5. Specication .................................................. 3
6. Panel Descriptions .................................................. 4
6.1. Top Panel .................................................. 4
6.2. Left Panel .................................................. 4
6.3. Right Panel .................................................. 5
6.4. Bottom Panel .................................................. 5
7. Activating a VGA output on a Laptop .................................................. 5
8. Connection Diagram .................................................. 8
9. Safety Information .................................................. 9
10. Warranty .................................................. 10
11. Atlona Product Registration .................................................. 11
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 3
INTRODUCTION
PACKAGE CONTENTS:
FEATURES:
SPECIFICATIONS:
The Atlona AT-HDView is designed to take video and audio signal from a PC or Laptop and upscale it to digital
HDMI output of wide-ranged HDTV and PC resolutions, up to 1080p. The AT-HDView is a plug and play device,
automatically sensing the native resolution of the display and scales the computer’s output to match it. The
converter will take audio signal from the computer and embedded it into the HDMI signal output, so that user
is able to enjoy both audio and video though one cable. The HDVieW is a scaler-converter, which means that
it will always work without any adjustments to the video card software in addition to the video quality’s ability to
dramatically increase due to the built-in high quality scaler. The Atlona converter is USB powered and therefore
will not require additional power supplies.
• AT-HDView
• (1 foot VGA, Audio and USB Cables are built-in into the converter)
• 6ft HDMI Cable
• Display VGA signals out of Laptop or Desktop to an HDTV or a Monitor
• Audio Compatible, the converter will take audio from the computer and embedded it to the HDMI
output along with video signal
• High Quality scaler allows any PC resolution to be scaled to a native resolution of the display up to
1080p
• Converter will automatically sense the native resolution of the display and adjust to the output to that
resolution, manual selection is also available
• Supports resolutions of up to 1920 x 1200
• USB Powered
• VGA, Audio and USB pig-tail cables are attached to the converter
• Plug & Play
• 6ft HDMI Cable is Included
Input Ports VGA, USB and Audio (3.5mm input)
Output Ports HDMI
Output Resolution 480p@60, 720p@60, 1080p@60, 1280x800@60, 1366x768@60,
1920x1200@60
Input Resolution 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024,
1680x1050, 1600x1200, 1920x1080, 1920x1200
Dimensions(mm) 4.4(W) x 2.5(D) x 1(H)
Weight(g) 0.5LB
APPLICATIONS:
• Convert PC signal to an HD TV or monitor
