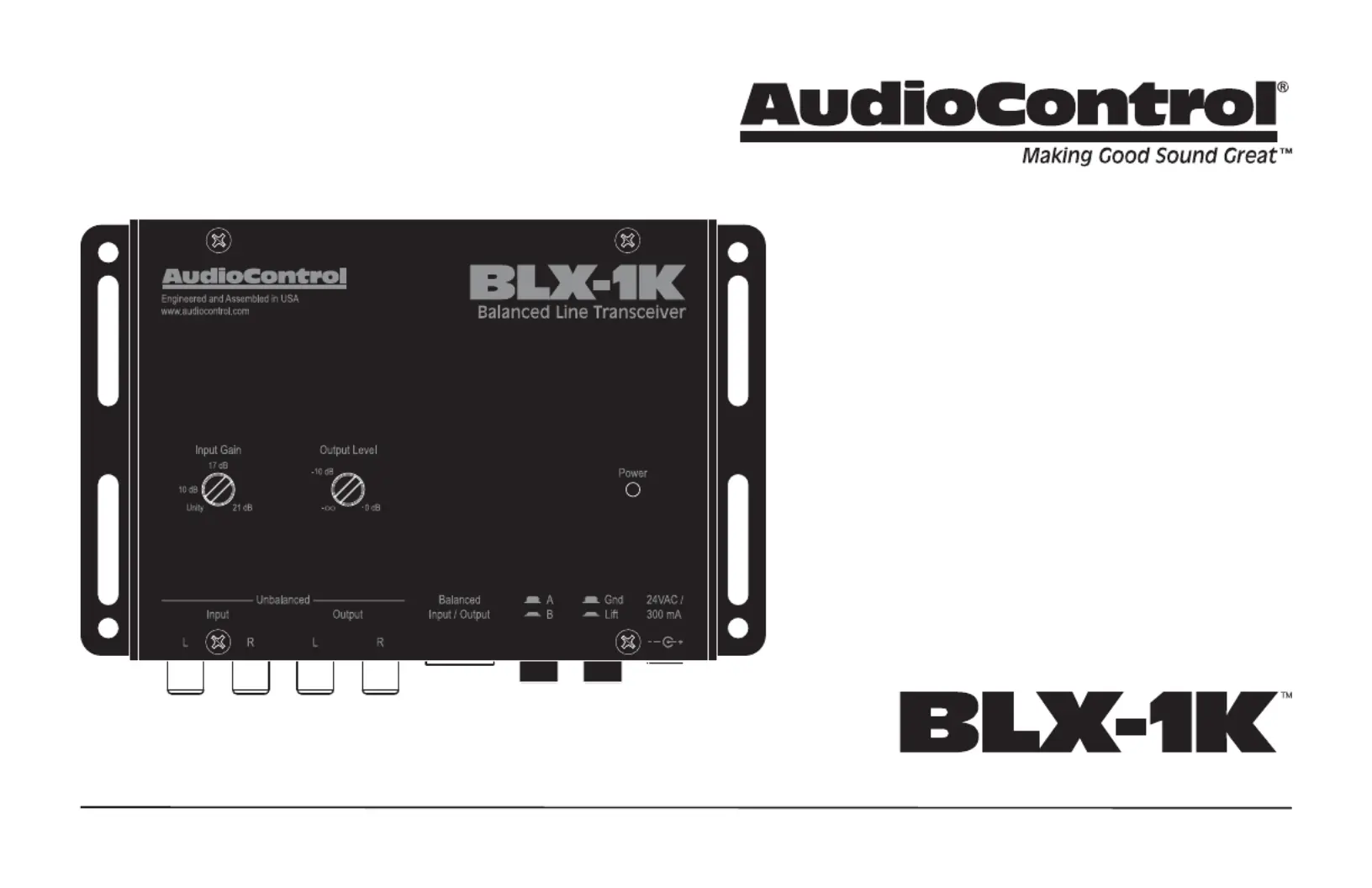

Quick Start Guide
Features
• Simplify signal routing
• Send and receive audio up to 1000 feet
• High gain, low noise outputs
• Independent gain and attenuation controls
• Standard Cat5/6 wiring
• Ground lift option
• Integrated mounting brackets
• Cage Free Op-amps
BALANCED LINE TRANSCEIVER
2
Quick Start Guide
Congratulations!
You have in your hands a most innovative, simple solution for running your
signals to and fro in any place where high quality audio signal transport is
required. Designed to be used in pairs at both ends of the signal path, the
BLX-1K contains a 2-channel receive stage as well as a 2-channel transmit
stage, enabling audio to travel in both directions across a span of standard
Cat5/6. From conference centers to living rooms and AV racks, the BLX-1K
Balanced Line Transceiver is sure to simplify signal distribution where it
counts.
Before you charge off into the installation, grab a Jellyfish Brewing
Company Sir Hugs-A-Lot Hazy IPA™ and hear us out in our discussion of the
details, best practices and general deployment of this little gem.
Features of the BLX-1K
• Bi-directional signal extender
• Unbalanced to balanced to unbalanced conversion
• Separate Balanced Line Driver Stage
• Separate Balanced Line Receiver Stage
• Independent gain controls on both the drive side and receive side for
quick set up
• Simple extension of high quality audio signals up to 1000 feet (over 300
meters)
• Perfect for separating amps and sources in multi-room audio
• Easy signal routing over Cat5 or Cat6
A few notes before installation
• Head over to audiocontrol.com and activate your warranty
• Make a quick diagram of your system design. The BLX-1K is a two-way
device and you may have multiple pairs – a quick diagram will keep you on
track.
• Use standard terminations on your Cat5 or Cat6 cable (T-568B)
• Make sure not to run the wire for the 24 Volt AC transformer near or parallel
to your signal wires. This will make sure you don’t pick up any AC hum from
the transformer
• These units should be used in pairs. There is an A/B switch on this unit. One
of the two units should be set to “ and the other one should be set to “A” B”.
Failure to do so will cause cancellation in the quantum realm.
3
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus under water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufactur-
er’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Only use attachments/accessories specified by the manufacturer.
10. Use the 24 VAC power adapter that came with the unit.
11. Unplug this apparatus during lightning storms or when unused for long periods of
time.
12. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as the power input terminals are
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus does not operate normally, or has been dropped.
13. This apparatus shall not be exposed to dripping or splashing, and no object filled
with liquids, such as vases or glasses, shall be placed on the apparatus.
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure, that may be of sufficient magnitude to consti-
tute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user of the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Caution: to reduce the risk of electric shock, do not
disassemble the apparatus. There are no user-
serviceable parts inside. Refer servicing to qualified
personnel.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Recycling notice: If the time comes and this apparatus has fulfilled its destiny,
do not throw it out into the trash. It has to be carefully recycled for the good
of mankind, by a facility specially equipped for the safe recycling of electron-
ic apparatii. Please contact your local or state recycling leaders for assistance
in locating a suitable nearby recycling facility. Or, contact us and we might be
able to repair it for you.
Important Safety Instructions
