Sida 1/17

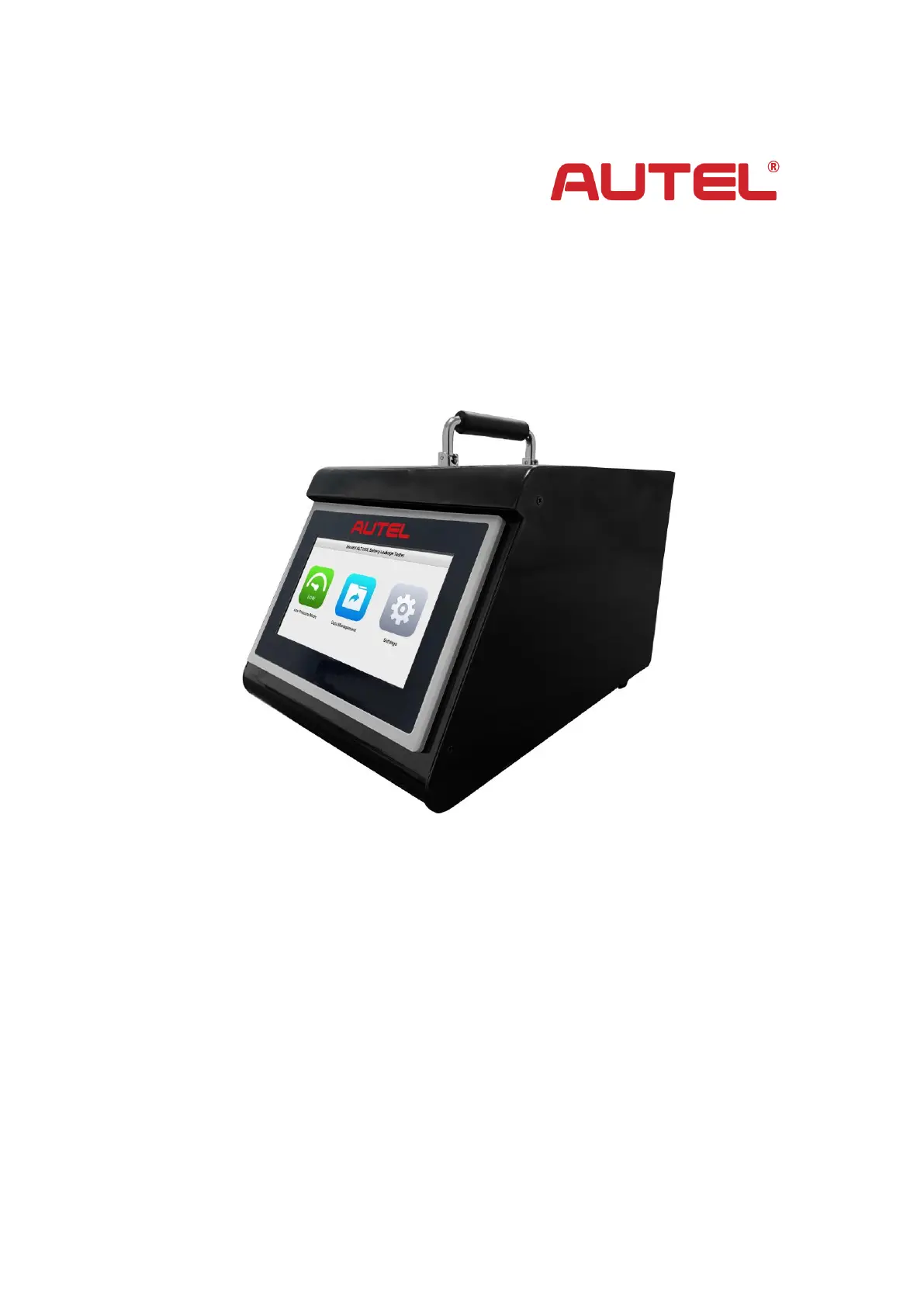

MaxiEV ALT100L
BATTERY LEAKAGE TESTER
USER MANUAL
CONTENT
1. Overview ................................................................................................................ 1
1.1 Features ...................................................................................................... 1
1.2 Applications ................................................................................................2
1.3 Device Component .................................................................................... 2
2. Safety Precautions ............................................................................................... 3
2.1 Operator Requirements ............................................................................ 3
2.2 Operating Environment ............................................................................. 3
2.3 Connection Precaution .............................................................................. 3
2.4 Operating Precautions .............................................................................. 4
2.5 Common Misoperation .............................................................................. 4
2.6 Emergency Treatments on Abnormal Conditions ................................. 4
2.7 Other Safety Warnings .............................................................................. 4
3. Main Technical Parameters ................................................................................ 5
4. Installation .............................................................................................................5
5. Device Connection ............................................................................................... 6
5.1 Panel Description ....................................................................................... 6
5.2 Device Connection ....................................................................................7
5.2.1 Air Supply Connection .................................................................... 7
5.2.2 Battery Pack Connection ................................................................ 7
5.2.3 AC Input Connection ....................................................................... 7
6. Operating Instruction ...........................................................................................8
6.1 Starting Up .................................................................................................. 8
6.2 Settings ........................................................................................................ 8
6.2.1 Language .......................................................................................... 9
6.2.2 Units ..................................................................................................9
6.2.3 -Fi Connection Wi ............................................................................. 9
6.2.4 Log Management ............................................................................9
6.2.5 Device Maintenance ..................................................................... 10
6.2.6 About ............................................................................................... 10
6.2.7 Calibration ......................................................................................10
6.2.8 Parameter Settings ....................................................................... 10
6.3 Low Pressure Mode Leakage Test ........................................................ 11
6.3.1 Parameters Setting ....................................................................... 12
6.3.2 Test Start ......................................................................................... 13
6.4 Data Management ................................................................................... 13
7. Repair & Maintenance ....................................................................................... 15
8. Transportation & Storage .................................................................................. 15
9. Environmental Statement .................................................................................. 15
MaxiEV ALT100L USER MANUAL
1
1. Overview
MaxiEV ALT100L Battery Leakage Tester is a developed high-accuracy newly
nondestructive testing equipment. It mainly uses compressed air as the medium
to apply specific pressure to the inner cavity or surface of the battery to be
tested and then uses sensitive sensors to detect the variations of pressure to
determine the leakage of the battery pack It can improve customer testing .
efficiency and product quality with pollution-free, quick, and accurate testing
characteristics in the new energy industry.
1.1 Features
⚫ High Sensitivity: High-sensitivity pressure sensing significantly improves
test accuracy and stability.
⚫ Large Screen Display: A 7-inch big-size LCD touch screen visually
displays the test progress and data.
⚫ Barcode Scanner: it supports barcode scanner access, directly scans
code, and displays the battery pack's ID to be tested.
⚫ Visualized Process: display the progress time of each stage during the
test.
⚫ Pressure Dual Display: the pressure dial and the test curve will display on
the same screen in real time.
⚫ Parameters Management: the system auto-remembers the last test
parameters, which is convenient for the next test modification and improves
efficiency.
⚫ Intelligent Alarm: the tester will prompt audible and visual alarms to
ensure safety when the test is abnormal or failed.
