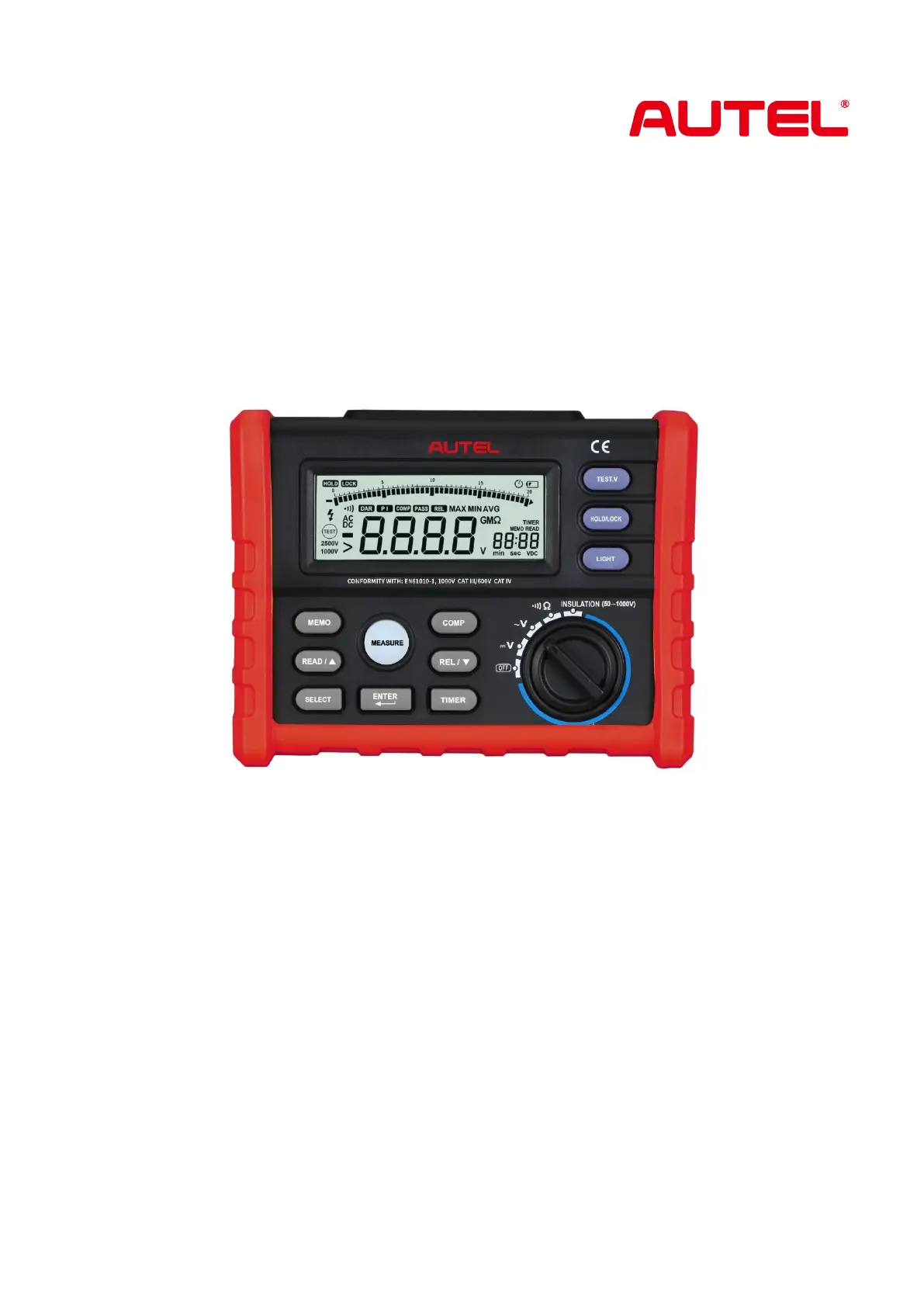

MaxiEV ITS100
USER MANUAL
DIGITAL INSULATION TESTER
CONTENT
1. Safety Instructions ............................................................................................ 1
1.1 Warning ................................................................................................... 1
1.2 Warranty .................................................................................................. 2
1.3 Accessories ............................................................................................. 2
2. Device Description ............................................................................................ 3
2.1 Front Panel ............................................................................................. 3
2.2 Display Screen ....................................................................................... 3
2.3 Screen Symbol ....................................................................................... 4
2.4 Operating Button .................................................................................... 5
2.5 Rotary Switch ......................................................................................... 6
2.6 Input Terminal ......................................................................................... 6
3. Function Instructions ........................................................................................ 8
3.1 Power On Function ................................................................................ 8
3.2 Automatic Power Off ............................................................................. 8
3.3 Hold Function ......................................................................................... 8
3.4 Relative Measurement .......................................................................... 8
3.5 Insulation Test Lock ............................................................................... 9
3.6 Data Storage .......................................................................................... 9
3.7 Data Reading ........................................................................................ 10
3.8 Data Delete ........................................................................................... 10
3.9 Data Compare ...................................................................................... 10
3.10 Timer Function ...................................................................................... 12
3.11 MAX/MIN/AVG ...................................................................................... 12
3.12 DAR & PI ............................................................................................... 13
4. Test Mode Instructions ................................................................................... 14
4.1 DC Voltage Measurement (DCV) ...................................................... 14
4.2 AC Voltage Measurement (ACV) ...................................................... 14
4.3 Continuity Test ...................................................................................... 14
4.4 Insulation Test ....................................................................................... 15
5. Tester Battery Replacement .......................................................................... 17
6. Specifications .................................................................................................. 18
7. Technical Index ............................................................................................... 20
7.1 DC Voltage Accuracy .......................................................................... 20
7.2 AC Voltage Accuracy ........................................................................... 20
7.3 Resistance Accuracy ........................................................................... 20
7.4 Insulation Test Accuracy ..................................................................... 20
MaxiEV ITS USER MANUAL100
1/ 21
1. Safety Instructions
This style of Digital Insulation Tester is designed according to the safety requirements of
the international electrical safety standard IEC61010- for electronic test instruments. is 1 It
designed and manufactured in strict compliance with the 1000V CAT and pollution level
2 regulations of IEC61010-1.
1.1 Warning
WARNING! To avoid possible electric shock or personal injury, follow these guidelines:
Please strictly follow the instructions in this manual to operate the tester, otherwise,
the protection function provided by the tester may be destroyed.
Do not use if the tester or test leads are damaged, or if the tester cannot operate
properly. If in doubt, please contact the manufacturer.
Before connecting the tester to the tested circuit, users must ensure to select the
correct test terminals and switch positions.
Before measuring, use the tester to measure the known voltage to verify whether the
tester operating normally. is
The voltage applied between the test terminals or between any terminal and earth
ground must not exceed the rated voltage marked on the tester.
Be careful when operating with a voltage exceeding 30Vac RMS, 42Vac PEAK, or
60Vdc as they pose a risk of electric shock.
Replace the battery as soon as the low battery indicator appears.
Cut o the power supply and discharge all high-voltage capacitors before performing
the resistance test.
Do not use the tester near explosive gas or steam.
