Instruction Manual
& Safety Warnings
IMPORTANT: Even if you have the Basement Watchdog Special
Backup Sump Pump System installed by someone else, you must read
and follow the safety information contained in this manual. Failure
to do so could result in property damage, serious injury, or death.
Battery Backup
Sump Pump
System
Table of Contents
Important Safety Warnings and
Instructions
Electrical Precautions 1
Battery Preparation 1
Battery Precautions 1
Introduction
Items Included in System 2
Additional Items Needed 2
System Specifications 2
Replacement Parts List 2
Pump & Pipe
Installation Instructions
Installation Options 3
Direct Discharge to Outside 4
Connection to Existing Discharge 5
Direct Discharge for Narrow Sumps 6
Connection to Existing Discharge for
Narrow Sumps 7
Battery Instructions
Preparation of the Battery 8,9
Control Unit Connections
Positioning the Float Switch 9
Connecting the Pump 9
Installing the Battery Fluid Sensor 10
Connecting the Battery 10
Connecting the Charger 10
Understanding the Warning
Lights and Alarms
Silencing the Alarm
During an Emergency 11
Battery Alarm 11
Cleaning Battery Terminals 11,12
Replacing the Battery 12
Fuse Alarm 13
Water Alarm 13
Pump Alarm 14
Replacing the Pump 14
Power Alarm 15
Charging 15
System Operating 15
Testing the System
Test-Reset-Silence Button 15
Testing the Float Switch 15
Using the Remote Notification
Remote Terminal 15
Remote Alarm 15
USB Data Port 16
Connect Modules 16
Maintenance Check List 16
Parts & Service Information
Technical Support 16
Troubleshooting Guide 17
Warranty 18
Other Products 19
This manual is for the systems that
have the BWSP-A backup controller,
which can accommodate maintenance
or maintenance free batteries.
Important Safety
Warnings & Instructions
SAVE THESE INSTRUCTIONS. This manual
contains important SAFETY WARNINGS and
OPERATING INSTRUCTIONS for the Basement
Watchdog Special battery backup sump pump
system. You will need to refer to it before
attempting any installation or maintenance.
ALWAYS keep these instructions with the unit so
that they will be easily accessible.
Failure to read and follow these warnings and
instructions could result in property damage,
serious injury, or death. It is important to read
this manual, even if you did not install the
Basement Watchdog backup sump pump system,
since this manual contains safety information
regarding the use and maintenance of this
product. DO NOT DISCARD THIS MANUAL.
ELECTRICAL PRECAUTIONS
This installation must be in accordance with
the National Electric Code and all applicable
local codes and ordinances.
Risk of electrical and fire hazard. May result
in death, serious injury, shock or burns.
To help reduce these risks, observe the
following precautions:
• DO NOT walk on wet areas of the basement
until all power has been turned off. If the
main power supply is in a wet basement, call
an electrician.
• handle the control unit with wet handsNEVER
or while standing on a wet surface.
• ALWAYS unplug the control unit and
disconnect the cables from the battery before
attempting any maintenance or cleaning.
• ALWAYS unplug the main pump when
installing or servicing the backup pump or
float switch to avoid electric shock.
• expose the control unit to water, rainDO NOT
or snow.
• place the control unit on the floor.DO NOT
• pull the cord when disconnecting theDO NOT
control unit. Pull the plug.
• use an extension cord. The electricalDO NOT
outlet should be within the length of the
controller’s power cord and at least 4 feet
above the floor.
• use an attachment not recommendedDO NOT
or sold by the manufacturer. It may result in
a risk of fire or injury from an electrical shock.
• DO NOT operate this product if it has received
a sharp blow, been dropped, or otherwise
damaged in any way.
• DO NOT use pump in pits handling raw sewage,
salt water, or hazardous liquids. This system is
for ground water use only.
• disassemble the control unit. DO NOT
• protect the electrical cord from sharpDO
objects, hot surfaces, oil and chemicals. Avoid
kinking the cord.
• the supply circuit has a dedicatedMAKE SURE
fuse or circuit breaker rated to handle the
power requirements of this system.
When service is required, contact Glentronics
technical support at 800-991-0466, option #3,
or send an e-mail to service@glentronics.com.
Return the control unit to the manufacturer for
any repairs at the following address:
Glentronics, Inc.
645 Heathrow Drive, Lincolnshire, IL 60069-4205
BATTERY PREPARATION
Sulfuric acid can cause blindness or severe
burns. Avoid contact with skin, eyes, or
clothing. In the event of an accident, flush
with water and call a physician immediately.
KEEP OUT OF REACH OF CHILDREN.
To help reduce these risks, observe the
following precautions:
• Someone should be within range of your voice
or close enough to come to your aid when you
work near a lead-acid battery.
• Have plenty of fresh water and soap nearby in
case battery acid contacts skin, clothing or eyes.
• Wear eye and clothing protection and avoid
touching your eyes while working with battery
acid or working near the battery.
• If battery acid contacts skin or clothing, wash
immediately with soap and water. If acid
enters eye, immediately flood eye with
running cold water for at least 15 minutes and
get prompt medical attention.
!
WARNING:
Battery posts and terminals
contain lead, lead compounds or chemicals known
to the State of California to cause cancer, birth
defects or other reproductive harm. Wash hands
after handling. See www.p65warnings.ca.gov for
more information.
!
WARNING:
Battery fluid can expose you to
chemicals including strong inorganic acid mists
containing sulfuric acid, which is known to the
State of California to cause cancer. For more
information go to www.P65warnings.ca.gov.
BATTERY PRECAUTIONS
Explosive gases could cause serious injury or
death. Cigarettes, flames or sparks could
cause battery to explode in enclosed spaces.
Charge in a well-ventilated area. Always
shield eyes and face from battery. Keep vent
caps tight and level.
To help reduce these risks, observe the
following precautions:
• smoke or allow a spark or flame in theNEVER
vicinity of the battery.
• Use the Basement Watchdog control unit for
charging a LEAD-ACID battery only. DO NOT
use the control unit for charging dry-cell
batteries that are most commonly used with
home appliances.
• Be sure the area around the battery is well-
ventilated.
• When cleaning or adding water to the battery,
first fan the top of the battery with a piece of
cardboard (or another non-metallic material)
to blow away any hydrogen or oxygen gas that
may have been emitted from the battery.
• drop a metal tool onto the battery. ItDO NOT
might spark or short-circuit the battery and
cause an explosion.
• Remove personal metal items such as rings,
bracelets, watches, etc. when working with a
lead-acid battery. A short circuit through one of
these items can melt it, causing a severe burn.
• ALWAYS remove the charger from the electrical
outlet before connecting or disconnecting the
battery cables. Check the polarity of the

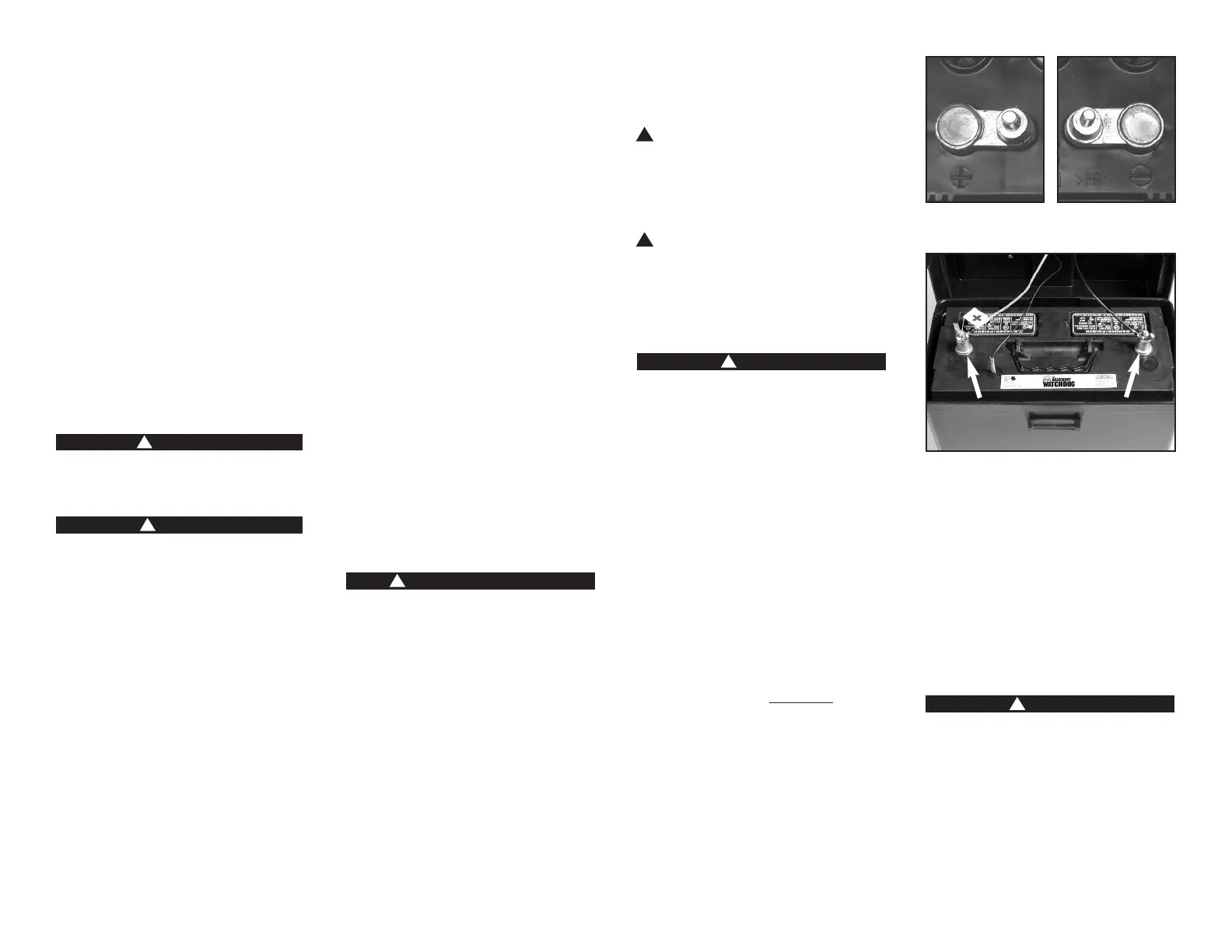

battery posts. The POSITIVE (+) battery post
usually has a larger diameter than the
NEGATIVE (-) post.
• When connecting the battery cables, first
connect the small ring on the end of the
BLACK wire to the NEGATIVE (-) post of the
battery, and then connect the large ring on the
end of the RED wire to the POSITIVE (+) post
of the battery.
• ALWAYS keep the cover secured on the battery
box by slipping the tabs through the fittings
on the front and back of the box.
Do not use this system to pump flammable
or explosive fluids such as gasoline, fuel oil,
kerosene, etc. This system is rated for
ground water use only.
DO NOT use this system in pits handling raw
sewage or other hazardous liquids.
Page 1
!DANGER
!DANGER
!WARNING / POISON
!DANGER
POSITIVE POST HAS
LARGER DIAMETER
NEGATIVE POST HAS
SMALLER DIAMETER
POSITIVE
POST
NEGATIVE
POST
!WARNING
Introduction
The Basement Watchdog Special backup sump
pump system is battery-operated. It is designed as
an emergency backup system to support your main
AC sump pump, and it will automatically begin
pumping any time the float switch is activated by
rising water. Should any malfunction or emergency
occur that involves the sump pump, the battery, or
the AC power, the Basement Watchdog system will
sound an alarm. A light on the display panel of the
control unit will indicate the cause of the alarm
and the corrective action.
For added reliability, the float switch has, not
one, but two floats. Should one float fail to
operate, the second float automatically activates
the pump.

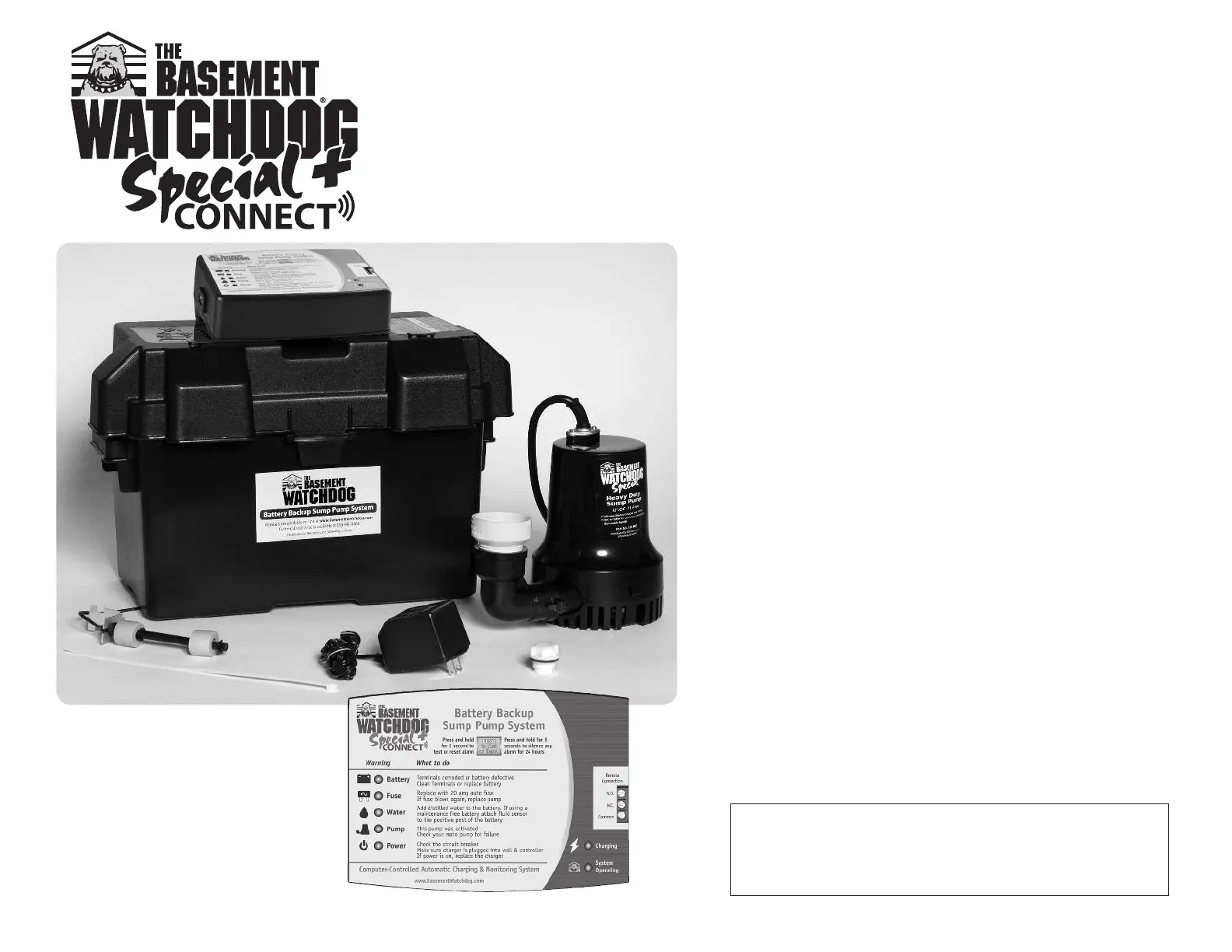

The Basement Watchdog Special Sump Pump
System includes:
• A control unit with a dual float switch, a
battery fluid level sensor, battery cables, and a
20 amp fuse
• A pump with a 1½” PVC pipe adapter
• A plastic wire tie for mounting the float switch
• A battery box
• A battery charger
• A battery cap with a hole to accommodate the
fluid sensor
You will also need to supply:
• A Basement Watchdog Big Standby Battery
(30HDC140S or BW-30F) or Basement
Watchdog Maintenance Free (AGM) Standby
Battery (BW-27AGM).
DO NOT use an automotive battery with
this system
DO NOT use a Basement Watchdog Emergency
Standby Battery (24EP6 or BW-24F) with this
system. It will not run the pump as long as the
Big or Maintenance Free (AGM) Standby Battery
• 1½” rigid PVC pipe and fittings
• PVC primer and cement
• A union with hose clamps or a “Y” connector
and two (2) check valves, depending on the
installation method you use
• A surge protector (recommended)
• Six (6) quarts of 1.265 specific gravity battery
acid (30HDC140S and BW-30F). Battery fluid is
not needed if using the Basement Watchdog
Maintenance Free (AGM) Standby Battery.
For narrow sump pits you will need some
additional parts:
• An “L” bracket at least six (6) inches long
(preferably one that will not rust)
• Two (2) stainless steel hose clamps
• One (1) stainless steel screw (#8-32 x 3/4”), a
matching washer & nut
To connect two batteries you will need:
• Two (2) batteries of the same age, type and
capacity (so they will have equal power).
• use batteries of different types, agesDO NOT
or capacities as they will not charge properly
• Another battery box
• Two (2) acid packs to fill the dry batteries
• A set of battery cables with rings on both
ends to connect the two batteries together
(available from Glentronics, Inc.)
Use of a Basement
Watchdog Klunkless
Check Valve™ will
provide quieter
operation. (See
page 18 for more
information.)
Replacement Part Numbers
Pump . . . . . . . . . . . . . . . . . . . . . . .1011002
Float switch assembly . . . . . . . . . . . .1020009
Fluid sensor assembly . . . . . . . . . . . .1014001
Pipe adapter . . . . . . . . . . . . . . . . . .1120002
Charger . . . . . . . . . . . . . . . . . . . . . .1015001
Battery box . . . . . . . . . . . . . . . . . . .1113003
Battery cap with hole . . . . . . . . . . . .1125000
Call 800-991-0466, option #3 to order parts.
System Specifications
Power supply requirements . . . . . .115 volts AC
Pumping capacity . . . . . . . . . .2600 GPH @ 0’
Pumping capacity . . . . . . . . .1850 GPH @ 10'
Pump dimensions w/elbow . . . . . .75⁄8” H x 9”W
Pump housing & strainer . . . . . .non-corrosive,
will not rust
Pump . . . .can run dry for short periods of time
Float switch . . . . . . . . . .independent, can be
set at any level
Page 2
Battery
Wires
Control Unit
Battery Box
Charger
Cap
Wire Tie
Float
Switch
Pipe
Adapter
Pump
Fluid Sensor
Produktspecifikationer
| Varumärke: | Basement Watchdog |
| Kategori: | Pomp |
| Modell: | Special+ Connect |
Behöver du hjälp?
Om du behöver hjälp med Basement Watchdog Special+ Connect ställ en fråga nedan och andra användare kommer att svara dig
Pomp Basement Watchdog Manualer
21 September 2024
18 September 2024
Pomp Manualer
- Pomp Nefit
- Pomp Vaillant
- Pomp Al-ko
- Pomp Bartscher
- Pomp Eurom
- Pomp Ozito
- Pomp Gude
- Pomp Silvercrest
- Pomp Bestway
- Pomp Vonroc
- Pomp Crivit
- Pomp Hyundai
- Pomp Ryobi
- Pomp Sicce
- Pomp Outwell
- Pomp Metabo
- Pomp Worx
- Pomp Milwaukee
- Pomp Tacklife
- Pomp Hazet
- Pomp Einhell
- Pomp Ultimate Speed
- Pomp SKS
- Pomp Gardena
- Pomp Hayward
- Pomp Eheim
- Pomp Nibe
- Pomp Husqvarna
- Pomp Oase
- Pomp Biltema
- Pomp Powerplus
- Pomp Sanibroyeur
- Pomp Danfoss
- Pomp Michelin
- Pomp Zodiac
- Pomp Powerfix
- Pomp Topeak
- Pomp Hozelock
- Pomp Lezyne
- Pomp Fluke
- Pomp For_Q
- Pomp Simpson
- Pomp Fieldmann
- Pomp Fluval
- Pomp Fuxtec
- Pomp Astralpool
- Pomp Abac
- Pomp Waldbeck
- Pomp Coleman
- Pomp Maruyama
- Pomp Jabsco
- Pomp Toolcraft
- Pomp Pontec
- Pomp ESPA
- Pomp Osram
- Pomp Pedrollo
- Pomp Park Tool
- Pomp Vivaria
- Pomp Plantiflor
- Pomp Little Giant
- Pomp Panduit
- Pomp Anova
- Pomp DAB
- Pomp Wayne
- Pomp T.I.P.
- Pomp JANDY
- Pomp Neptun
- Pomp Elpumps
- Pomp Lifan
- Pomp Enermax
- Pomp Liberty Pumps
- Pomp BluGarda
- Pomp Alpha Tools
- Pomp Grundfos
- Pomp Eco-Flo
- Pomp SHURflo
- Pomp EvoHeat
- Pomp MSW
- Pomp OKAY
- Pomp FIAP
- Pomp Barwig
- Pomp Ribimex
- Pomp Ebara
- Pomp Perlick
- Pomp Ergotools Pattfield
- Pomp Zéfal
- Pomp Zehnder Pumpen
- Pomp Comet
- Pomp SANDPIPER
- Pomp Heissner
- Pomp Blackburn
- Pomp OSIP
- Pomp Franklin Electric
Nyaste Pomp Manualer
27 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
16 Oktober 2024
15 Oktober 2024
15 Oktober 2024
15 Oktober 2024
15 Oktober 2024
15 Oktober 2024
