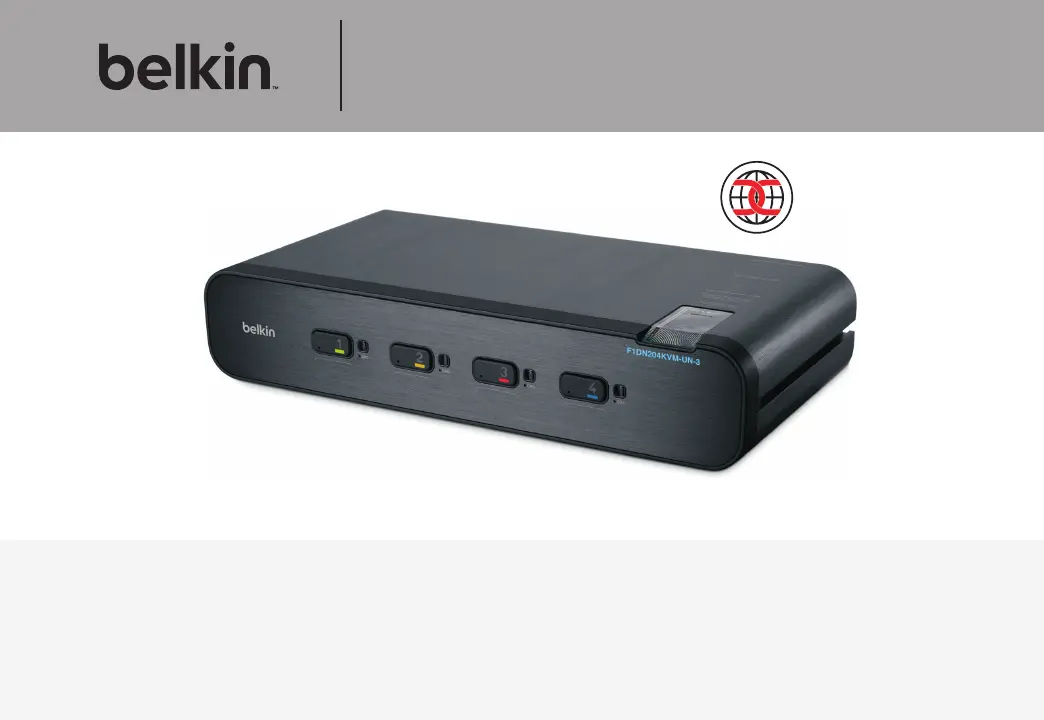

Secure Ultra High Def
DP/HDMI to DP/HDMI KVM Switch
User Manual
F1DN102KVM-UN-3 – Universal Secure 2-Port KVM, PP 3.0
F1DN202KVM-UN-3 – Universal Secure 2-Port Dual-Head KVM, PP 3.0
F1DN104KVM-UN-3 – Universal Secure 4-Port KVM, PP 3.0
F1DN204KVM-UN-3 – Universal Secure 4-Port Dual-Head KVM, PP 3.0
Document Number -
LNKPG-00537 Rev. A01
This Belkin product is compliant
with latest NIAP Protection Profile
PSS Ver. 3.0, which exceeds EAL4
and PP PSS Ver. 3.0.
N
I
A
P
P
P
P
S
S
3
.
0
C
E
R
T
I
F
I
E
D
C
O
M
M
O
N
C
R
I
T
E
R
I
A

i
Belkin® Secure Ultra High Def DP/HDMI to DP/HDMI KVM Switch
TABLE OF CONTENTS
SE C TIO NS 1234567
Table of Cont e nt s
Introduct ion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
User Guidance & Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Security Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tamper Evident Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Other Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Equipment Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unit Display Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Pre-Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connection and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Color Code Chip Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operating the KVM Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Common Access Card (CAC) Configuration and OPERATION . . 22
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

1
Belkin® Secure Ultra High Def DP/HDMI to DP/HDMI KVM Switch
INTRODUCTION
SE C TIO NS
Table of Cont e nt s 12345671
Thank you for purchasing this Belkin Secure DisplayPort/HDMI KVM.
This Switch is designed for use in secure environment installations. The
Switch offers safe centralized control, which prevents unintended data
transfer between computers running at different security levels. The
Switch provides the highest security safeguards and features that meet
today’s Information Assurance (IA) computing requirements.
Belkin Unive rsal Secure DisplayPort/ HDMI KVM is especially
challenging in terms of security as DisplayPort is a very robust protocol
by nature, which is capable of transferring various types of information,
such as USB and Ethernet other than display. Belkin has developed this
unique Secure KVM switch with the highest possible security in mind,
assuring no leakage of information between connected computers
through any channels including DP dedicated channels.
This User Manual provides all the details you’ll need to install and
operate your new Switch, in addition to expert troubleshooting advice—
in the unlikely event of a problem.
Reporting Belkin Product Security Vulnerability
If you are aware of potential security vulnerability while installing or
operating this product, we encourage you to contact us immediately
at the following email address: gov_security@belkin.com
Please note: Belkin Secure KVMs cannot be upgraded, serviced
or fixed.
Package Contents
• Belkin Advanced Secure DisplayPort/HDMI KVM
• 12V 1.5A DC Power Supply with WW interchangeable mains
connectors
• Interchangeable Port Color Chips
• QIG (Quick Installation Guide)
Import ant: This product is equipped with an always-on active
anti-tamper system. Any attempt to open the enclosure may
activate the anti-tamper system and render the unit permanently
inoperable. If the unit’s enclosure appears disrupted or if all the
port LEDs flash continuously, please call Belkin Technical Support
toll-free at (800) 282-2355.
Revision
A – Initial Release, 02 Apr 2018
