Sida 1/44

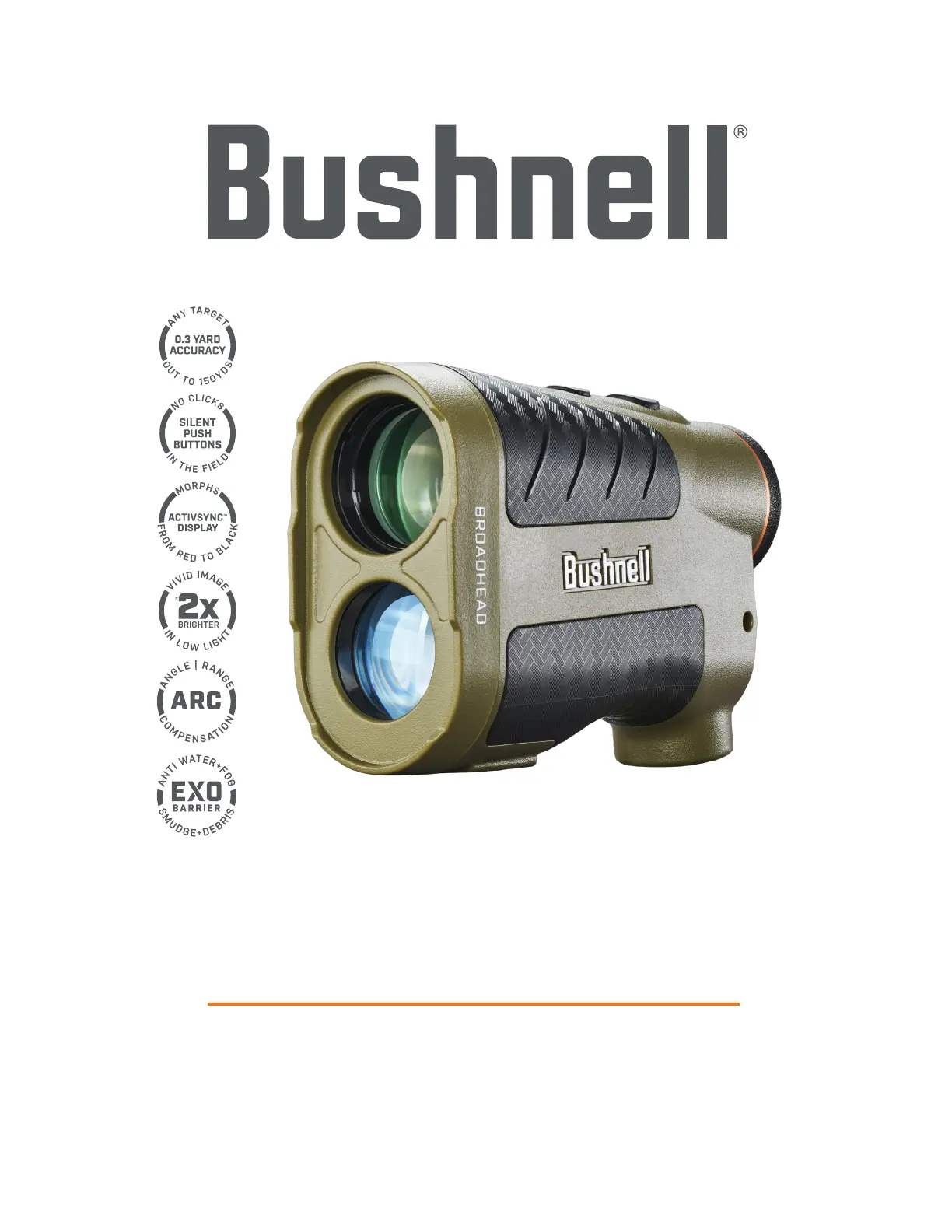

Model #: LA1500AD 01-22
OWNER’S GUIDE
BROADHEAD™
LASER RANGEFINDER
2
Thank you for purchasing your new Bushnell® Broadhead™ Laser Rangender.
This manual will help you optimize your viewing experience by explaining how to utilize the rangender's features
and how to care for it. Read the instructions carefully before using your rangender.
WARNING: As with any laser device, do not directly view the emissions for long periods with
magnied lenses.
INTRODUCTION
Your Bushnell® Broadhead™ is an ultra-compact, premium laser rangender with the latest Digital Technology, providing
precise range readings from 5-1500 yards/5-1371 meters. Measuring 1.3 x 4.2 x 2.9 inches, the 6-ounce Broadhead™ delivers
high-speed target acquisition, with +/- 1 yard accuracy to the maximum range. The Broadhead™ laser rangender features
Bushnell's patented ARC™ (Angle Range Compensation), a new Ranging Engine for faster, more consistent response and
readings, an ACTIVSYNC™ LCD with higher light transmission and water-resistant (IPX4) construction along with EXO™
Barrier Coating on the optics.
HOW OUR DIGITAL TECHNOLOGY WORKS
The Broadhead™ laser rangender emits invisible, eye-safe, infrared energy pulses. The Broadhead™ rangender's
sophisticated digital technology instantaneously calculates distances by measuring the time it takes for each pulse to travel
from the rangender to the target and back.
PARTS GUIDE
POWER/FIRE BUTTON
MONOCULAR EYEPIECE
BATTERY COMPARTMENT COVER
LASER TRANSMIT LENS
LASER RECEIVE LENS
MODE BUTTON
TRIPOD APAPTER
3
BATTERY ACTIVATION / BATTERY LIFE INDICATOR
Before rst use: Remove the battery compartment cover by lifting the battery cover tab and
then rotating the cover counter-clockwise. Remove and discard the red plastic disc covering
the positive battery terminal, then replace the battery cover. NOTE: It is recommended that
the CR2 3-volt lithium battery be replaced at least once every 12 months. Please insert the
negative end of the battery into the compartment rst.
Battery Level Indicator Icon (2):
Full charge
3/4 battery level remaining
1/2 battery level remaining
1/4 battery level remaining
Battery icon blinks - battery needs to be replaced, and the unit will not be operable.
BASIC OPERATION
• While looking through the laser rangender, press and release the Power/Fire button to activate the display.
• If the display appears blurry, rotate the monocular eyepiece in either direction until the display is sharp
for your vision.
• Placing the aiming circle (located in the center of the display) on a target at least 5-6 yards away, depress and hold the
Fire button down until the range reading displays below the aiming circle.
• Once a range is acquired, you can release the Fire button. The four "crosshairs" just outside the aiming circle will go
out, indicating the laser is no longer transmitting. The display will remain on and display the last distance measurement
for about 15 seconds until the display automatically switches off to extend battery life.
• You can press the Fire button again at any time to check the range to a new target. To re-re, press the button again.
• To scan the laser across an area and get continuously updated range readings, continue to hold the Fire button down
and sweep the rangender over multiple targets. The crosshairs outside the aiming circle will ash to indicate scan
operation.
DISPLAY INDICATORS/ICONS
The rangender's display incorporates the following Broadhead™
illuminated indicators:
• Angle Range Compensation Modes
• Bow Mode (1)
• Battery Level Indicator (2)
• Aiming Circle/Dot (3)
• Active/Scan Laser Indicator (4)
• Targeting Modes
• Target Mode (5)
• Brush Mode (6)
• Primary Numeric Display displays Line-of-sight Distance (7)
• Range (Distance) Units (8): Y=Yards, M=Meters
• Secondary Numeric Display (9)
(True Horizontal Distance for Bow Mode)
• SETUP Mode (10)
• Angle Indicator (11)
TRIPOD MOUNT
Molded into the bottom of this Bushnell Rangender is a threaded 1/4" - 20 female tripod mount
that will allow you to attach a tripod for a more stable operation during long periods of use.
1
2
56
7
4
8
9
10
11
3
