Model Number: BG-CJ-RS

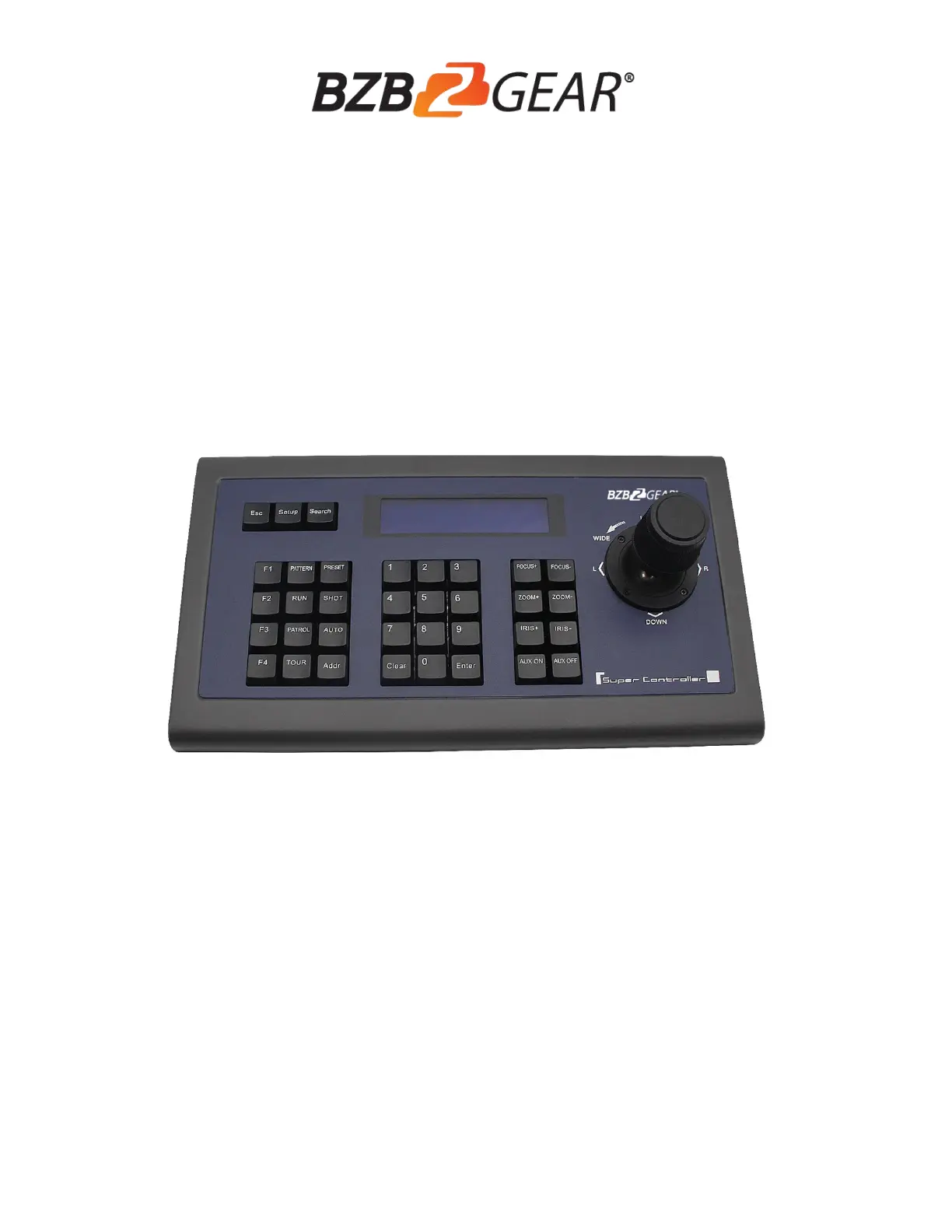

Joystick Keyboard Installation & Operation Manual

Easy p , tilt & zoom controls for any RS-232, RS485, RS422 VISCA, Pelco-P or an

Pelco-D protocol camera!

Controls pan & tilt with variable speed.

Uses 3-Dimensional joystick with “twist” control for variable zoom.

Page of 2 11

Key Product Features

•All Metal housing.

•VISCA, PELCO-D and PELCO-P protocol support.

•Large Menu display.LCD

•K -press BEEP confirmation (optional set on or off).ey “ ” –

•Pan, tilt, zoom, iris and focus control.

•Variable speed control p , tilt, zoom, focus, and presets.of an

•Auto/Manual Focus and Iris.

•Cameras #1-6 Select buttons.‘Quick Key’

•Quick preset set & call (1 –9)

•Preset Save, Call and Clear.

•Real time display the current status.of

•Short circuit and overcurrent protection.

•Automatic recovery program for the communication port(s).

Key Technical Specifications

•Control Interfaces:

RS232 full-duplex, RS485 semi duplex, RS422 full-duplex.

•Variable Baud Rate 1200 to 19200 .bps

•Maximum communication distance: RS485: 3,937ft [1200 using 24m]

gauge twisted pair cabling

•Can control imum 5 cameras via Pelco-D/P.a max 25

•Voltage: 12V .DC

•Power Consumption 6W Max.:

•Display: LCD.

•Working Temperature: °F ~ 122°F [-10° ~ +50° C].14

•Working Humidity: 10 ~ (n -condensation).90% on

•Weight 3 lbs. [1.5 kg]3.

•Dimensions: (W) x 1 (D) x 3 [ x 181 x ]. 12.6”7. ”4. ”(H) 320mm mm 110mm

Page of 3 11

In the Box

•Keyboard with three-axis control joystick.

•5p screw terminal plug (RS422/RS485).

•12VDC Power Supply.

•This Manual.

Installation

•Power Supply Interface (5.5mm x 12mm center pin JEITA style jack):

12V 20DC / 00mA power supply.

•RS485/422 interface (5p screw terminal):

1:485+ 2: 422R 4: 5:/422TxA, 485-/422TxB, 3: xA, 422RxB, 485/422 .Gnd

•RS232 interface (DB9M port) 2:Rx, 3:Tx, 5:Gnd.:

Hardware Features

•Keys momentary push buttons (keys).:

•Joystick: 3-axis joystick.

•Digital display: LCD display.

Control Mode

•VISCA PELCO-P and PELCO-D protocol support.,

•Control interfaces:

o5p Screw Terminal ( 4 / 4 ).RS 85 RS 22

oDB9 (RS232).

•Baud rate: 1200, 2400, 4800, 9600, 19200.

•Parameters b , stop bit, o parity.: 8its 1 N
