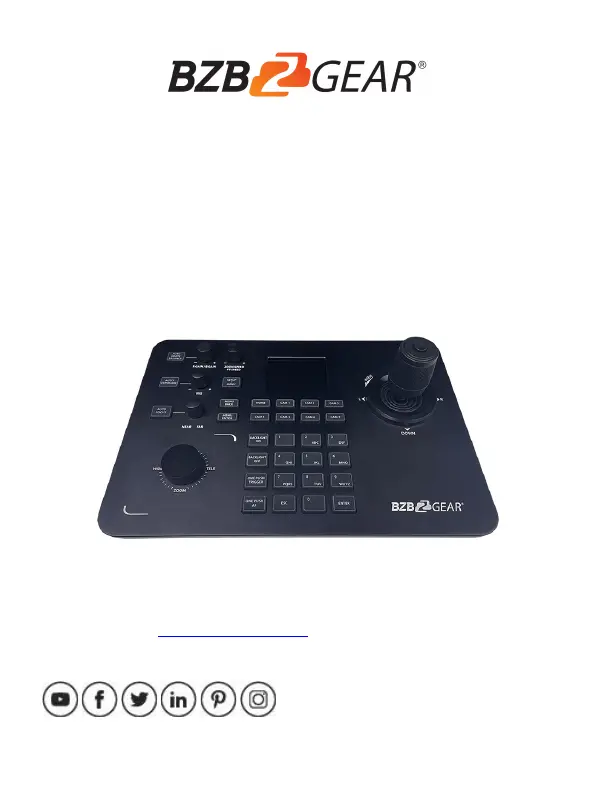

BG-Commander
PTZ Camera Controller
User Manual
CONTACT
1.888.499.9906 | | bzbgear.comsupport@bzbgear.com
FOLLOW US
- -01
Thank You!
Thank you for purchasing the BG-Commander IP/Serial PTZ joystick controller. This manual will help
you familiarize yourself with the capabilities and functions of this device. Before setting this device up
it is recommended that you read this manual in its entirety to ensure optimal performance. This
product has been designed for years of trouble-free use. To keep this product functioning optimally
please follow these recommended guidelines for care and maintenance.
Precautions
•Never expose the controller to moisture.
•Do not drop the controller.
•Clean only with a soft dry microfiber cloth.
•Connect controller with only PoE or the included power supply.
•Do not disassemble the unit in any way to avoid risk of electrical shock or damage.
There are no user serviceable parts, and this will void your product warranty.
•Only use within the recommended temperature and humidity parameters
oOperating temperature range: 14° - 122°F (-10° - 50°C)
oOperating humidity range: 10 –90%
1.Product Description
1.1 Overview
The BG-Commander is designed to provide precise control of BZBGEAR’s complete line of
cameras with support for both IP and serial control protocols. supports VISCA over IP and It
ONVIF protocols as well as VISCA, Pe -D, and Pelco- via RS-232/422/485. web lco P The
interface makes it easy to quickly add IP cameras.
- -02
1.2 Product Features
•Supports IP and analog control modes
•Supports VISCA over IP, ONVIF, Pelco-P/D, and VISCA protocols
•Variable speeds for all control axes
•Zoom can be controlled by twisting the control handle or the dedicated zoom knob
•Integrated browser interface for quick setup
•Supports PoE
1.3 Interface Description
Number
Name
Function
1
Power switch
Power on/off
2
Power
Standard 5.5/2.1 power port, DC 12V2A±10%
3
LAN
Network Connection
4
RS232
Supports Visca, Pelco-P/D
5
RS422
Supports Visca, Pelco-P/D
