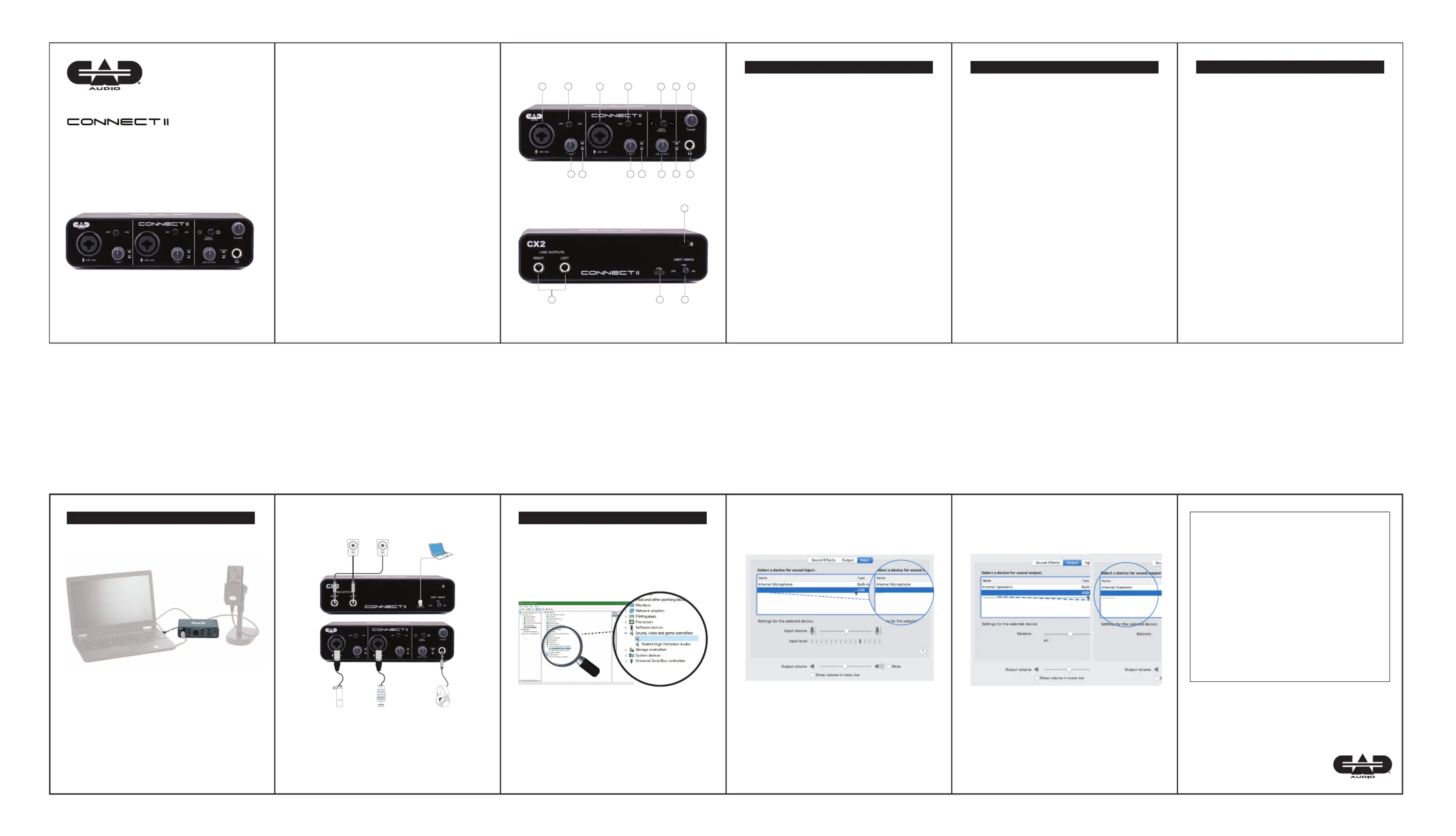

CAD Audio CX2 Interface CAD Audio CX2 Interface

CX2 Connect II

USB Audio Interface

User Guide

CX2 Connect II USB Audio Interface

Introduction

Record at home or on the go with the CAD Audio Connect II USB

Audio Interface. The Connect II features 2 XLR combo inputs

which can accommodate either a microphone or instrument-level

audio signal, making it a perfect solution for the singer/songwriter;

or a vocalist with an accompanying instrumentalist. The CX2

offers 48V phantom power and is fully USB powered, no external

power source required. You’ll get high-quality professional

recordings with 24-bit/96kHz digital resolution, and the rugged

all-metal body is built to withstand the toughest conditions.

The CX2 contains the following features:

• Value-packed 2-channel USB audio interface for home

or mobile recording

• Record at professional-level 24-bit/96kHz resolution

• Includes +48V phantom power for use with studio condenser

microphones

• USB bus powered

• Two preamps with combo inputs for recording either microphone

or instrument-level audio

• Compatible with nearly any recording software on Windows®

or Macintosh® operating systems

CAD Audio

6573 Cochran Rd., Bldg. Solon, OH 44139 U.S.A.I

Tel: (440) 349-4900 Fax: (440) 248-4904

Sales: 800-762-9266 cadaudio.com

Distributed Worldwide by American Music and Sound

925 Broadbeck Drive, Suite 220

Newbury Park, CA 91320 U.S.A.

Tel: (800) 431-2609 Fax: (800) 431-3129

1. Input Channel 1 - This input accepts both XLR and 1/4"

(6.35mm) style plugs. Connect microphone, instrument, or

line-level signal source here. The 1/4" (6.35mm) plug may be

of TRS (tip-ring-sleeve) balanced or TS (tip-sleeve)

unbalanced configuration.

2. Instrument/Line switch for channel 1. Select to optimize level

and impedance for 1/4" (6.5mm) signal source.

3. Input Channel 2 - This input accepts both XLR and 1/4"

(6.35mm) style plugs. Connect microphone, instrument, or

line-level signal source here. The 1/4" (6.35mm) plug may be

of TRS (tip-ring-sleeve) balanced or TS (tip-sleeve)

unbalanced configuration.

4. Instrument/Line switch for channel 2. Select to optimize level

and impedance for 1/4" (6.35mm) signal source.

5. MONO/STEREO - MONO mode sums channel 1 and channel

2 inputs to record left and right (useful for pod cast interviews).

STEREO mode passes channel 1 to record left and channel 2

to record right (for musical tracking or live stereo recording).

6. POWER - This light indicates that Connect II is being powered

by USB.

7. PHONES - This knob controls headphone monitor volume.

8. GAIN - This knob controls the gain (amplification factor) for

channel 1.

9. SIG - This light indicates that an audio signal is present on

channel 1. CLIP - This light indicates that the signal may be

overloading channel 1.

Controls

10. GAIN - This knob controls the gain (amplification factor) for

channel 2.

11. SIG - This light indicates that an audio signal is present on

channel 2. CLIP - This light indicates that the signal may be

overloading channel 2.

12. OUTPUT - This knob controls the LINE OUTPUT signal level.

13. +48V - This light indicates that 48V phantom power is present

at the XLR input connectors.

14. Headphone output - Connect your monitor headphones here.

This is a 1/4" (6.35mm) TRS (tip-ring-sleeve) stereo jack.

15. Kensington® Security Slot. Connect a Kensington®

compatible security device here to help protect your interface.

16. LINE OUTPUTS - These are the left and right line-level signal

outputs. These jacks accept TS (tip-sleeve) and TRS

(tip-ring-sleeve) 1/4" (6.35mm) plugs.

17. USB 2.0 Type-C connector. Use this to connect to your

computer via USB.

18. +48V - This switch enables +48V phantom power at the XLR

input connectors.

Controls

Two-Year Limited Warranty

CAD Audio hereby warrants that this product will be free of defects in material and workmanship for a

period of two years from the date of purchase. In the unlikely event that a defect occurs, CAD will, at

its option, either repair or replace with a new unit of equal or greater value. In the event that a suitable

replacement is unavailable, CAD Audio may elect to reimburse owner for the cost of local repairs or

issue a refund in the amount of the original purchase price. Items must be purchased from an

authorized CAD Audio dealer, and the warranty is not transferable from the original owner. Please

retain proof of purchase to validate the purchase date and include it with any warranty claim.

This warranty excludes exterior finish or appearance, damage from abuse, misuse of the product, use

contrary to CAD’s instructions or unauthorized repair. All implied warranties, merchantability, or fitness

for a particular purpose is hereby disclaimed and CAD hereby disclaims liability for incidental, special

or consequential damages resulting from the use or unavailability of this product.

This warranty gives you specific legal rights and you may have other rights that vary from state to

state. Some states do not allow the exclusion or limitation of incidental or consequential damages or

limitations on how long an implied warranty lasts, so the above exclusions and limitations may not

apply to you.

Note: No other warranty, written or oral is authorized by CAD Audio.

To initiate a warranty claim, please contact American Music and Sound at 1-800-431-2609 to

obtain a return authorization number and shipping instructions.

• A return authorization is required for all returns. RETURNS WITHOUT A

PRE-APPROVED RETURN AUTHORIZATION NUMBER WILL

BE REFUSED.

• Please use at least 3 inches of padding surrounding the product for

protection during shipment

• Retain your tracking number until your warranty claim has been resolved

• We recommend using an insured shipping method in case of loss

or damage during shipment

If outside the United States, contact your local dealer or distributor for warranty details.

Applications

Specifications

Frequency Response ..................................................... 20Hz-20kHz

Resolution/Sample Rate ................................................ 24Bit/96kHz

Phantom Power .......................................................................... +48V

Dynamic Range ................................................... 118dB (A-weighted)

EIN ..................................................................... -110dBu (A-weighted)

Max Input Level

Mic.............................................................................................. +8bBu

Instrument ................................................................................ +11dBu

Line...........................................................................................+19dBu

Input Impedance

Mic........................................................................................... 3k ohms

Instrument ..............................................................................1M ohms

Line........................................................................................20k ohms

Gain Range ................................................................................. 50dB

Weight............................................................................. 1.1lbs (0.5kg)

Dims ..............................................................................7.5" x 6" x 2.1"

(19cm x 15.3cm x 5.4cm)

CAD Audio CX2 Interface

Windows®:

Step 1: Connect this product with computer via USB cable

Step 2: Computer open device manager

Step 3: The selected "Sound, video and game controllers" shows

the device name: “CAD Audio CX2 Interface” of the product

Computer Interface Macintosh®:

Step 1: Open the Mac OS System Preferences.

Step 2: Select “Sound”, then “Input”.

Step 3: Select the device “CAD Audio CX2 Interface” for sound

input.

Macintosh®:

When you need to monitor through this product, open the Mac OS

System Preferences, select “Sound”, then “Output”. Select the

device “CAD Audio CX2 Interface” for sound output.

1 3 4

2 5 6 7

1410 11 128

17 1816
