Sida 1/28

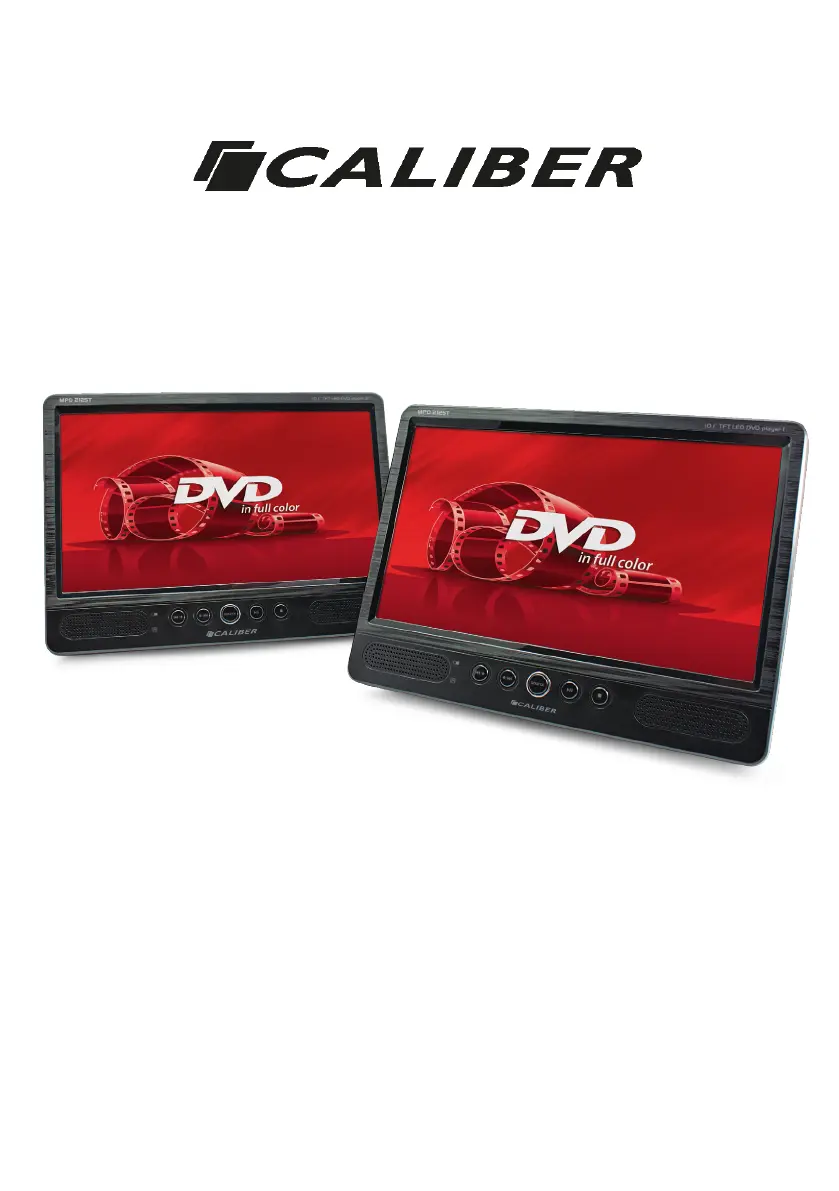

MPD 2125
Manual
NL • FR • DE • GB • ES • SE • IT • PT • PL • GR • CZ/SK
Signal system; PAL/NTSC
Monitor size: 1 inch TFT LED screen10.
Resolution: 1024(W) x 600(H)
Frequency response: 20Hz to 20kHz (1 dB)
Video output: V p-p 5 Ohm unbalanced1 7
Audio output: Vrms / 1 KHz, 0 dB1.2
Dynamic range: >85dB
Laser: Semiconductor laser, Wave length: 650nm
Compatible discs/files: CD / DVD / VCD / MP3 / MPEG4 / DivX / JPEG
Built-in connections: - Standard USB 2.0 reader
- Standard SD card reader
- 3.5mm Jack headphone socket
- 3.5mm AV-output (jack to jack cable included • to connect other player / additional monitor)
- 3.5mm AV-input (jack to jack cable included • to function as additional monitor)
- DC input (Warning! only us provided V charger (with cigarette lighter plug) 12~24
or an original Caliber 2 (not incl.) wall adapter). PS3
- DC output (does not apply)
Power supply: DC 9-12V 1.0A
Power consumption: <1 5W
Operating temperature: 0~35
o
C
Battery Type: 1200 mAh Li Polymer, output: 7.4V
Size player (closed) (W) (H): 242 x 183 x 39(D) mm
MPD 212 5T Specifications
How to use the headrest mount
Close the desk stand on the back of the unit and lay the player face down on a soft surface so it will not be
damaged.
1. Lay the short strap which has the retainer on it across the back as shown.
2. Pass the longer strap through one of the fixing loops on the back panel.
3. Now thread the strap through the retainer on the center of the other strap.
4. Pass the strap through the other fixing loop.
5. The straps are now in place.
- Hold the player in position on the back of a front seat headrest.
- While holding the player securely in place, loop the straps
around the the headrest, securing the ends with the clips.
123 4
5
We are continuously improving/updating our products and product information.
It’s therefore possible that there is a slight di󰀨erence between the description in this manual to the operation of the product.
If something is di󰀨erent or not clear; always check our website for the most current version.
MPD 2 12 5T Connections and buttons
1. Display
2. Open slide-button
to open the player to insert a disc
3. W: to scroll through the menus.
7: previous track (music) or chapter (movie).
4. S: to scroll through the menus.
8: next track (music) or chapter (movie).
5. Source: to select DVD, USB, SD or AV-in source.
6. 12: play/pause playback (music/movie).
7. 3: stop playback (music/movie).
8. Built-in speakers
9. IR receiver: receiver for remote.
10. LED indication:
Solid: Fully charged or switched ON
Charging: LED is blinking.
11. Power switch: power ON/OFF.
12. SD card reader: for standard SD card
13. USB port: for standard USB input.
14. Headphone socket: for 3.5 mm jack
headphone plug (headphones included).
15. AV output:
for 3.5 mm jack plug to connect to the other player (cable provided) or
connect to TV/screen (cable included).not
16. AV input:
for 3.5 mm jack plug to connect to the other player (cable provided) or
connect to another source (cable included).not
17. DC output:
no useable function
18. DC input*:
to power the player or to recharge the battery.
- 12~24V car charger included
(split wired • for the loading of both devices at the same time)
- 230V wall charger (PS32). sold separately
* (Warning! only us provided 12~24V charger (with cigarette lighter plug)
or an original Caliber PS32 (not incl.) wall adapter).
8
1
2
8109
3 4 5 6 7
11
12
13
14
15
16
17
18
BOTH PLAYERS
DVD Bracket (sold separately)
NOT included!
Wall charger 230V included
Product code: “DVD-Bracket”
EAN:
87.14505.045 6.01

Produktspecifikationer

Varumärke: Caliber
Kategori: Bärbar DVD-spelare
Modell: MPD2125T
