NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS

TOOLS AND MATERIALS REQUIRED

- Philips Screw Driver

- Blade Screw Driver

- Step Ladder

- Wire Cutters

- Wiring supplies as required by electrical code.

DUAL MOUNT SERIES

INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS

READ ALL INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS

SAVE THESE INSTRUCTIONS

INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,

NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.

Consult a qualified electrician if you are not familiar with wiring.

“ for purchasing our product. It is our policy to furnish you with high quality Thank you”

products at a fair price. With proper installation your fan should provide you with years of

money saving comfort.

This fan is guaranteed to be free from defects in workmanship and Material for a period

of five (5) years from date of purchase. Within the first (1) year from date of purchase any

defective product should be returned to your along with proof of purchase. RETAIL OUTLET

For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free

of defects. We will correct such defects or replace the motor assembly at our option if the

product is returned, , to us. The returned fan must be accompanied by FREIGHT PREPAID

your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of

removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as

such by accident, misuse, improper installation or by affixing any accessories IS NOT covered

by this warranty. As a result of varying climatic conditions in our area this warranty does not

cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.

WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with

5 YEAR LIMITED WARRANTY

11/16

CF-5

11/19

.rekcitS AS C eht fo LAVOMER ro snoitcurtsni

TROUBLESHOOTING

TROUBLE SUGGESTIONS

- Check fuses and circuit breakers.

1. Fan will not start - Check wiring connections to fan.

- Check wiring connections in switch housing.

CAUTION: Turn power off for last two items.

2. Fan sounds noisy - Check to make sure that all screws in motor housing are snug.

- Check to make sure that blade bracket screws are tight.

- Check to make sure that marrettes in switch housing

are not rattling against wall of switch housing.

- If fan has a light kit make sure switch housing

screws and set screws are tight.

- Some fan motors are sensitive to signals from solid

state variable controls. If solid state controller is

used, change to an alternative control. (See a

representative for a list of available controls.)

- Allow a 24 hour break in period to eliminate most noises.

3. Fan wobbles - Check that all blades are screwed firmly into blade brackets.

or shakes

excessively.

- Check that blade brackets are secured firmly to motor.

- Check distance from tip of blades to ceiling.

- Check distance between blade tip to blade tip. All

measurements should be equal. Loosen blade

screws and position blade until even then re-tighten.

- Check that the downrod hemisphere notch is engaged in canopy.

- Check to make sure that jam screws in downrod are tightened.

- Make sure canopy and mounting bracket are

tightened securely to wooden joist.

- Make sure warpage has not occurred in wooden

blades. If so, contact the customer service

department for replacement parts.

2555 Rue Bernard

Lefebvre Laval, Quebec

H7C 0A5

PH: (450) 665-2535

FX: (450) 665-0910

2157 Parkedale Ave.,

Brockville, Ontario

K6V 5V6

PH: (613) 342-5424

FX: (613) 342-8437

Questions or Concerns Contact At The Following Numbers Before Returning Product

To The Store:

1-800-265-1833 (English) / 1-800-567-2513 (French)

Monday through Friday 8:00 AM to 5:00 PM E.S.T.

Pg. #11

SAFETY PRECAUTIONS

1. Turn off power at main electrical service box before starting installation.

2. Electrical connections must comply with local code ordinances, national

electrical codes, CEC, NEC and ANSI/NFPA 70.

3. Make sure the installation site you choose allows the fan blades to rotate

freely without any obstructions.

4. When mounting the fan on a ceiling outlet box, Use an approved (CSA for

Canada and UL for U.S.) ceiling fan box marked " ". FOR FAN SUPPORT

5. WARNING: To reduce the risk of fire, electric shock, or personal injury,

mount fan only to an outlet box marked acceptable for fan support and use

mounting screws provided with the outlet box. Most outlet boxes commonly

used for the support of lighting fixtures are not acceptable for fan support

and may need to be replaced. Consult a qualified electrician if in doubt.

Ensure the outlet box is securely installed in place such that it is able to

support at least the fan weight.

6.Total Fan Weight For Reference: 48"approximate 8.0 kgs(17.63lbs).

52"approximate 9.0 kgs(19.84lbs).

Pg. #2

- To r

- Mount

floor or

-DO

chain

WARNING

educe the risk of fire or electrical shock, ONLY use model CQ005

remote control for optional remote control adaptability.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT

AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.

with the lowest moving parts at least Meters (7 Feet) above 2.10

grade level.

NOT operate reversing switch while fan blades are in motion. Fan

must

turned

off

and

rotating

blades

stopped,

reverse

chain

pulled,

the

speed

pulled

again

start

the

opposite

direction.

- WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS, ENSURE THE FAN

LOWER COVER IS SECURELY ATTACHED ON THE FAN UPPER COVER BEFORE USE.

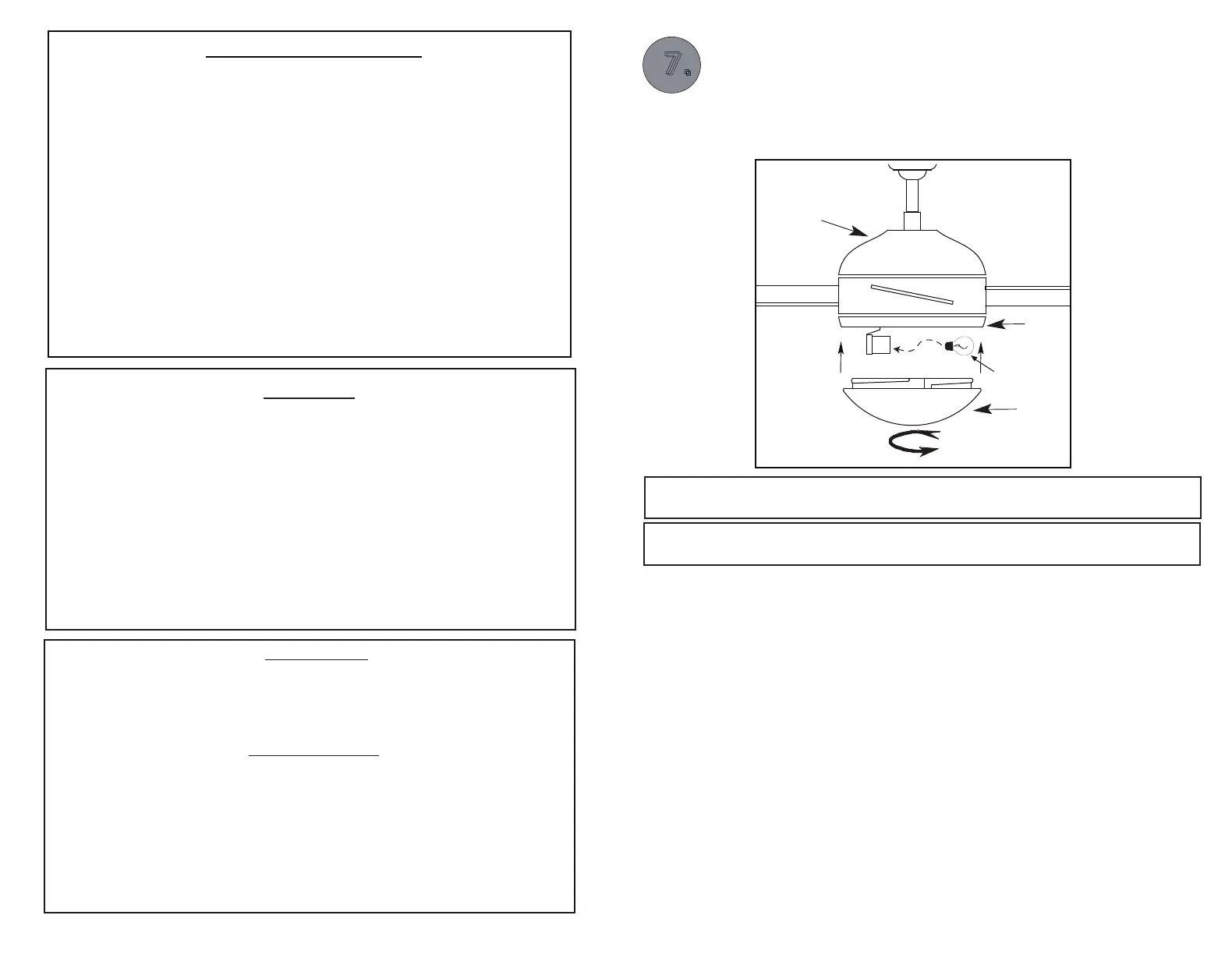

WARNING : BE SURE TO TURN OFF POWER BEFORE INSTALLING

.LIGHT ASSEMBLY

- Install proper wattage and type of bulb dentified on light housing or shade.

- Place glass onto the fan and turn to secure.

Fig.9

Bulb

Motor

Glass

Light Kit

WARNING: Ensure that all connections, set screws and screws are securely

tightened before the next step.

To clean the fixture, turn off the power, wait for it to cool, and wipe the fixture

with a clean, soft cloth.

INSTRUCTIONS

The slide switch is for forward/reverse rotation.

In warm weather: Set to forward rotation

(counter-clockwise). Airflow will be directed

downward, circulating cold air.

In cold weather: Set to reverse rotation (clockwise). Airflow will be directed upward,

circulating warm air..

REMOTE CONTROL

Install DC1.5V/AAA*2pcs battery (not included).Operation buttons on the remote:

*Hold

down to increase or decrease the light.

The light has

a memory function

so the light will stay at

the same brightness as the

last time

it was

turned off.

LIGHT ON/OFF: Press r se imm t y to turn or off t t.and elea edia el on he ligh

DIMMER- Press and hold to dim or brighten lights to the desired level

and release ncandescen ligh bulbs or dimmable LED bulb only) . (I t t .

HI : Turn on the fan at high speed

MED : Turn on the fan at medium speed

LOW : Turn on the fan at low speed

OFF : Turn off the ceiling fan

Pg. #10 Pg. #3

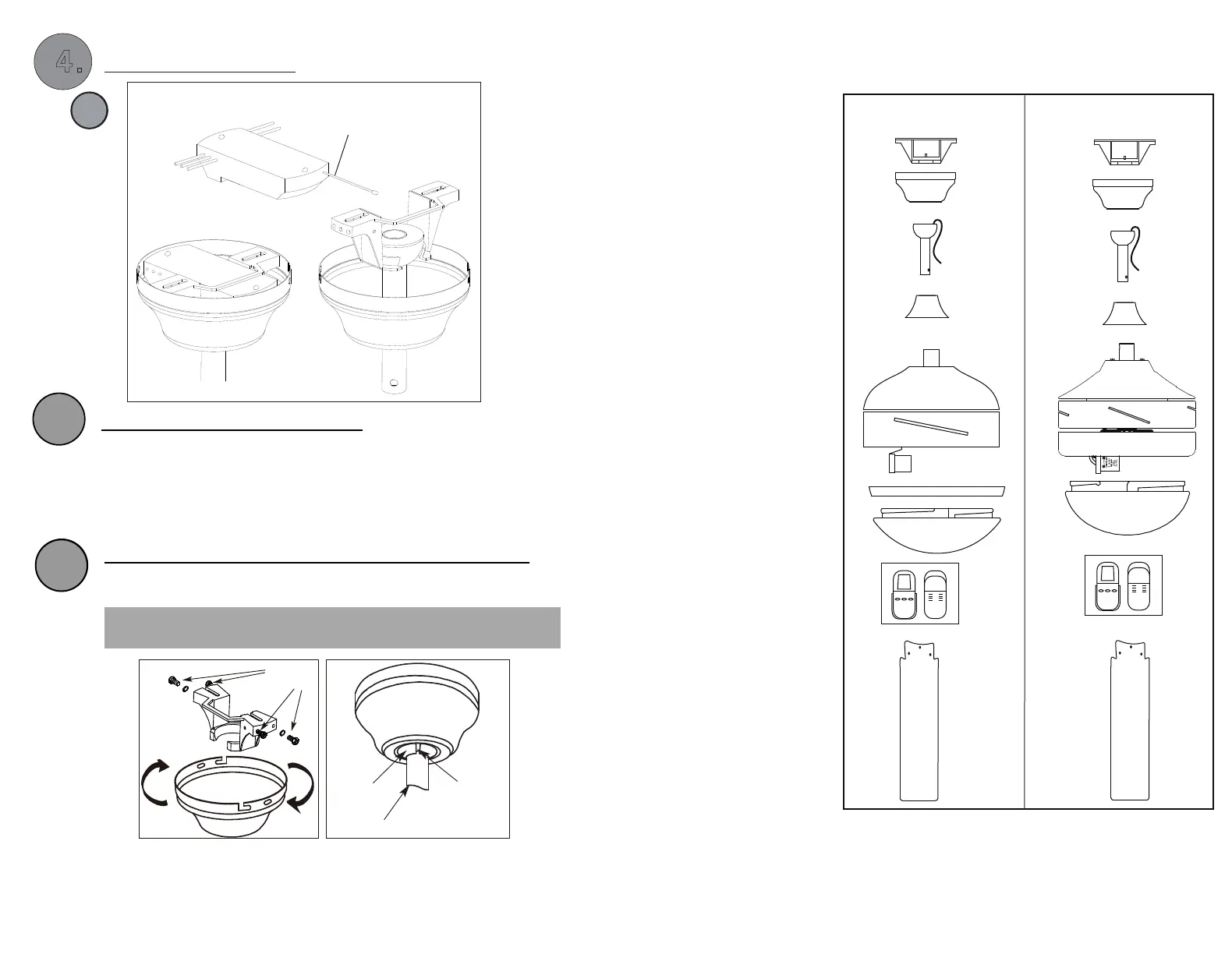

ASSEMBLY DRAWING

A. Mounting Bracket

B. Canopy

C. Downrod Assembly

D. Yoke Cover

E. Fan Motor Assembly

F. Motor Cover

G. Glass

H. Remote Control

I. Fan Blade

Fig.1b

Fig.1a

For model Calibre For model Preston or Cove

or Corbo

5. MOUNTING FAN ASSEMBLY

- Place two screws and washers on mounting plate (marked B on diagram)

which correspond with slots in canopy. Screw in two turns.

- Position canopy to mounting plate aligning slots to screws (marked B on

diagram) then turn to lock.

- Position and tighten the two screws and washers (marked A on diagram)

then tighten the two screws (marked B on diagram).

6. ENGAGE HEMISPHERE (Downrod Mount Only)

- Carefully rotate fan assembly until groove in hemisphere locks over tab of

canopy assembly.

WARNING: Failure to seat tab in groove could cause damage to

electrical wires and possible shock or fire hazard.

NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket

faces towards the top of the slope. Depending on the slope, a longer

downrod may be required to prevent fan blades from hitting the ceiling.

Downrod

Hemisphere Groove

(A)(B)

(B)

Washers

(A)

Fig.8a Fig.8b

ELECTRICAL HOOK-UP

CFig.7b

ANTENNA

(Leave unconnected

and do not cut)

VIEW AFTER INSTALLATION
