NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS

TOOLS AND MATERIALS REQUIRED

- Philips Screw Driver

- Blade Screw Driver

- Step Ladder

- Wire Cutters

- Wiring supplies as required by electrical code.

INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS

READ ALL INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS

SAVE THESE INSTRUCTIONS

INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,

NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.

Consult a qualified electrician if you are not familiar with wiring.

CF-24C

12/20

“ for purchasing our product. It is our policy to furnish you with high quality Thank you”

products at a fair price. With proper installation your fan should provide you with years of

money saving comfort.

This fan is guaranteed to be free from defects in workmanship and Material for a period

of five (5) years from date of purchase. Within the first (1) year from date of purchase any

defective product should be returned to your along with proof of purchase. RETAIL OUTLET

For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free

of defects. We will correct such defects or replace the motor assembly at our option if the

product is returned, , to us. The returned fan must be accompanied by FREIGHT PREPAID

your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of

removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as

such by accident, misuse, improper installation or by affixing any accessories IS NOT covered

by this warranty. As a result of varying climatic conditions in our area this warranty does not

cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.

WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with

5 YEAR LIMITED WARRANTY

11/16

DOWNROD MOUNT SERIES

.rekcitS AS C eht fo LAVOMER ro snoitcurtsni

2555 Rue Bernard

Lefebvre Laval, Quebec

H7C 0A5

PH: (450) 665-2535

FX: (450) 665-0910

2157 Parkedale Ave.,

Brockville, Ontario

K6V 5V6

PH: (613) 342-5424

FX: (613) 342-8437

Pg. #2 Pg. #13

- To r

- Mount

floor or

-DO

WARNING

educe the risk of fire or electrical shock, ONLY use model DCQ013

remote control for optional remote control adaptability.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT

AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.

with the lowest

- Used Batteries must be disposed of according to your local recycling regulations,

many retail outlets provide special battery recycling drop off boxes.

- Do not mix battery types or voltages to avoid personal injury and/or damage to the

fan and remote control.

moving parts at least Meters (7 Feet) above 2.10

grade level.

NOT operate reversing switch while fan blades are in motion.

- WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS, ENSURE THE FAN

LOWER COVER IS SECURELY ATTACHED ON THE FAN UPPER COVER BEFORE USE.

REMOTE CONTROL

①

②

Two 1.5V AAA Batteries

LED indicated light

ON/OFF the fan

③ ① ⑤ Speed of the fan ( low speed - high speed)

④ Timing control of the fan

Short press: ON/OFF the light

⑤

⑥ Direction of the fan (reverse switch)

⑦Long press(hold for 3 seconds): Dimming

⑧

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Any changes or modifications not expressly approved by the grantee

of this device could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

This device contains licence-exempt transmitter(s)/receiver(s)

that comply with Innovation, Science and Economic Development

Canada’s licence-exempt RSS(s). Operation is subject to the

following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference

that may cause undesired operation of the device.

Supplier's Declaration of Conformity

47 CFR § 2.1077 Compliance Information

Unique Identifier: CANARMNA

Responsible Party

CanarmInc.

808 Commerce Park Drive, Ogdensburg, New York, USA 13669

1-800-267-4427

SAFETY PRECAUTIONS

1. Turn off power at main electrical service box before starting installation

2. Electrical connections must comply with local code ordinances, national electrical

codes, CEC, NEC and ANSI/NFPA 70.

3. Make sure the installation site you choose allows the fan blades to rotate freely

without any obstructions.

4. When mounting the fan on a ceiling outlet box, Use an approved (CSA for Canada and

UL for U.S.) ceiling fan box marked " ". Ensure the outlet box is FOR FAN SUPPORT

securely installed in place such that it is able to support at least the fan weight.

5. WARNING: To reduce the risk of fire, electric shock, or other personal injury, mount

fan only on an outlet box or supporting system marked acceptable for fan support of

35 lbs (15,9 kg) or less and use the mounting screws provided with the outlet box.

Most outlet boxes commonly used for the support of lighting fixtures are not

acceptable for fan support and may need to be replaced. Consult a qualified

electrician if in doubt.

6. Total Fan Weight For Reference: 24"approximate 8.5 kgs(18.74lbs).

Pg. #12 Pg. #3

TROUBLESHOOTING

TROUBLE SUGGESTIONS

- Check fuses and circuit breakers.

1. Fan will not start - Check wiring connections to fan.

- Check wiring connections in switch housing.

CAUTION: Turn power off for last two items.

2. Fan sounds noisy - Check to make sure that all screws in motor housing are snug.

- Check to make sure that blade bracket screws are tight.

- Check to make sure that wire nut in switch housing

are not rattling against wall of switch housing.

- If fan has a light kit make sure switch housing

screws and set screws are tight.

- Some fan motors are sensitive to signals from solid

state variable controls. If solid state controller is

used, change to an alternative control. (See a

representative for a list of available controls.)

- Allow a 24 hour break in period to eliminate most noises.

3. Fan wobbles - Check that all blades are screwed firmly into blade brackets.

or shakes

excessively.

- Check that blade brackets are secured firmly to motor.

- Check distance from tip of blades to ceiling.

- Check distance between blade tip to blade tip. All

measurements should be equal. Loosen blade

screws and position blade until even then re-tighten.

- Check that the downrod hemisphere notch is engaged in canopy.

- Check to make sure that jam screws in downrod are tightened.

- Make sure canopy and mounting bracket are

tightened securely to wooden joist.

- Make sure warpage has not occurred in wooden

blades. If so, contact the customer service

department for replacement parts.

Fig.1

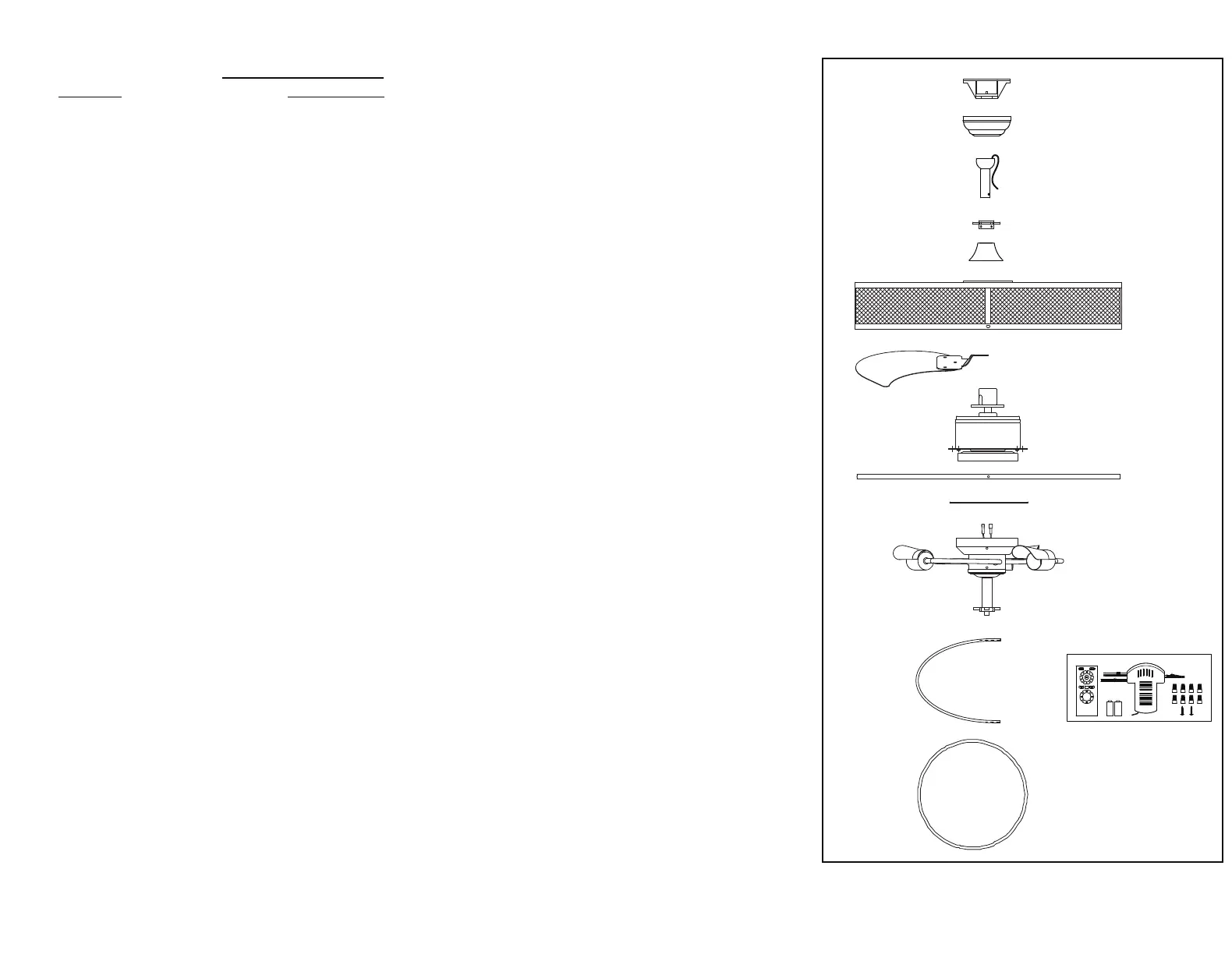

ASSEMBLY DRAWING

Mounting Bracket

Canopy

Downrod Assembly

Upper Connector

Yoke Cover

Fan Upper Cover

Fan Blade

Fan Motor Assembly

Fan Lower Cover

Retainer Ring

Light Kit

C Tube

Circle Ring

Remote Control
