AMW B-SERIES
OPERATOR MANUAL
INSTALLATION
START UP PROCEDURE
WATER CONNECTION
The National Sanitation Foundation requires the following for an NSF approved water hook-up:
• A quick disconnect water connection or enough coiled tubing so that the machine can be moved for cleaning underneath.
• An approved backflow prevention device, such as a double check valve to be installed between the machine and water supply.
A 1/4” male flare adapter is provided. Installation to a water filter system is recommended to prevent lime and scale build-up in the machine.
• Water pipe connections and fixtures directly connected to portable water supply shall be sized, installed and maintained in accordance with
federal, state and local codes.
• Flush the water line to purge any debris from the supply line.
Connect a 1/4” pressurized water line to the 1/4” male connection
(on rear of brewer) and turn the water supply on.
a) Minimum water pressure to the machine: 30 psi
b) Maximum water pressure to the machine: 80 psi
NOTE: Single head machines may be used without a pressurized water
supply. (See Pour-Over Mode section)
ELECTRICAL CONNECTION
NOTE: Wiring connections should be performed by a qualified technician.
(Refer to serial tag to verify model number of your machine)
• Remove front panel.
• Connect electrical service through rear of machine to terminal block
(inside front panel) marked L1, N, and L2. (See Figures A and B)
• On dual volt units, flip voltage switch (inside front panel next to terminal
block) to 120V for 120 Volt service or 240V for 120/208, or
120/240 Volt service. (See Figures A, B and table below)
• Re-install front panel.
• Turn on (plug-in) electrical service to brewer.
• Water tank will fill after a 7-second delay. The machine will make a
hissing sound when this occurs. On single head models, allow
approximately 1.5 minutes for the brewer to fill. On two head models, allow approximately five minutes for the brewer to fill.
NOTE: If water supply is inadequate or not connected, display will read “P-O” after 4 minutes of fill time (Refer to Pour-Over Mode
section). If Fill Cycle times out and display reads “P-O” before tank is full, turn unit OFF then ON again to reset and continue filling.
• The tank will begin heating slightly before machine fills.
• Turn brewer on by pressing ON/OFF switch in front of machine. (Light will illuminate)
• The brewer settings can be adjusted through the front touch pad. (Refer to Adjustments section)
• The water will be hot and the brewer will be ready to brew when “READY” light illuminates.
• Set Brew volume. (Refer to Setting Brew Volume section)
POWER REQUIREMENTS: (Refer to serial tag for voltage to be supplied.)

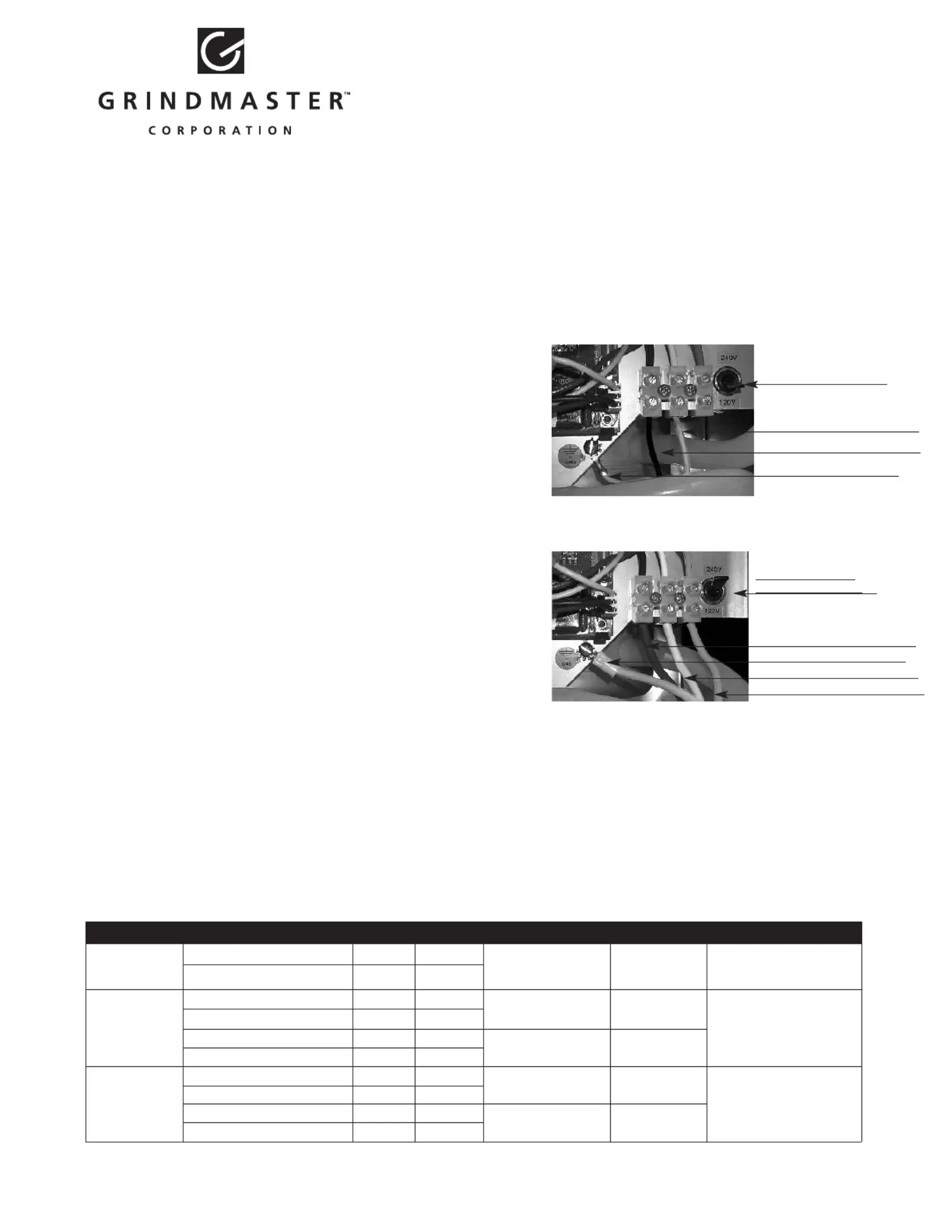

Figure A
Figure B
For 120V, 15A or 20A Service
(2 Wire + Ground)
For 120/208-240V, 20A Service
(3 Wire + Ground)
L1 N L2
L1 N L2
C N (N) MONNECT EUTRAL TO IDDLE
C H (L1) L SONNECT OT TO EFT IDE
C G SONNECT ROUND TO CREW
C H (L2) R SONNECT OT TO IGHT IDE
C N (N) MONNECT EUTRAL TO IDDLE
C H (L1) L SONNECT OT TO EFT IDE
C G SONNECT ROUND TO CREW
O D VN UAL OLT NITSU ,
FLIP WITCH TOS “120V”
ON UAL D VOLT UNITS,
FLIP SWITCH TO “240V”
Applied Volts Models Watts Amps NEMA Plug Cord AWG Connections
120
B-3, B-3WL, B-3WR 1800 15
5-15P, 5-20P for CUL 3X14
Hot to L1
Neutral to N
Ground to ground screw
B-SAP, B-ID 1780 14.9
120/208
B-3, B-3WL, B-3WR 2920 14.1 L14-20P 4X12 Hot to L1
Neutral to N
Hot to L2
Ground to ground screw
B-SAP, B-ID, B-DAP, B-DGP 2620 12.6
B-6 5110 24.6 L14-30P 4X10
B-DAP, B-DGP (30A) 4510 21.7
120/240
B-3, B-3WL, B-3WR 3800 15.9 L14-20P 4X12 Hot to L1
Neutral to N
Hot to L2
Ground to ground screw
B-SAP, B-ID, B-DAP, B -DGP 3500 14.6
B-6 6600 27.5 L14-30P 4X10
B-DAP, B-DGP (30A) 6000 25
FACTORY SETTINGS (for each dispense head)
• Tank temperature is set at 200 degrees F.
• Brew time is pre-set at 2:20. (Volume/time to be set on-site)
• Pulse Brew is set for 1 pulse, 20 sec on, 20 sec off.
• Warmer Energy Savings mode is set for 60-minutes. (“OFF” for models without warmers)
• Low Temp / No Brew option is set to “OFF” or disabled.
• Pour over setting override is set to “no” or plumb in.
• Settings lock-out jumper on controller is set in “unlock” position.
ADJUSTMENTS:
Refer to B-Series Programming Chart on page 5.
NOTE: Set each dispense head individually on two head models with two controllers and serial numbers A166225 and
lower (without a -P suffix). Tank temperature must be set to the same setting on both heads in order for the unit to
operate properly.
Tank Temperature:
Left display controls this.
• Press-and-hold both “up” and “down” arrows for 5 seconds.
• The display will indicate either “d F” or “d C”. (Fahrenheit or Celsius)
• Press up or down arrow to change from one scale to the other.
• Press “BREW” button to accept and proceed to the next setting.
• The display will read temperature value in the scale previously selected.
• Press up or down arrow to change temperature value.
• Press “BREW” button to accept and proceed to the next setting.
Brew Time:
• The display will read “br ”. (brew time)
• Press “BREW” button to proceed to the next setting.
• The display will read the set brew time in minutes and seconds. (ex: 2.20)
• Press up or down arrow to change time value.
• Press “BREW” button to accept and proceed to the next setting.
Pulse Brewing Mode:
• The display will read “P-b”. (pulse brew)
• Press “BREW” button to proceed to the next setting.
• The display will read “OFF” - “1”- ”6”.
• Press up or down arrow to change number of pulses.
• Press “BREW” button to proceed to the next setting.
• The display will read “0.05” - “0.30”.
• Press up or down arrow to change pulse-on time for each pulse in seconds.
• Press “BREW” button to proceed to next setting.
• The display will read “0.05” - “0.30”.
• Press up or down arrow to change pulse-off time for each pulse.
• Press “BREW” button to accept and proceed to the next setting.
Energy Savings Mode (Warmer shut-off):
• The display will read “E-S”. (energy savings)
• Press “BREW” button to proceed to the next setting.
• The display will read “Off” - “10” - “240” in multiples of 10.
• Press up or down arrow to change time value in minutes. Must be “OFF” for models without warmers.
• Press “BREW” button to accept and proceed to the next setting.
Low Temp/No Brew Mode:
• The display will read “Ltn” (Low Temp/No Brew).
• Press “BREW” button to proceed to the next setting.
• Press up or down arrow to change to “ON” or “OFF”.
• Press “BREW” to accept and proceed to the next setting.
Page 2 B-SERIES
B-SERIES Page 3
ADJUSTMENTS (cont.):
Refer to B-Series Programming Chart on page 5.
Pour-Over Mode
Left display controls this.
• The display will read “P-O” (pour-over).
• Press “BREW” button to proceed to the next setting.
• Press up or down arrow to change to “YES” or “NO”. Plumbed-in units must be set to “NO”.
• Press “BREW” button to accept and exit menu.
SETTING BREW VOLUME:
• Remove brew basket & spray head.
• Make sure “READY” light is on.
• Place empty server under exit nozzle to capture water.
• Press “BREW” button to fill water lines.
• Press “BREW” button again after approximately 10 seconds to stop water flow.
• Empty server then place under exit nozzle.
• Press-and-hold “BREW” button for 5 seconds until display reads “Pro”, then release.
• Press-and-release “BREW” button to initiate brew.
• The brew valve opens and the time begins to count up on display.
• Water will flow into decanter.
• When water level reaches desired amount, press-and-release “BREW” button again.
• Time value will flash in the display.
• Press-and-release “BREW” button within 10 seconds to set time.
• Reinstall spray head and brew basket.
• Repeat process for each brew head.
BREWING PROCEDURE:
• Place a new paper filter in the brew basket.
• Put desired amount of ground coffee in brew basket. (3.5 oz (100 grams) maximum)
• Place decanter or airpot under brew basket.
• Be sure lower warmer is on. (if available)
• Press “BREW” button to start brewing.
The “READY” light will flash for the entire brew cycle.
Water will dispense for the set time of brew, and light will flash after water is dispensed to denote “drip time”.
(ex.. Time set for 2:30, water is dispensed for 2:30, and light continues to flash for another 1:15 for total brew cycle of 3:45.)
Do not remove the brew basket while the “READY” light is blinking.
A stop function is added to the “BREW” switch. Pressing the “BREW” switch during a brew cycle will stop the brew. Coffee will need to be
emptied from brew basket and brew procedure will need to be started again.
After a brew cycle, the tank must reheat and the “READY” light must be lit before starting the next cycle. Reheat (recovery) time is dependent
on voltage applied and inlet water temperature.
Approximate reheat times for a 64 oz decanter are as follows:
120 Volt supply: 3-4 minutes; 120/208 Volt supply: 30-90 seconds; 120/240 Volt supply: 0 – 30 seconds
PULSE BREWING MODE:
• When mode is “ON” (number of pulses, pulse on, and pulse off time), and a brew cycle is initiated, water is dispensed for the ON time then
stops for the OFF time to define one pulse. This repeats for number of pulses programmed. After pulsing is finished, the water continues to
dispense for the remaining set time. During the pulse-off time, the water infuses the coffee and the bed rises to allow for better extraction.
• When mode is “OFF” and a brew cycle is initiated, water is dispensed continually for the entire set time without any delay.
ENERGY SAVINGS MODE (WARMER SHUT-OFF):
(ONLY FOR MODELS WITH WARMERS)
When set time has elapsed after a brew cycle, the lights above the warmer switches will flash and the warmers will automatically turn off. To
stop lights from flashing, press one of the warmer switches. To turn warmers back on, press corresponding warmer switch. The timer will reset
when a new brew cycle is initiated.
Refer to Adjustments section to adjust time values or simply disable mode. Time values may be adjusted from OFF to 10 minutes to 240
minutes in increments of 10 minutes.
