DIALOG® 20 and DIALOG® 10 USB
Wireless Microphone Systems
Antenna Installation Guide
www.ClearOne.com
2
Example of “A” and “B” antennas with antenna kit conguration.
The ClearOne DIALOG 20 and DIALOG 10 USB Wireless Microphone System
Receivers include two, built-in, passive antennas. When using a ClearOne DIALOG
20 or DIALOG 10 USB Antenna Cable Kit, the antennas can be extended to either
10’ or 25’ lengths in each direction easily accommodating most conferencing
requirements and room types. These Plenum rated antennas adhere to most
municiptle re codes, and therefore, they can be extended inside ceiling crawl
spaces for discreet installation. The available transmitters include: Boundary
tabletop, Gooseneck podium, Handheld and Beltpack.
®
DIALOG
®
20 and DIALOG
®
10 USB
_____________________________
3

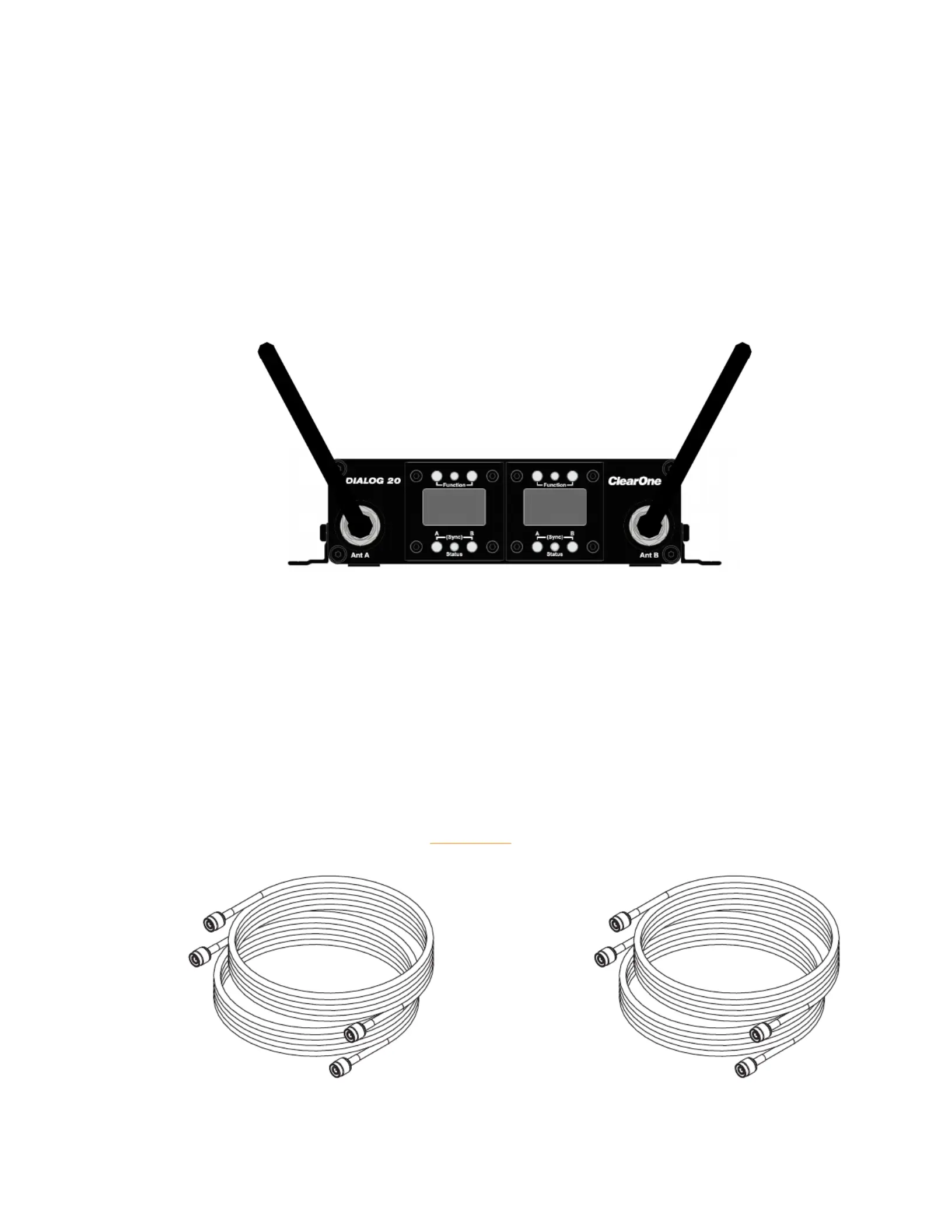

DIALOG 20 and DIALOG 10 USB Receivers come with two, Plenum rated,
dipole antennas.
Mount the antennas on the front of the receiver using a non-conductive adhesive
on the threads of the Female TNC Connector.
Tilt the antennas slightly outward.
DIALOG 20 and DIALOG 10 USB Antenna Cable Kits are available in two
lengths.
The DIALOG Antenna Cable kit can be used to extend the passive,
Plenum rated, dipole antennas that are included with the DIALOG 20 and
DIALOG 10 USB Receivers.
Receiver Mounted Antennas:
Antenna Cable Kits:
Choose either a 10’ (ft) or 25’ (ft) Antenna Cable Kit.
Includes required hardware. Does not include antennas or adhesive.
10’ (ft) length for small rooms
(RG58 Plenum Cable)
SKU: 910-6105-011
25’ (ft) length for large rooms
(RG8 Plenum Cable)
SKU: 910-6105-021
®
DIALOG
®
20 and DIALOG
®
10 USB
