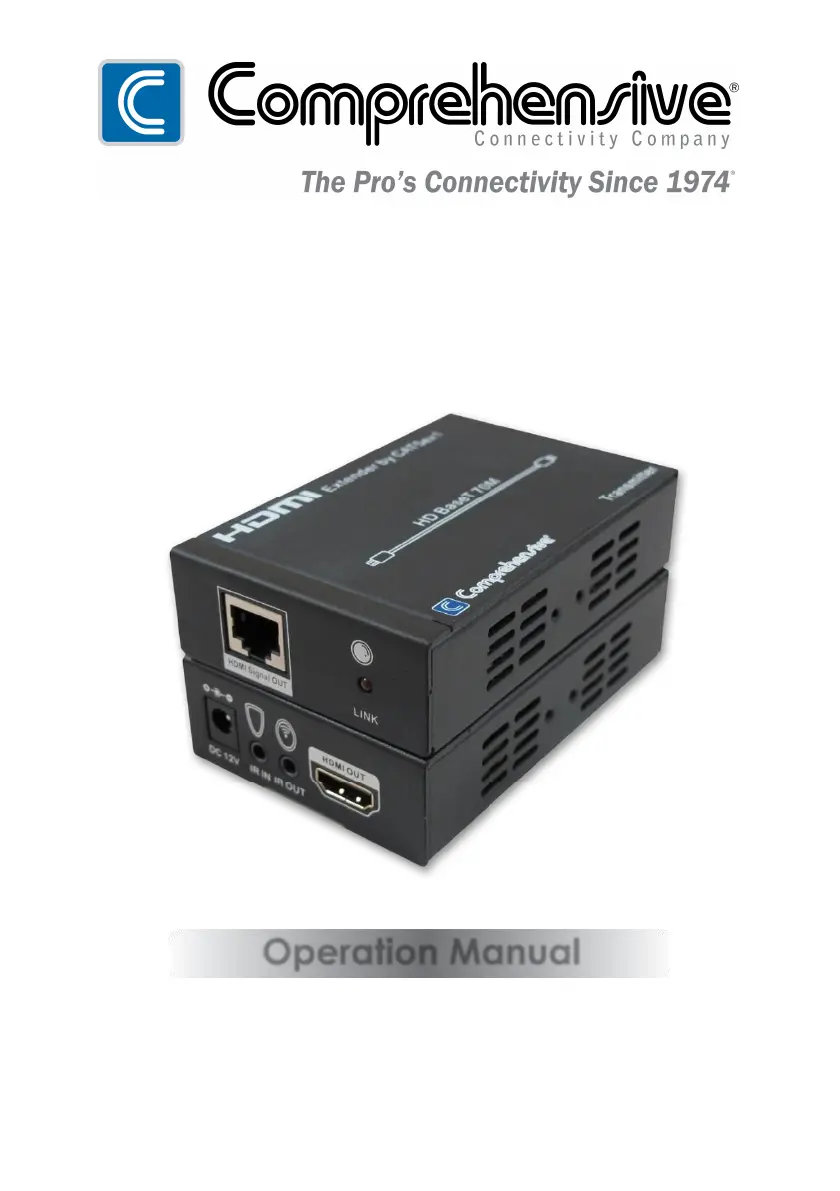

CHE-HDBT200
HDMI Extender over (HDBaseT)CAT5e/6/7
Operation Manual
I. Introducon
The HDMI Extender over cat5e/cat6 is a tool for extending your HDMI
signal over long distances to a compable display. It is designed to
convert HDMI signal to standard HDBaseT signal and transmit by
Internet cable. It also supports Transfer Bidireconal Infrared control
signal together with the HDMI signal, so you can control the Source in
the Sink side which is 230 feet outside, also you can control the Sink in
the Source side which is 230 feet outside using the HDMI Extender.
II. Features
One pair as a full funconal module, no need for setng.
POE (Power Over Ethernet) funcon support, either TX or RX powered
12V@2.5A,another device will no need power form the DC jack. POE
Power Consumpon less than 10W.
Use single UTP LAN cable (CAT-5E/6) to substute HDMI cable to
achieve long distance transmission.
UTP cable terminaon follows the standard of IEEE-568B.
Transmission distance:
70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit;
3D1080P@60Hz@36bit
4K x 2K@30Hz@24bit.
HDMI V1.4 supported.
HDCP compliant.
Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24
bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
Transfer Bidireconal Infrared control signal together with the HDMI
signal.
III. Package
HDMI Extender Transmier 1PC --------------------------------------------------
HDMI Extender Receiver ---------------- 1PC ---------------------------------------
IR Transmier ------------------------------ 2PCS ----------------------------------- --
IR Receiver ------------------------------ 2PCS -----------------------------------------
12V2.5A DC Power Supply adapter 1PCS ----------------------------------------
Operaon Manual -------------------------- -------------------- ------- ---------- 1PC
IV Specicaons .
Frequency Bandwidth: 2.97Gbps
HDMI Transmier Input/Output Ports: 1x HDMI Female port/1 x CAT6
HDMI Receiver Input/Output Ports: 1x HDMI Female port/1 x CAT, 1x
IR Transmier/1x IR Receiv
Power Supply: DC 12V 2.5A
ESD Protecon Human Body Model: ± 8kV (air-gap discharge), ± 4kV
(contact discharge)
Dimensions (mm): 65(W) X 100 (D) X 25 (H)
Weight: 200g x 2
Operang Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Operang Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Relave Humidity: 20 ~ 90% RH (Non-condensing)
Power Consumpon (Max): 20W
80 Lile Falls Rd, Faireld NJ 07004
Phone: 1-800-526-0242
www.comprehensiveco.com
sales@comprehensiveco.com
