Sida 1/11

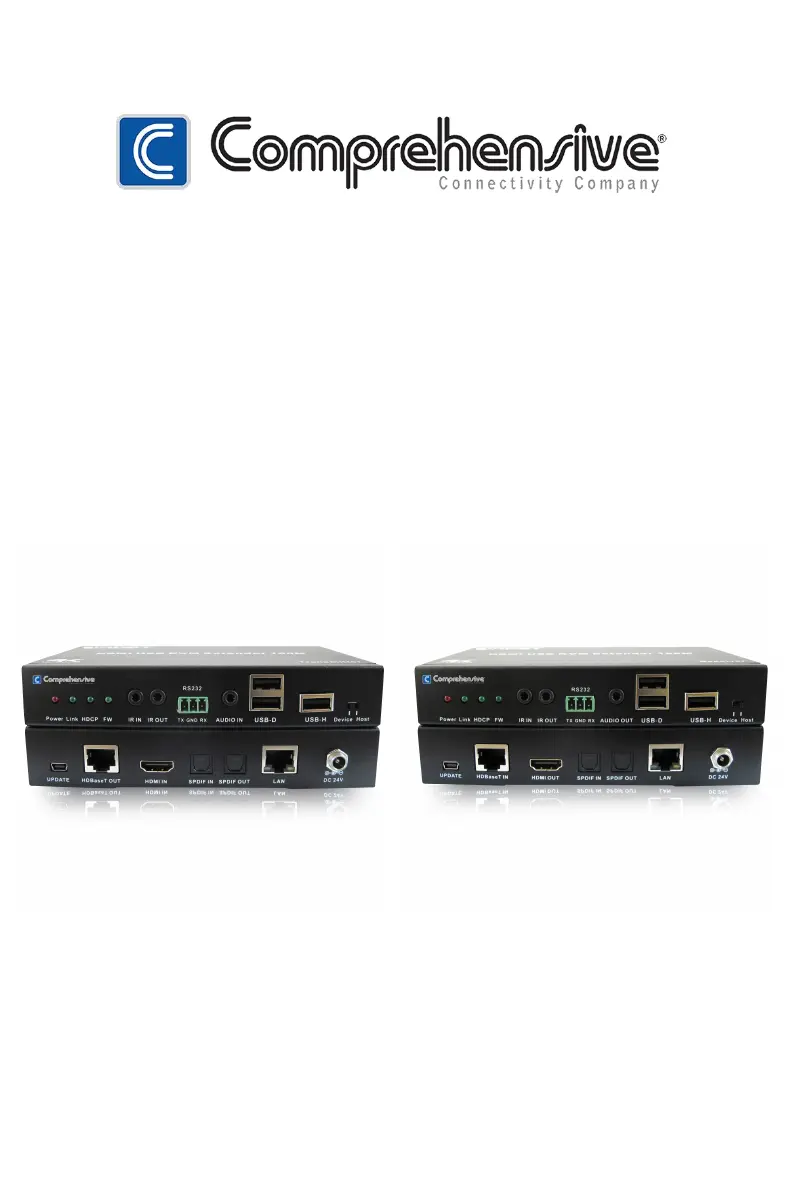

CHE-HDBT300U
HDBaseT 2.0 Extender
up to 330ft with USB -
Transmitter & Receiver
User manual
Ver1.1 Page 1
Thank you for purchasing this product. For optimum performance and
safety, please read t instruction carefully before connecting, operating he
or adjusting this product. Please keep the manual for future reference.
Cauon:

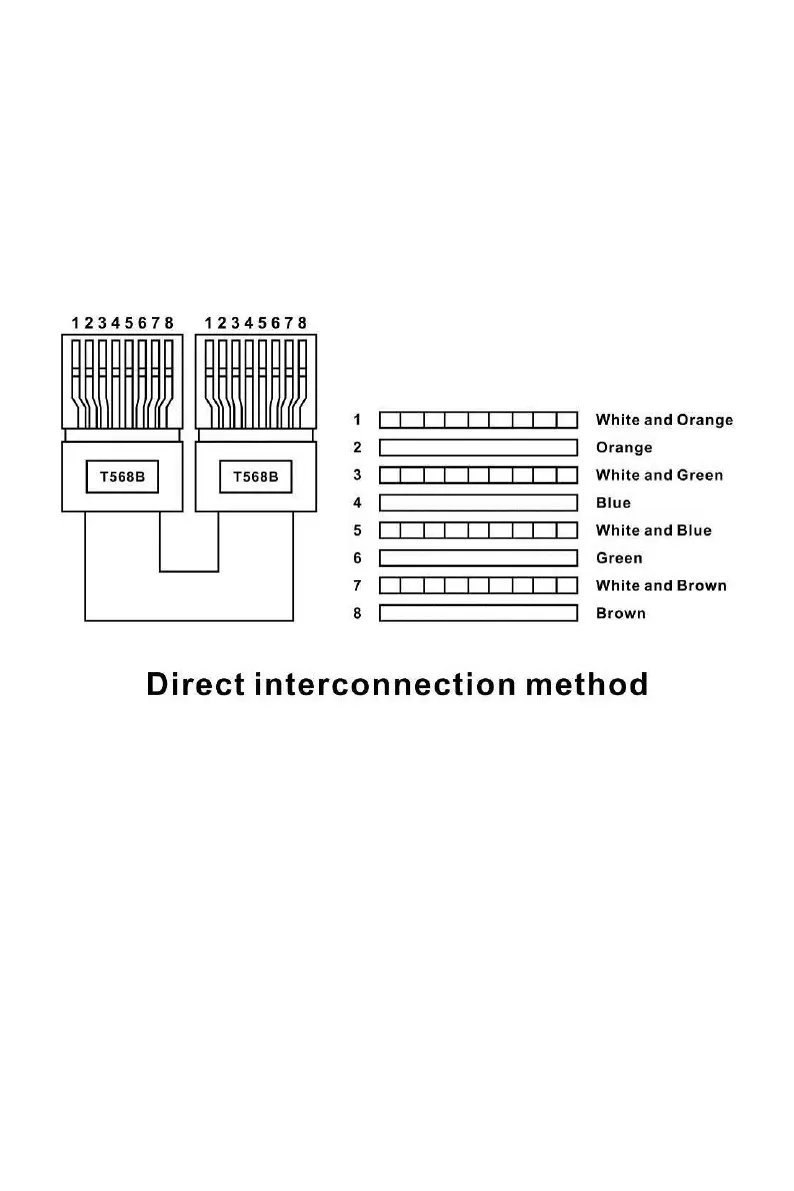

The extender using UTP cable termination follows the standard of
IEEE- . 568B
1. Introducon
The HDMI USB KVM (Keyboard, Video, Mouse) Extender is a tool which
can extend your HDMI signal over 328fts/100meters to a compatible
display. It is designed to convert HDMI signal to standard HDBaseT
signal which can be transmitt by CAT5e/CAT6/CAT7 cable. It also ed
supports Transfer Bidirectional Infrared control signal and RS232
control signal. With LAN serving connection and external digital and
analog audio capability that gives users the convenience of additional
audio connection. It also supports the connection of USB host and 2 USB
device ports. So you can control the Source in the Sink side which is
328fts outside, also you can control the Sink in the Source side which is
328fts outside using the HDMI Extender.
Ver1.1 Page 2
2. Features
1. Fully compliant with HDMI 1.4, and compatible with HDMI 2.0
(4K2K@60Hz with YCbCr 4:2:0 ).
2. HDCP2.2 and DVI compatible.
3. Supports HDBaseT 2.0 speciication over a single CAT5e/6/7 cable
up to 100m/328ft.
4. Supports pass-through of HD audio formats: LPCM2/5.1/7.1 CH,
Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio and more.
5. POE(Power Over Ethernet)function support, either TX or RX
powered 124V@ A,another don’t need power form the DC jack.
6. Full HD support: 1080p@60Hz@24/36/48bit/pixels.
7. Supports USB 2.0 control.
8. Supports external Bi-Directional SPDIF IN/OUT and available for
multichannel audio.
9. Supports stereo audio with PCM 2CH.
10. Transfer Bidirectional Infrared control signal together with the
HDMI signal.
11. Transfer Bidirectional RS232 control signal together with the HDMI
signal.
12. Transfer Bidirectional Ethernet signal together with the HDMI
signal.
3 Package.
1. HDMI USB KVM Extender Transmitter ----------------------------- 1PCS
2. HDMI USB KVM Extender Receiver --------------------------------- 1PCS
3. Wideband IR Tx --------------------------------------------------------- 2PCS
4. Wideband IR Rx --------------------------------------------------------- 2PCS
5. 24V/1A DC power adaptor ------------------------------ ------- 1PCS-- -- -----
6. Operation Manual ---------------- --------------------- 1PCS--------------- --
7. Phoenix male jack-------------------------------------------------------2PCS
8. Mounting ears- -----------------------------------------------------4PCS------
