CHE-HDBTWP110K

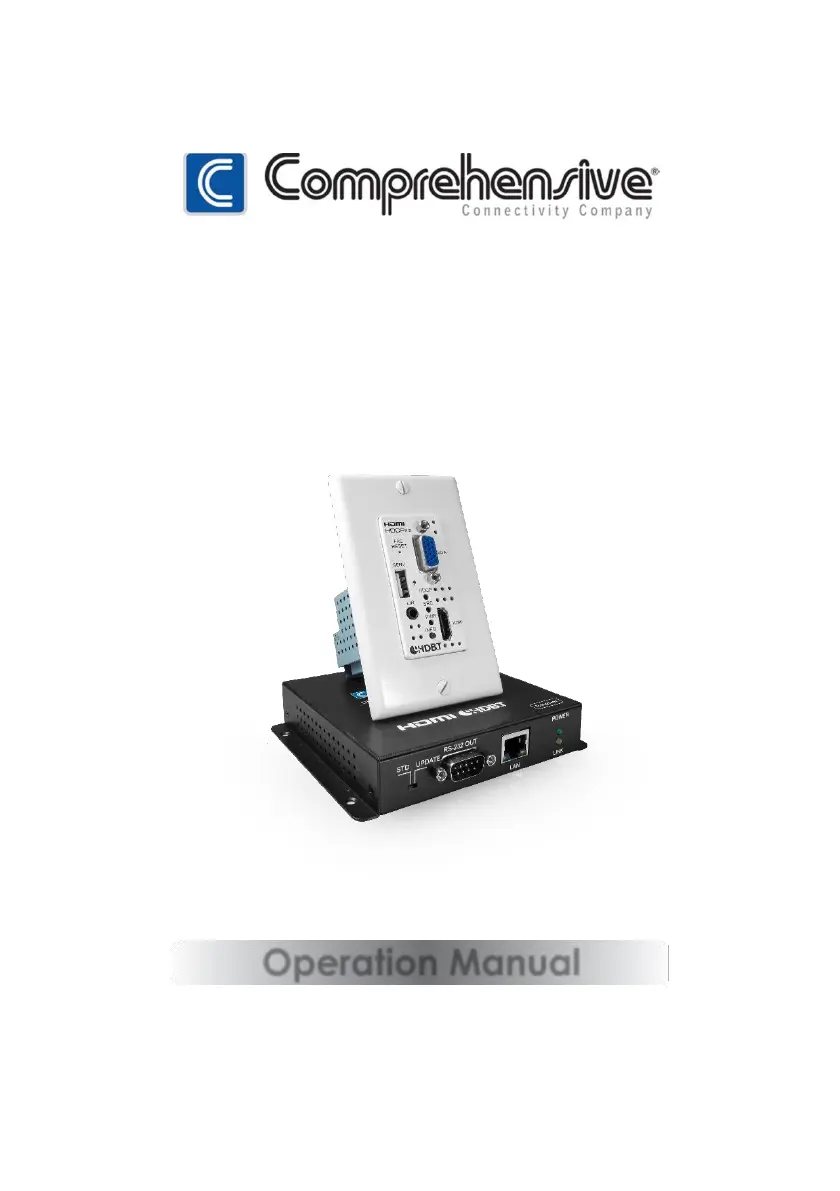

Pro AV/IT HDBaseT 4K60 18G Single Gang Wall Plate
Extender Kit with HDMI, VGA, Audio up to 230ft
Operation Manual
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install
this equipment:
•
Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
•
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
•
Never spill liquid of any kind on or into this product.
•
Never push an object of any kind into this product through
any openings or empty slots in the unit, as you may damage
parts inside the unit.
•
Do not attach the power supply cabling to building surfaces.
•
Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
•
Do not allow anything to rest on the power cabling or allow
any weight to be placed upon it or any person walk on it.
•
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow
for sufficient space for air to circulate around the unit.
•
Please completely disconnect the power when the unit is not
in use to avoid wasting electricity.
CONTENTS
1. Introduction ................................................... 1
2. Applications .................................................. 1
3. Package Contents ........................................ 2
4. System Requirements ................................... 2
5. Features ......................................................... 2
6. Operation Controls and Functions ................ 4
6.1 Front Panel ............................................. 4
6.2 Rear Panel ............................................. 5
6.3 WebGUI Control ................................... 6
6.3.1 Switch Tab 8..........................................
6.3.2 Automation Tab ............................... 10
6.3.3 EDID Settings Tab ............................. 12
6.3.4 System Settings Tab ......................... 14
6.4 -232 Control RS ..................................... 15
6.5 Telnet Control ...................................... 16
6.6 -232 and Telnet Commands RS ............... 17
7. Connection Diagram ................................. 31
8. Specifications .............................................. 32
8.1
Technical Specifications ................... 32
8.2
Video Specifications .......................... 33
8.3
Audio Specifications .......................... 34
8.4
Cable Specifications ......................... 34
8.5 HDBaseT Features ..................................... 35
9. Acronyms ...................................................... 36
