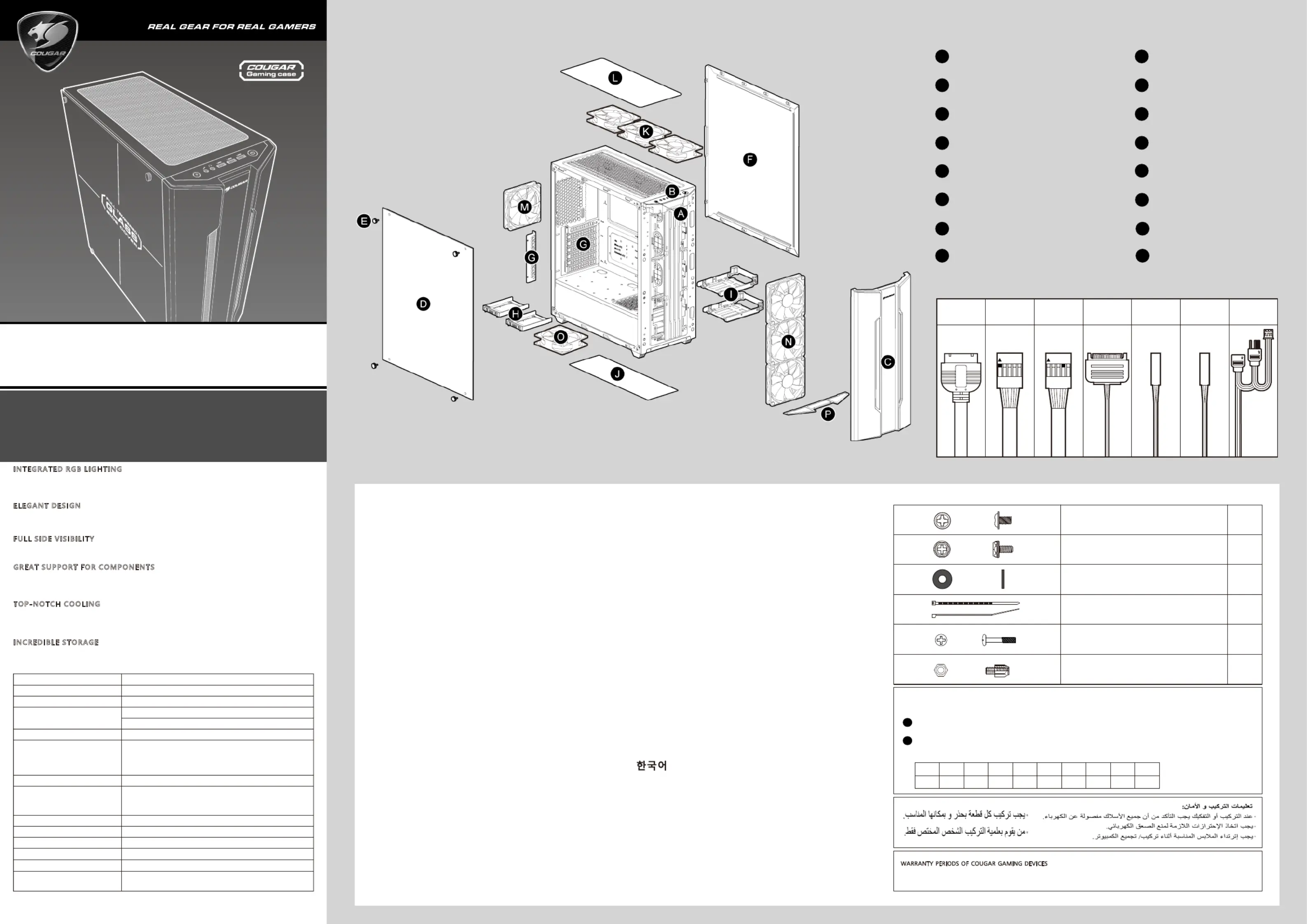

GEMINI S IS AN ADVANCED GAMING MID-TOWER CASE WITH A FULL-SIZED

TEMPERED GLASS COVER AND AN INTEGRATED RGB LIGHTING SYSTEM THAT

DELIVERS EVERYTHING A GAMER NEEDS.

I N T E G RA T E D R G B L I G H T I N G

Gemini S features COUGAR's exclusive Trelux integrated lighting system. This advanced design

allows it to display fourteen amazing lighting effects without installing any additional devices in

the case and control them through the integrated lighting button.

E L E G A N T D E S I G N

Gemini S' brushed metal-like front panel gives it a unique look that sets it apart from other compact

cases. This texture is also a great companion to the integrated lighting since the powerful lights

coming out of it benefit from the reflective surroundings that help reinforce the effects.

F U LL S I D E V I S I B I L I T Y

To help you appreciate your system's full beauty, a full-sized tempered glass side window will

allow you to contemplate your system's interior.

G R E A T S UP P O R T F O R C O M P O N E N T S

You won't believe how powerful a gaming beast you can build inside Gemini S. Its advanced

support for graphics cards (up to three 410mm-long graphics cards) will allow you to enjoy

the latest games with smooth framerates.

T O P - N O T C H CO O L I N G

Gemini S' compact layout allows you to install eight fans and three water cooling radiators,

with the front and top ones up to 360mm. This immense cooling potential will enable you

to choose freely the components you want in your build.

I N CR E D I B L E S T O R A G E

Up to two 3.5" HDDs and five 2.5" SSDs or seven 2.5" SSDs will provide you with all the storage

you need to install games and store all kinds of media.

Specifications might vary depending on the country or region of sale.

Expansion Slots

Max. Graphic Card Length

410mm / 16.14inch

Max. CPU Cooler Height m / 6.89inch175m

Standard ATX PS2PSU

200 (mm) / 7.9 (in)Max. PSU length

Mid Tower

Mini ITX / Micro ATX / ATX / CEB / E-ATX

210 (W) x 495 (H) x 463 (D)mm / 8.27 (W) x19.49 (H) x 18.23 (D)inch

2.5" : 5+2 (converted from 3.5" drive bays)

Fron 120mm x 3t :

To 120mm x p : 3 / 140mm x 2

Rear : 120mm x 1 (pre-installed)

PSU Cover : 120mm x 1 (for HDD Cooling)

3.5" : 2

USB3.0 x 2 , USB2.0 x 1 , Mic x 1, Audio x 1 , RGB Control Button

Dimensions

Rear : 120mm

Front : 360mm / 240mm / 120mm

Top : 360mm / 280mm / 240mm / 140mm / 120mmWater Cooling Radiator Support

Case Drive Bays

I/O Panel

Trelux Lighting with Addressable RGB LEDs and Dynamic Lighting

Effects in the Front Panel

Cooling Fan Support

Motherboard Type

Case Type

Maximum Number of Fans 8 Max.

Onboard Lighting System

Power button / RGB Control Button

Removable front panel

USB3.0 x 2 ,USB2.0 x 1 , Mic x 1, Audio x 1

FRight side cover

Thumb screws

DTempered glass side cover

Slot covers

G1 x 120mm fan on PSU Cover

for HDD Cooling (optional)

2.5" HDD/SSD trays

HAir filter on front cover

3.5”HDD trays

(compatible for 2.5”HDD/SSD)

Air filter on bottom cover

Air filter on top cover

120mm fan for rear panel

(pre-installed)

2 x 140 / 3 x 120mm fans

for top panel (optional)

3 x 120mm fans

for front panel (optional)

• Trelux RGB System with 5V RGB Motherboard Synchronization

• Support for Mini ITX / Micro ATX / ATX / E-ATX Motherboards

• Up to Three 410mm Graphics Cards

• Up to Eight Fans (1 Standard Fan Preinstalled)

• Up to Three Water Cooling Radiators (Up to 360mm)

• Support for Two 3.5" HDDs and Five 2.5" SSDs or Seven 2.5" SSDs.

ENGLISH

• Trelux-RGB-System mit 5-V-RGB-Motherboard-Synchronisierung

• Unterstützt Mini-ITX/Micro-ATX/ATX/E-ATX-Motherboards

• Bis zu drei 410-mm-Grafikkarten

• Bis zu acht Lüfter (1 Standardlüfter vorinstalliert)

• Bis zu drei Wasserkühlungsradiatoren (bis zu 360 mm)

• Unterstützt zwei 3,5 Zoll-Festplatten und fünf 2,5 Zoll-SSDs oder

sieben 2,5 Zoll-SSDs

DEUTSCH

• Sistema Trelux RGB con Sincronización para Motherboard RGB de 5V

• Soporte para Motherboards Mini ITX / Micro ATX / ATX / E-ATX

• Hasta tres Tarjetas Gráficas de 410mm

• Hasta ocho Ventiladores (1 ventilador estándar pre-instalado)

• Hasta tres Radiadores de Water Cooling (de hasta 360mm)

• Soporte para dos HDDs de 3.5” y cinco SSDs de 2.5” o siete SDDs de 2.5”

ESPAÑOL

• System Trelux RGB zsynchronizowany z płytą główną RGB 5V

• Obsługa płyt głównych Mini ITX / Micro ATX / ATX / E-ATX

• Maksymalnie trzy karty graficzne 410 mm

• Maksymalnie 8 wentylatorów (1 wentylator standardowy fabrycznie)

• Maksymalnie 3 radiatory chłodzenia wodnego (do 360 mm)

• Obsługa dwóch dysków twardych 3,5" i pięciu SSD 2,5" albo siedmiu SSD 2,5".

POLISH

• Trelux RGB rendszer 5 V-os RGB alaplap szinkronizálásával

• Támogatás Mini ITX / Micro ATX / ATX / E-ATX alaplapokhoz

• Max. három 410 mm-es grafikus kártya

• Max. nyolc ventilátor (1 szabványos ventilátor gyárilag telepítve van)

• Max. három vízhűtő radiátor (fent 360 mm-ig)

• Támogatás két 3,5"-os HDD-hez és öt 2,5"-os SSD-hez vagy hét 2,5"-os SSD-hez

HUNGARIAN

• Sistema Trelux RGB com Sincronização para Placa Mãe RGB de 5V

• Suporte para Placas Mães Mini ITX / Micro ATX / ATX / E-ATX

• Até três Placas de Vídeo de 410mm

• Até oito Ventoinhas (1 ventoinha padrão pré-instalada)

• Até três Radiadores de Water Cooling (Em cima até 360mm)

• Suporte para dois HDDs de 3.5” e cinco SSDs de 2.5” ou sete SDDs de 2.5”

PORTUGUÊS

РУССКИЙ

• Система Trelux RGB с 5-вольтовой синхронизацией подсветки с

материнской платой

• Поддержка материнских плат формата Mini-ITX / Micro ATX / ATX / E-ATX

• До трех 410-миллиметровых видеокарт

• До восемь вентиляторов (предустановлен 1 стандартный вентилятор)

• До трех водоохлаждающих радиаторов (до 360 мм)

• Поддержка двух 3.5-дюймовых жестких дисков и пяти 2.5-дюймовых

SSD накопителей или семи 2.5-дюймовых SSD накопителей.

• Système RVB Trelux avec synchronisation carte mère RVB 5 V

• Prise en charge de cartes mères Mini ITX / Micro ATX / ATX / E-ATX

• Jusqu'à trois cartes graphiques 410 mm

• Jusqu'à huit ventilateurs (1 ventilateur standard préinstallé)

• Jusqu'à trois radiateurs de refroidissement par eau (Haut jusqu'à 360 mm)

• Prise en charge de deux disques durs 3,5" et cinq SSD 2,5" ou sept

SSD 2,5".

FRANÇAIS

• Sistema Trelux RGB con sincronizzazione scheda madre RGB 5V

• Supporto per schede madri Mini ITX / Micro ATX / ATX / E-ATX

• Fino a tre schede grafiche da 410 mm

• Fino a otto ventole (1 ventola standard preinstallata)

• Fino a tre radiatori di raffreddamento ad acqua (360 mm)

• Supporto per due HDD da 3,5" e cinque SSD da 2,5" o sette SSD da 2,5".

ITALIANO

• Trelux RGB 5V系统支持主板灯效同步控制功能

• Mini ITX / Micro ATX / ATX / E-ATX支持主板

• 3 410mm 最高可安装组显卡

• 8 ( 1 )最高支持个风扇背板预装个风扇

• 3 ( 360mm )最高可安装个水冷散热器支持最大长度水冷排

• 2 3.5" HDD ( 2 2.5"SSD ) 5 2.5" SSD支持个硬盘可转换为个硬盘与个硬盘

中文

• ‘’Trelux RGB ‘’ 5V RGBシステムはのマザーボードの効果に同期します。

• Mini-ITX/ Micro-ATX/ ATX E-ATXとマザーボードに対応しています。

• 3 410mm最大つのグラフィックカードに対応できます。

• 8 1最大個のファンを装着できます。（個のファンをリアカバーにセットしている）

• 3 (つの水冷ラジエーターを装着可能です。 360mmの水冷ラジエーターを装着可能）

• 2 3.5 HDD( 2 2.5" SSDs) 5 2.5" SSDつのインチの或いはつのとつのを装着できます。

日本語

• 5V RGB 마더보드 동기화를 지원하는 Trelux RGB 시스템

• Mini ITX / Micro ATX / ATX / E-ATX 마더보드 지원

• 최대 3개의 410mm 그래픽 카드 장착 가능

• 최대 8개의 팬 설치 가능 (1개의 기본 팬 내장)

• 최대 3개의 수냉식 라디에이터(360mm)

• 3.5" HDD 2개와 2.5" SSD 5개 또는 2.5" SSD 7개 지원

한국어

год и месяц изготовления продукции указаны в серийном номере продукта.

(существует 2 способа определения даты изготовления, оба способа описаны ниже)

После S/N: первые две цифры означают год, вторые две – месяц изготовления.

Например, S/N: H 000001 означает, что товар был произведен в феврале 2017 года.1702

После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,

и означают год,

последующие две цифры – месяц изготовления.

Например, S/N: D REVI000001 означает, что товар был произведен в феврале 2017 года.AG02

●

Например,

AG = 17 = 2017 год

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

A B C D E F G H I J

1 2 3 4 5 6 8 9 07

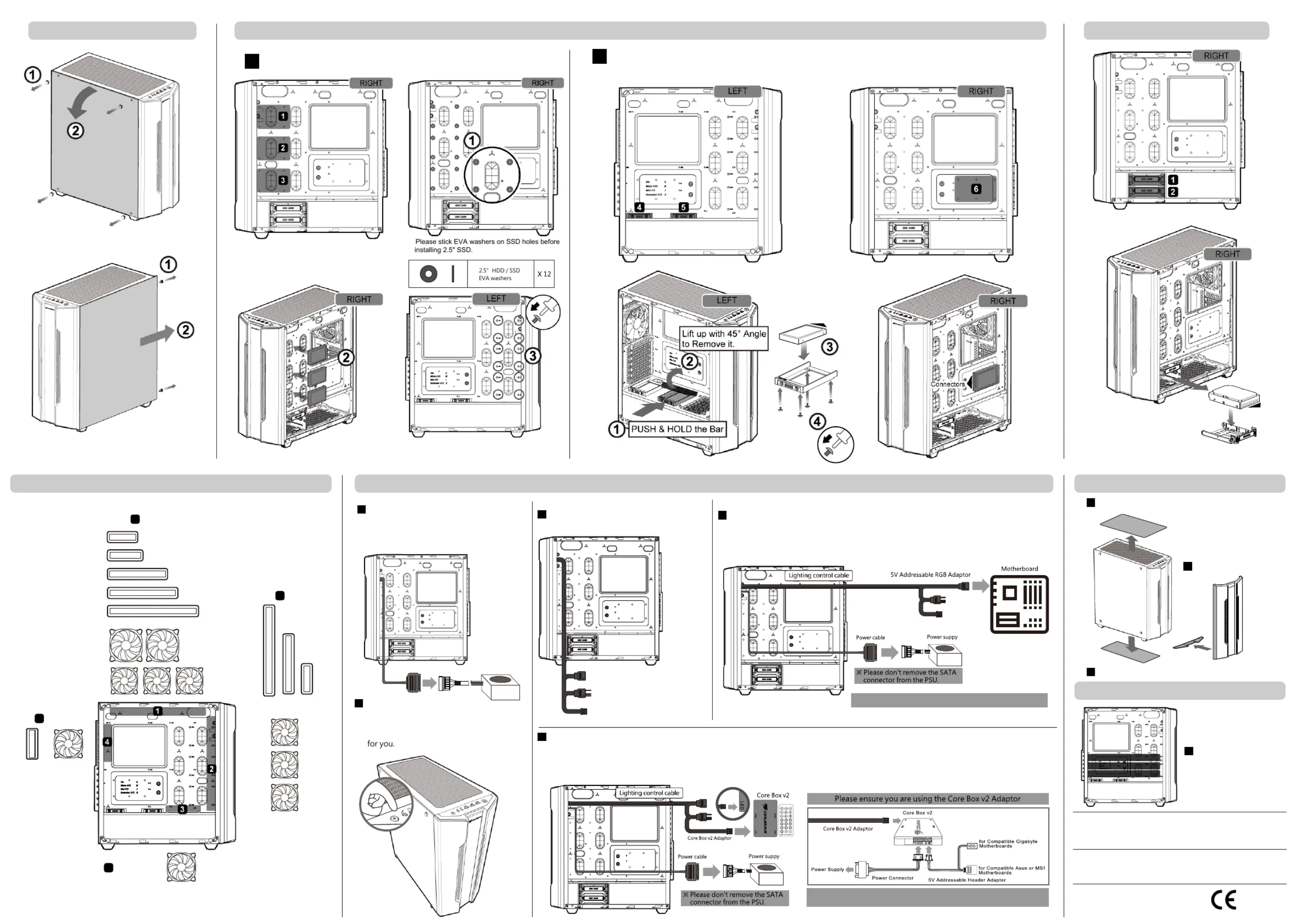

Installing the Front I/O Connectors

USB 3.0 HD AUDIO

HD AUDIO

POWER SW

USB3.0

USB 2.0

USB

H.D.D LED +

POWER POWER SW H.D.D LED LIGHTING

CONTROL

X 5

X 12

Power supply screws

2.5”HDD / SSD EVA washers

X 17Motherboard/SSD screws

Fan screws

(on PSU cover for HDD cooling) X4

X 5Cable ties

X 3Stand-off

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR GEMINI S

Warranty : 1 Year

*This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary.

*Only for electrical components

Gemini S's Trelux lighting system offers you several ways to control it:

Please connect the power cable of the I/O

panel to an appropriate SATA connector

from the PSU in order to use the case's

lighting functionality.

Second Mode: Motherboard Synchronization

Second, you can use the included adaptor (see picture below) to connect the Trelux

system to a compatible motherboard's 3-pin 5V Addressable RGB header and enjoy

system-wide RGB synchronization.

Lighting Control Cable Instructions

Third Mode: Core Box v2

You can also benefit from integrated control of Gemini S's Trelux lighting system, up to eight fans and two RGB LED Strips by connecting the case with

the included adaptor to a COUGAR Core Box v2 (sold separately). This control box will allow you to enjoy 100 different synchronized lighting effects in
