Sida 1/16

Washing Machine

W100FW / W120FW / W120VW

Retention of this Instruction Book

Keep this book in a handy place for reference. It contains important details on

the safe and proper use of your appliance. If you sell the appliance, pass it on

to someone else, move house and leave it behind, make sure that you provide

this book so that the new owner can become familiar with the appliance and

safety warnings.

Please remember your new appliance is a complex piece of equipment.

DIY repairs or unqualified and untrained service people may put you in

danger, could damage the appliance and might mean you lose cover

under Creda’s Part Guarantee.

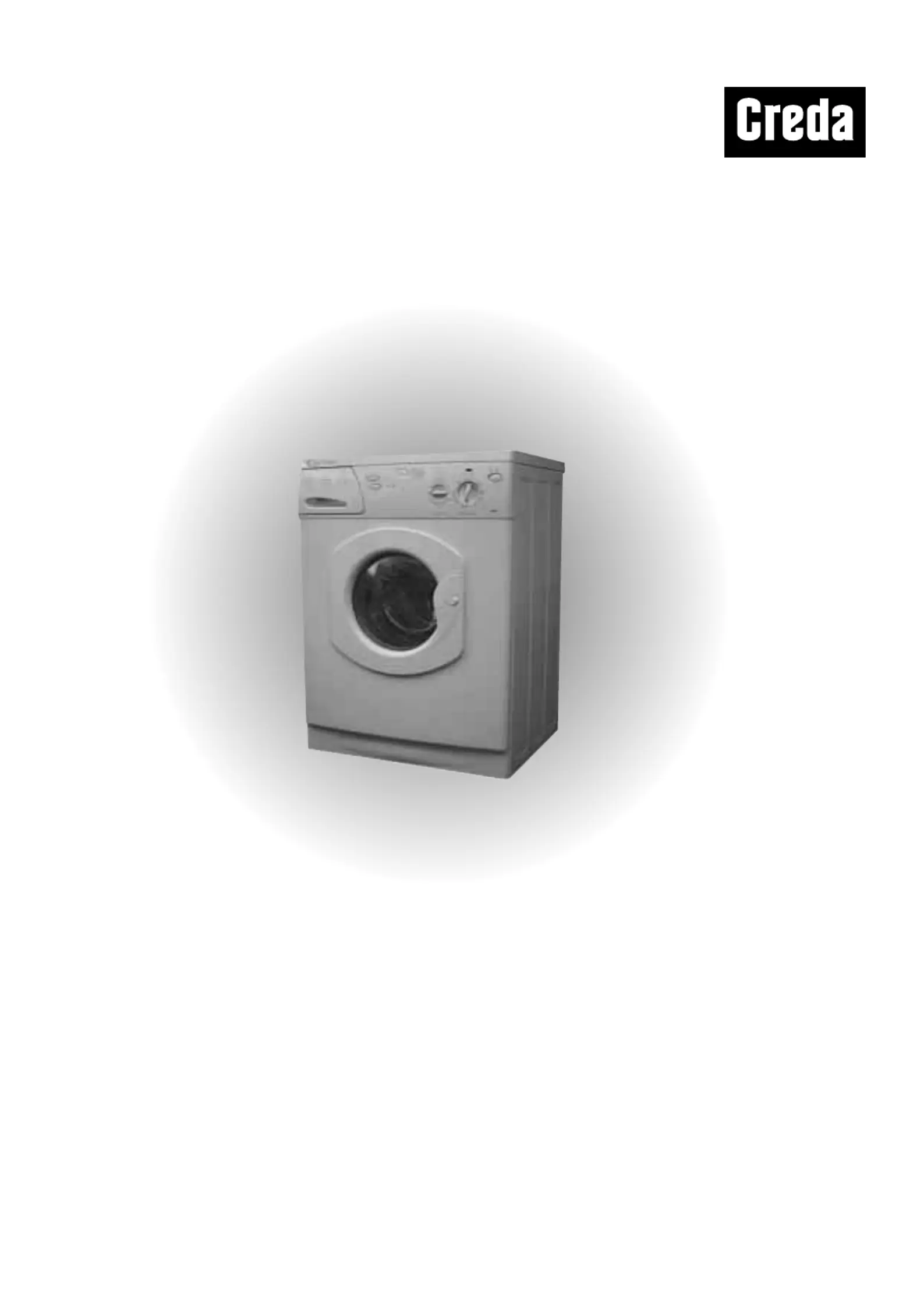

Model W120VW is shown

Positioning & Adjusting the feet

Choosing the position of your appliance will influence its performance.

★Position where possible on a solid floor. Some vibration may occur with a wooden floor.

★Take care with vinyl floor coverings.The weight of the appliance may cause indentations in

some vinyl floor coverings.

★For your safety and to comply with IEE regulations, you should not install your appliance in

a bath or shower room. Seek professional advice if you wish to do so.

★Ensure sufficient space is allowed for the appliance. Dimensions should be a minimum of:-

600mm Wide (235/8”), 600mm Deep (235/8”) and 900mm High (351/2”).

★Ensure the electrical socket and water taps are easily accessible and that the water supply

can be isolated if necessary.

Your appliance may become noisy or move about the floor if it is not stabilised.

To adjust your appliance it must be in an upright position, then :-

★Release locking rings on the two front feet.

★Screw feet in or out until the appliance is standing firm and level.

★Ensure all feet are in firm contact with the floor.

★Tighten the locking rings on the front feet.

Dear Customer,

Congratulations on the purchase of your

new ‘Creda’ appliance.

We recommend for your own safety and to

get the best possible results from your

machine that you read through this

handbook thoroughly before using your

appliance for the first time.

★Transit Brackets MUST be removed

before using the appliance.

★DO NOT plug in and switch on at the

mains until installation is complete.

Recycling & Disposal Information

As part of Creda’s continued commitment to helping the environ-

ment, Creda may use quality recycled components to keep down

customer costs and minimise material wastage. Please dispose of

packaging and old appliances carefully. To minimise risk of injury to

children, remove the door, plug and cut mains cable off flush with the

appliance. Dispose of seperately to ensure that the appliance can no

longer be plugged into a mains socket.

Electrical Requirements

This appliance should be connected to the mains supply via a suitable switched socket in an

accessible position.

WARNING: This appliance must be earthed.

FUSES

Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the fuse, only

those rated at 13A and ASTA approved to BS1362 should be used.To change fuse, lift holder

to vertical position and lift fuse out. To replace, insert fuse and push fuse holder down into

locked position. Correct replacement is identified by colour coding, or marking on base of

plug.

WARNING: Do not use plug unless fuse holder is in locked position.

CHANGING THE PLUG

Cut off and dispose of the supplied

plug if it does not fit your socket.

WARNING: To avoid a shock haz-

ard do not insert this plug into a

socket anywhere else.

IMPORTANT: WIRES IN THE MAINS

LEAD ARE COLOURED IN

ACCORDANCE WITH THE

FOLLOWING CODE:

Green/Yellow – Earth

Blue – Neutral

Brown – Live

If you change the plug, the colour of wires in the mains lead may not correspond with the

colour of the markings identifying terminals in the plug.You should therefore wire it as

shown (see illustration). If the mains lead needs to be replaced at any time, it should be

replaced by a special lead obtainable from your local authorised Creda Service Centre.

A charge will be made if you have damaged the existing lead or require a longer one.

It is strongly advised that this work is carried out by a qualified electrician.

CE marking certifies that this appliance complies with requirements laid down in EEC

Directive 89:336 (Electromagnetic compatibility) and subsequent modifications and Low

Voltage Directive 73/23/EEC.

Green and yellow

(Earth) wire to the

terminal marked

‘E’or with the

symbol ,

or coloured

green and

yellow.

Brown (Live)

wire to the

terminal

marked ‘L’ or

coloured

red.

Blue (Neutral) wire

to the terminal marked

‘N’or coloured black.

Cord clamp

13A ASTA

approved

fuse to

BS1362.

Contents

Electrical requirements 2

Recycling & Disposal Information

Choosing a Location

Adjusting the Feet

Installation Instructions 3-4

Transit Bracket Removal

Connecting to the Water Supply

Removing the Polystyrene Pyramid

Connecting to a Drainage System

Getting to Know your Machine 5

Wash Load Guides

Interlocking Door System

Washcare tips

A Typical Wash Programme 6

Controls 7

Choosing A Wash Programme 8

Optional Wash Features 9

Dispenser Drawer 10-11

Care and Cleaning 12

Maintenance Wash

Regular Checks and Stain Removal 13

Something wrong with your appliance 14

Service Cover 15

Key Contact Numbers Back page

Hot and Cold Fill Connection

1. Connect the straight end of the supplied RED or GREY hose to

the HOT water supply tap (Fig 1). Connect the straight end of

the supplied BLUE hose to the COLD water supply tap.

2. Hand tighten connectors sufficiently to ensure water does not

leak from the hose connections.

3. Before connecting each of the hoses to the appliance, confirm

the water supply is flowing by holding the free end of each

hose in a bucket, turn the relevant water supply taps on and

then off.

4. Connect the angled end of the RED or GREY hose to the white

plastic inlet valve marked ‘H’ (Fig 2) and the angled end of the

BLUE hose to the white plastic inlet valve marked ‘C’ at the back

of the appliance.

5. Hand tighten connectors sufficiently to ensure water does not

leak from the hose connections.

6. Turn on the water supply taps and check for leaks from the connectors. In the event

of a leak, turn off supply tap, remove connector and check that the sealing washer is

in place. Refit the connector and tighten. Turn on water supply taps.

Cold Fill Only Connection

A Cold Fill Adaptor is available from your local Creda authorised Service

Centre.

1. Connect angled end of supplied hoses to hot and cold inlets

at the back of appliance

2. Connect straight end of hoses to cold fill adaptor.

3. Connect adaptor to cold water supply.

NOTE: Hand tighten sufficiently to ensure water is not leaking from

the tap hose connections.

Fill Hoses

Ensure the supplied hoses are not kinked when connected.

2m long extension fill hoses are available from your local retailer

or Genuine Parts and Accessories UK 08709 077 077.

Water Pressure

Incoming hot and cold water pressure should be between 3 and 150

psi (21 - 1034 Kpa).

The temperature of the incoming household hot water supply should ideally be 60°C and

no higher than 70°C as this could cause damage to both your laundry and appliance.

Methods of Plumbing

The water supply taps must be easily accessible when the appliance is installed. Your

taps should be in good condition or it may leak when turned full on.Mixer taps are

unsuitable, if you have them you will need to use permanent plumbing. Adaptors are

required to connect to sink taps.

Permanent Plumbing

There must be taps or stopcocks so that the water supply can be turned off, isolating

the appliance from the household supply.

Existing Plumbing

If you have an existing installation please check that this includes taps or stopcocks to

isolate the appliance. The appliance must be connected to the water supply using

the new hose set supplied, old hose sets should not be used.

4. Remove 2

screws and

transit

bracket.

Retain for

future use.

3. Remove

1 screw and

clamp.

Retain for

future use.

Transit Bracket

Removal

Connecting to the Water Supply

5. Slide and

push work

top lid into

position

ensuring it

is located

on the

console

correctly.

2. From the

rear of

appliance,

grip the

sides of the

work top

lid, lift, slide

and pull

towards

you to

remove.

1. Remove

the 3

screws from

back of

work top

lid.

6. Replace

the 3

screws into

the back of

the work

top lid.

Inlet to machine

Cold

Water

Supply

After removing the packaging from the machine, ensure that the polystyrene pyramid

(shown at the side) has come away from the underside of the machine, with the

polystyrene base.

If it has not come away, remove it by tilting the machine backwards until the pyramid can

be seen and then remove.

Removing the Polystyrene Pyramid

Inlet to machine

Cold Water Supply

Fig. 3

Fig 2

Fig 1

Fig. 4
